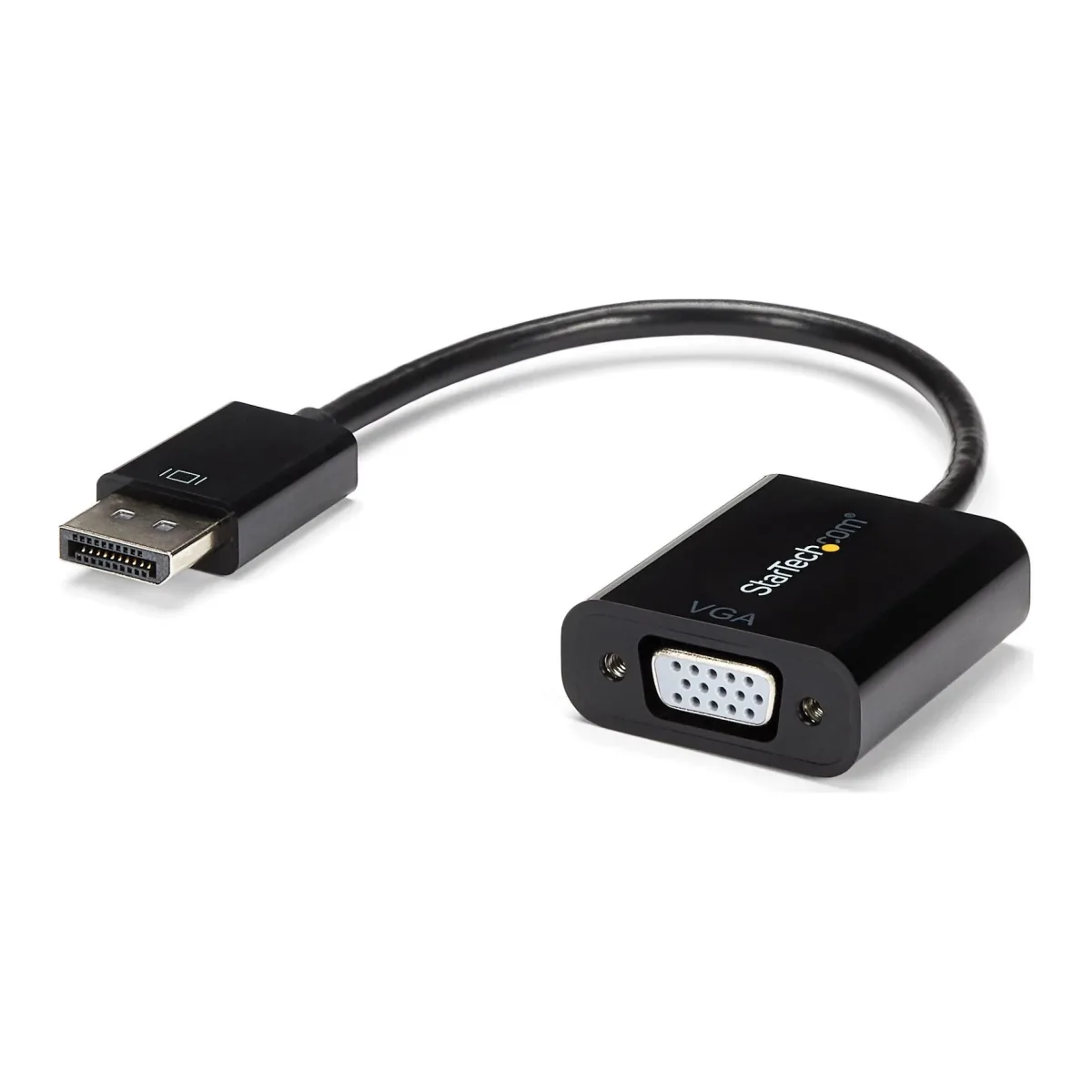

StarTech DisplayPort To VGA Video Adapter Converter - Active - 1080p - DP to VGA Converter (DP2VGA2)

Description

StarTech.com DisplayPort to VGA Video Adapter Converter - Connect a VGA monitor to a DisplayPort-equipped PC - Works with DisplayPort computers and graphics cards such as Elitebook Revolve 810 G3 and Folio 1040 G2 - Works with VGA monitors projectors & televisions - Resolutions up to 1920x1200 - DisplayPort to VGA adapter / DP to VGA dongle / DisplayPort to VGA converter - Connect a VGA display to your DisplayPort computer - Connect your BYOD computer with VGA to a DVI boardroom display

Specifications

Features

Connector 1 form factor	Straight
Connector 2 form factor	Straight
Cable length	0.225 m
Connector 1	DisplayPort
Connector 2	VGA (D-Sub)
Connector 1 gender	Male
Connector 2 gender	Female
Maximum resolution	2048 x 1280 pixels
Supported graphics resolutions	1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA), 2048 x 1280
Supported video modes	1080p
Maximum refresh rate	60 Hz
Product colour	Black
Converter type	Active video converter
Country of origin	Canada

Operational conditions

Operating temperature (T-T)	0 - 45 °C
Storage temperature (T-T)	-10 - 80 °C
Operating relative humidity (H-H)	10 - 85%

Certificates

Compliance certificates	CE, RoHS

Weight & dimensions

Weight	43 g
Width	31.8 mm
Depth	279 mm
Height	19 mm

Packaging data

Package width	200 mm
Package depth	220 mm
Package height	21 mm
Package weight	52 g

Logistics data

Harmonized System (HS) code	84733080
Master (outer) case width	330 mm
Master (outer) case length	515 mm
Master (outer) case height	214 mm
Products per master (outer) case	140 pc(s)
