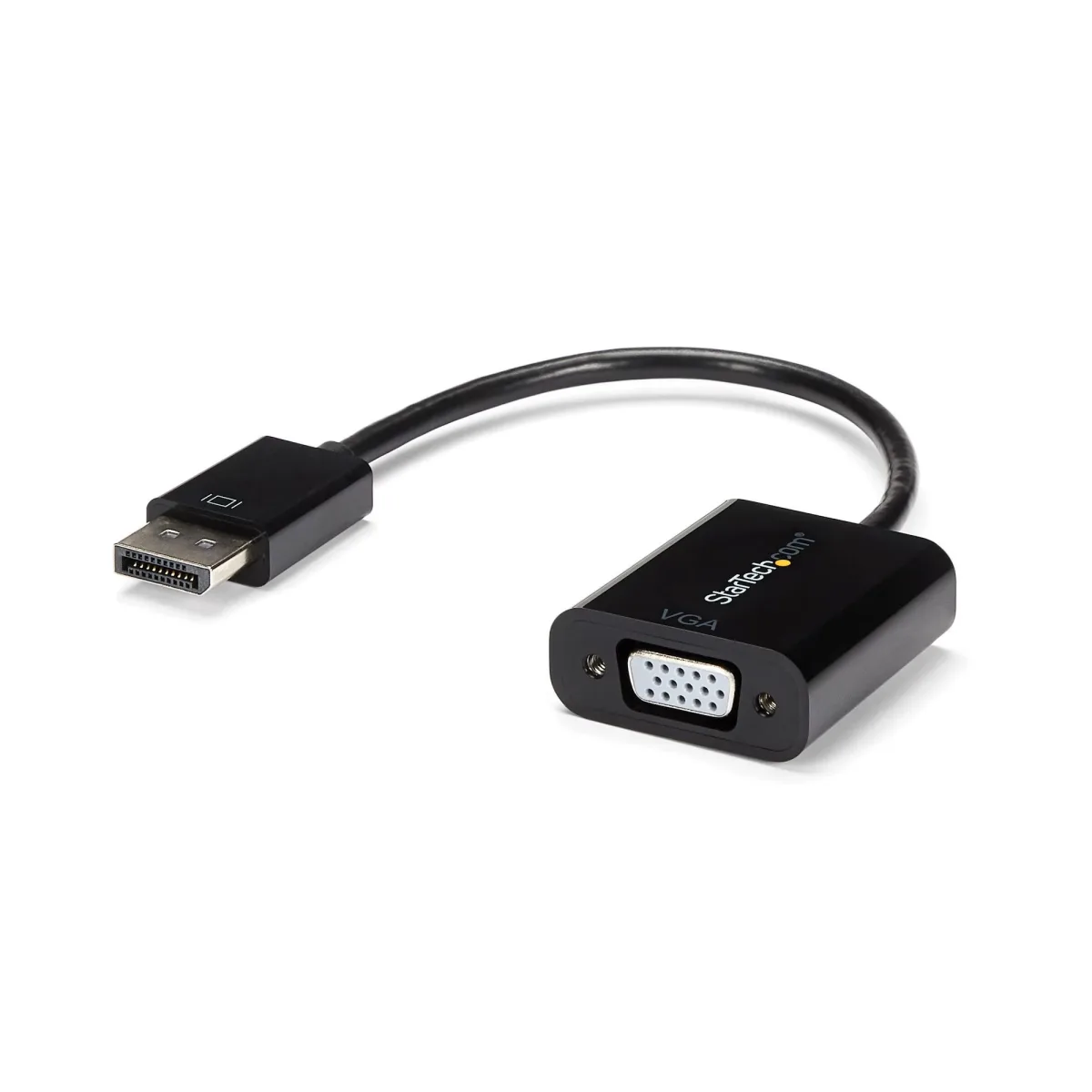

StarTech DisplayPort to VGA Display Adapter - 1080p 1920x1200 - Active DP to VGA (Male to Female) HD Video Converter for laptop/PC/Monitor (DP2VGA3)

Description

StarTech.com DisplayPort to VGA Adapter, Active DP to VGA Converter, 1080p Video, DP to VGA Adapter Dongle (Digital to Analog), DP 1.2 - Active DisplayPort to VGA adapter connects VGA monitor 2048x1280/1920x1200/1080p 60Hz; DP 1.2 HBR2; EDID/DDC - DP to VGA adapter for DP/DP++ source w/standard DP connector - Sleek DP to VGA video converter w/non-latching DP connector - OS independent

Overview

Startech DISPLAYPORT TO VGA ADAPTER DP is listed under manufacturer code DP2VGA3. It sits within the Monitor Cables category. DCS Components can help source this item as part of a quote-led procurement request.

Key product details

• Manufacturer code: DP2VGA3
• Category: Monitor Cables
• EAN: 0065030848701

Procurement and setup support

DCS can help with procurement, compatibility checks, configuration planning, deployment support and long-term managed IT lifecycle support.

Specifications

Features

Connector 1 form factor	Straight
Connector 2 form factor	Straight
Cable length	0.1 m
Connector 1	DisplayPort
Connector 2	VGA (D-Sub)
Connector 1 gender	Male
Connector 2 gender	Female
DisplayPort version	1.2
Maximum resolution	2048 x 1152 pixels
Supported graphics resolutions	1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA), 2048 x 1152
Supported video modes	720p, 1080p
Product colour	Black
Chipset	Analogic ANX9833
Plug and Play	Yes
Converter type	Active video converter
Country of origin	China

Operational conditions

Operating temperature (T-T)	0 - 45 °C
Storage temperature (T-T)	-10 - 70 °C
Operating relative humidity (H-H)	10 - 85%
Storage relative humidity (H-H)	10 - 85%

Certificates

Compliance certificates	CE, RoHS
Certification	CE, FCC, RoHS

Weight & dimensions

Weight	32 g
Width	37 mm
Depth	230 mm
Height	14 mm

Packaging data

Package width	200 mm
Package depth	220 mm
Package height	18 mm
Package weight	41 g

Logistics data

Harmonized System (HS) code	84733080
Master (outer) case width	330 mm
Master (outer) case length	502 mm
Master (outer) case height	210 mm
Products per master (outer) case	150 pc(s)
