Manufacturer Code: DUAL-M2-PCIE-CARD-B
Overview

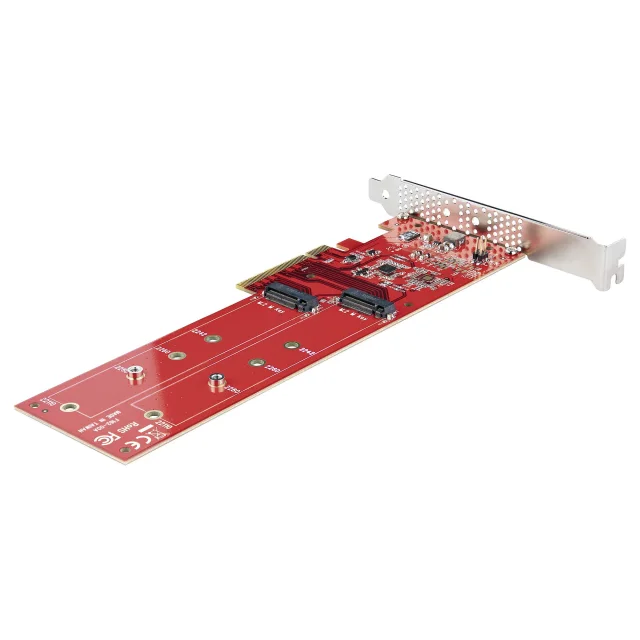

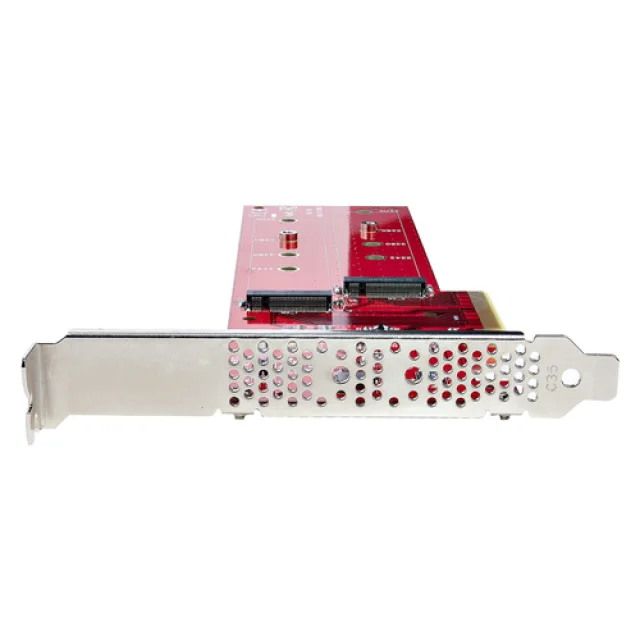

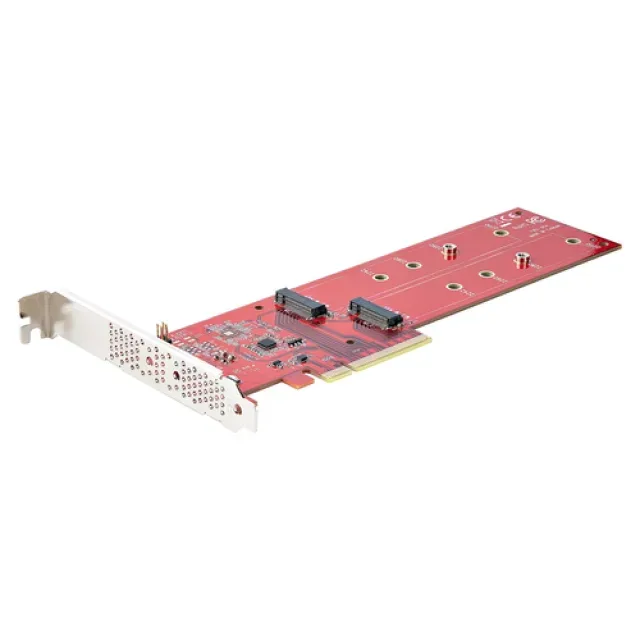

Startech Dual M.2 PCIe SSD Adapter Card, x8 / x16 Dual NVMe or AHCI M.2 SSD to PCI Express 4.0, Up to 7.8GBps/Drive, For 2242/2260/2280/22110mm PCIe M-Key M2 SSDs, Bifurcation Required - PC/Linux Compatible (DUAL-M2-PCIE-CARD-B) - Interface adapter - M.2 is available through DCS Components. It sits within the Storage Accessories category.
Key product details
Procurement and setup support
Available for quote while live availability remains in stock. DCS can help with procurement, compatibility checks, configuration planning, installation support and long-term managed IT lifecycle support.
EAN: 0065030895620
| Host interface | PCIe |
|---|---|
| Output interface | M.2 |
| Expansion card standard | PCIe 4.0 |
| Internal | Yes |
|---|---|
| Product colour | Red |
| LED indicators | Yes |
| Mean time between failures (MTBF) | 6493014 h |
| Hot-swap | No |
| Data transfer rate (max) | 7.8 Gbit/s |
|---|
| Operating temperature (T-T) | -40 - 80 °C |
|---|---|
| Storage temperature (T-T) | -40 - 85 °C |
| Operating relative humidity (H-H) | 15 - 90% |
| Windows operating systems supported | Yes |
|---|---|
| Linux operating systems supported | Yes |
| Supported storage drive heights | 22 mm |
| Width | 102 mm |
|---|---|
| Depth | 228 mm |
| Height | 22 mm |
| Weight | 74 g |
| Mounting brackets included | Yes |
|---|---|
| Screws included | Yes |
| Quick installation guide | Yes |
| Package width | 170 mm |
| Package depth | 290 mm |
| Package height | 30 mm |
| Package weight | 192 g |
| Products per master (outer) case | 30 pc(s) |
|---|---|
| Master (outer) case width | 380 mm |
| Master (outer) case length | 500 mm |
| Master (outer) case height | 310 mm |
