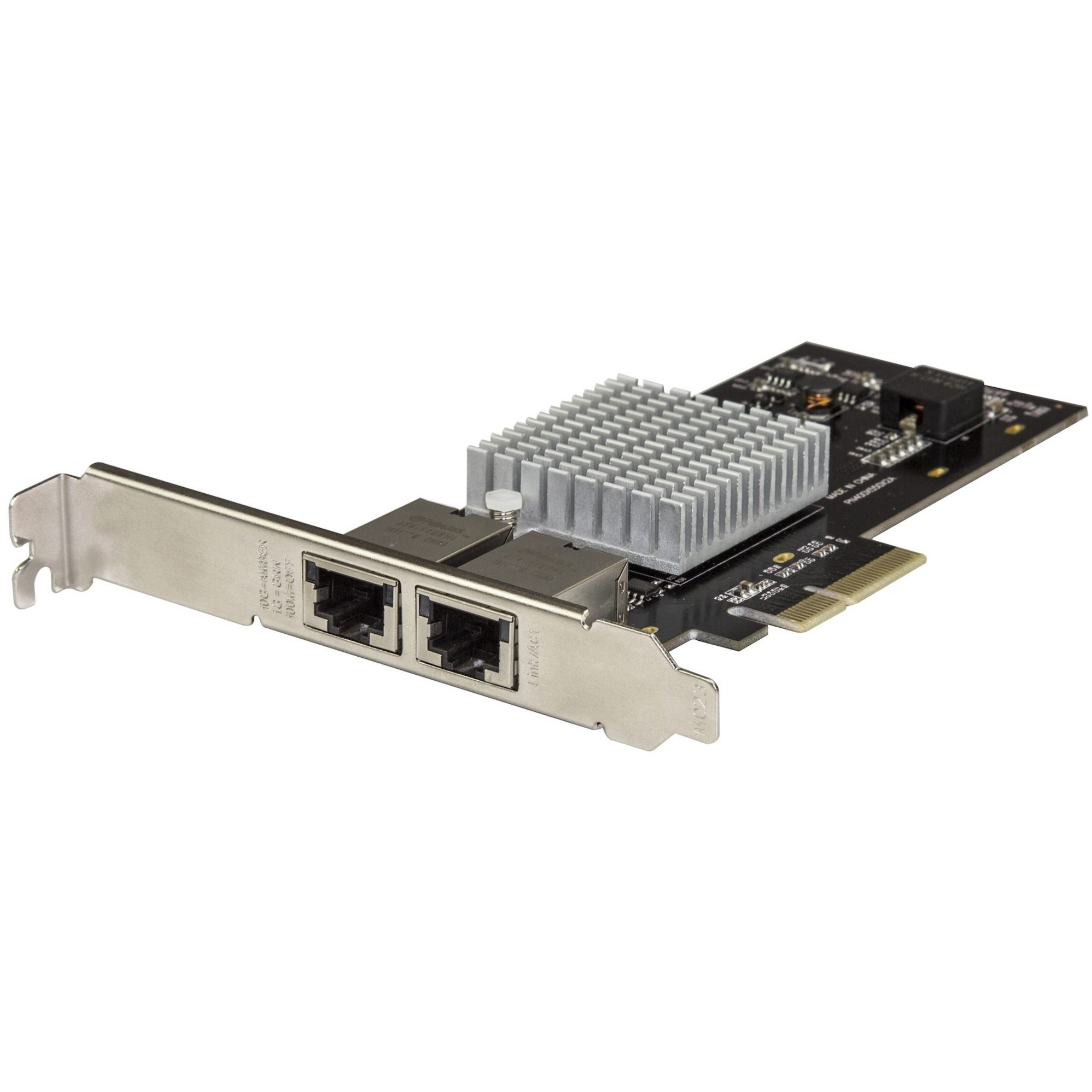

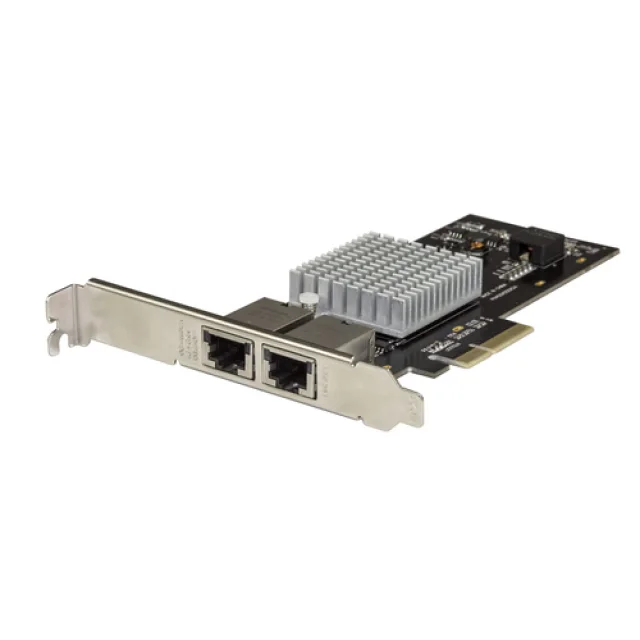

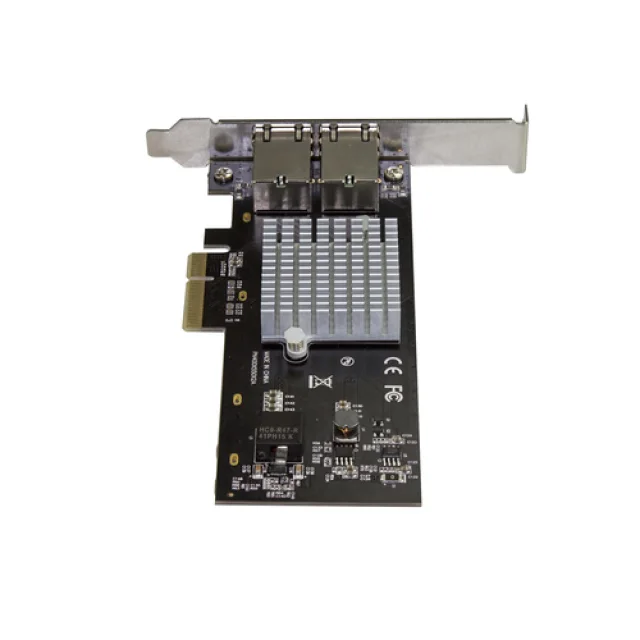

Startech Dual Port 10G PCIe Network Adapter Card - Intel-X550AT 10GBASE-T PCI Express 10GbE Multi Gigabit Ethernet 5 Speed NIC 2port - Network adapter - PCIe 3.0 x4 low profile - 10Gb Ethernet x 2 - black

Description

Manufacturer Code: ST10GPEXNDPI

Overview

Startech Dual Port 10G PCIe Network Adapter Card - Intel-X550AT 10GBASE-T PCI Express 10GbE Multi Gigabit Ethernet 5 Speed NIC 2port - Network adapter - PCIe 3.0 x4 low profile - 10Gb Ethernet x 2 - black is available through DCS Components. It sits within the NIC & Network Adapters category.

Key product details

• Intel-X550AT 10GBASE-T PCI Express 10GbE Multi Gigabit Ethernet 5 Speed NIC 2port
• Network adapter
• PCIe 3.0 x4 low profile
• 10Gb Ethernet x 2
• black

Procurement and setup support

Available for quote while live availability remains in stock. DCS can help with procurement, compatibility checks, configuration planning, installation support and long-term managed IT lifecycle support.

EAN: 0065030879538

Specifications

Ports & interfaces

Connectivity technology	Wired
Host interface	PCI Express
Interface	Ethernet
Ethernet LAN (RJ-45) ports	2
PCI version	3.0

Network

Maximum data transfer rate	10000 Mbit/s
Networking standards	IEEE 802.1Q, IEEE 802.3ab, IEEE 802.3an, IEEE 802.3u, IEEE 802.3x
Ethernet LAN	Yes
Ethernet LAN data rates	10,100,1000,2500,5000,10000 Mbit/s
Cabling technology	10GBase-T
Auto MDIX IEEE	Yes
Full duplex	Yes
Jumbo frames support	Yes
Jumbo frames	9000
VLAN tagging	Yes
iSCSI support	Yes

Design

Product colour	Black
Internal	Yes
Chipset	Intel X550AT
LED indicators	Activity, Link, Speed
Certification	CE, FCC, REACH

System requirements

Windows operating systems supported	Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64
Linux operating systems supported	Yes
Server operating systems supported	Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2, Windows Server 2016, Windows Server 2019

Operational conditions

Operating temperature (T-T)	5 - 50 °C
Storage temperature (T-T)	-20 - 60 °C
Operating relative humidity (H-H)	20 - 80%

Weight & dimensions

Width	15 mm
Depth	228 mm
Height	132 mm
Weight	98 g

Packaging data

Low-profile bracket	Yes
Package width	221 mm
Package depth	286 mm
Package height	116 mm
Package weight	199 g

Technical details

Compliance certificates	RoHS

Logistics data

Harmonized System (HS) code	85176990
Master (outer) case width	420 mm
Master (outer) case length	436 mm
Master (outer) case height	316 mm
Products per master (outer) case	40 pc(s)

Other features

Quick start guide	Yes
Flow control support	Yes
