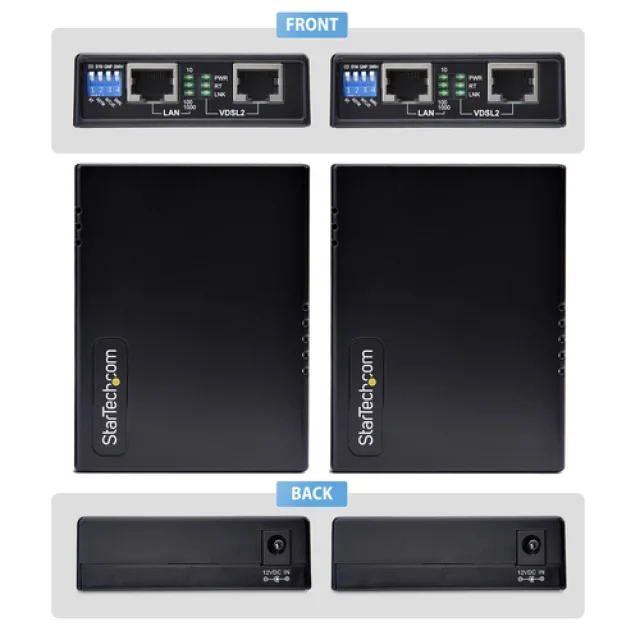

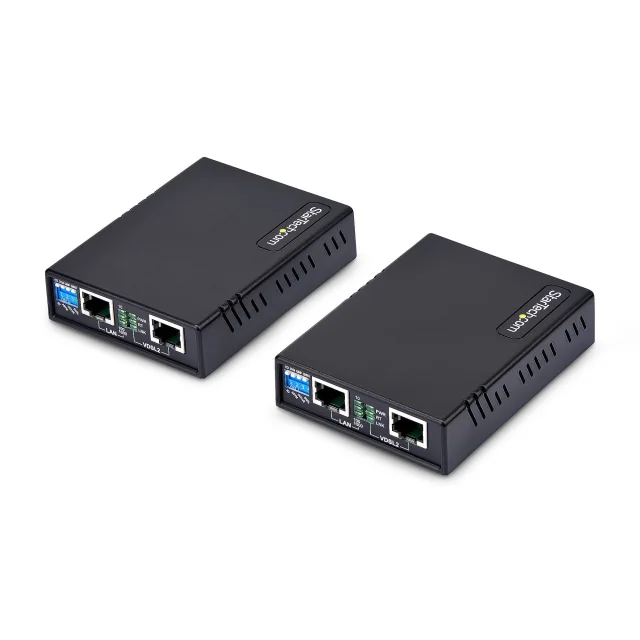

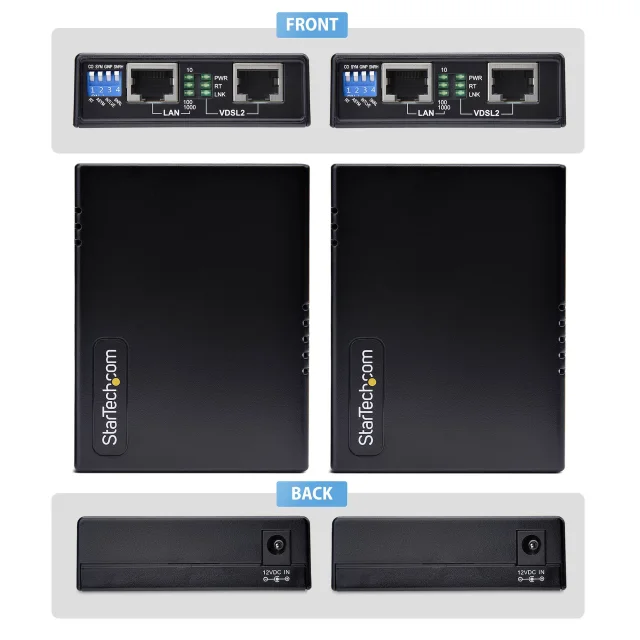

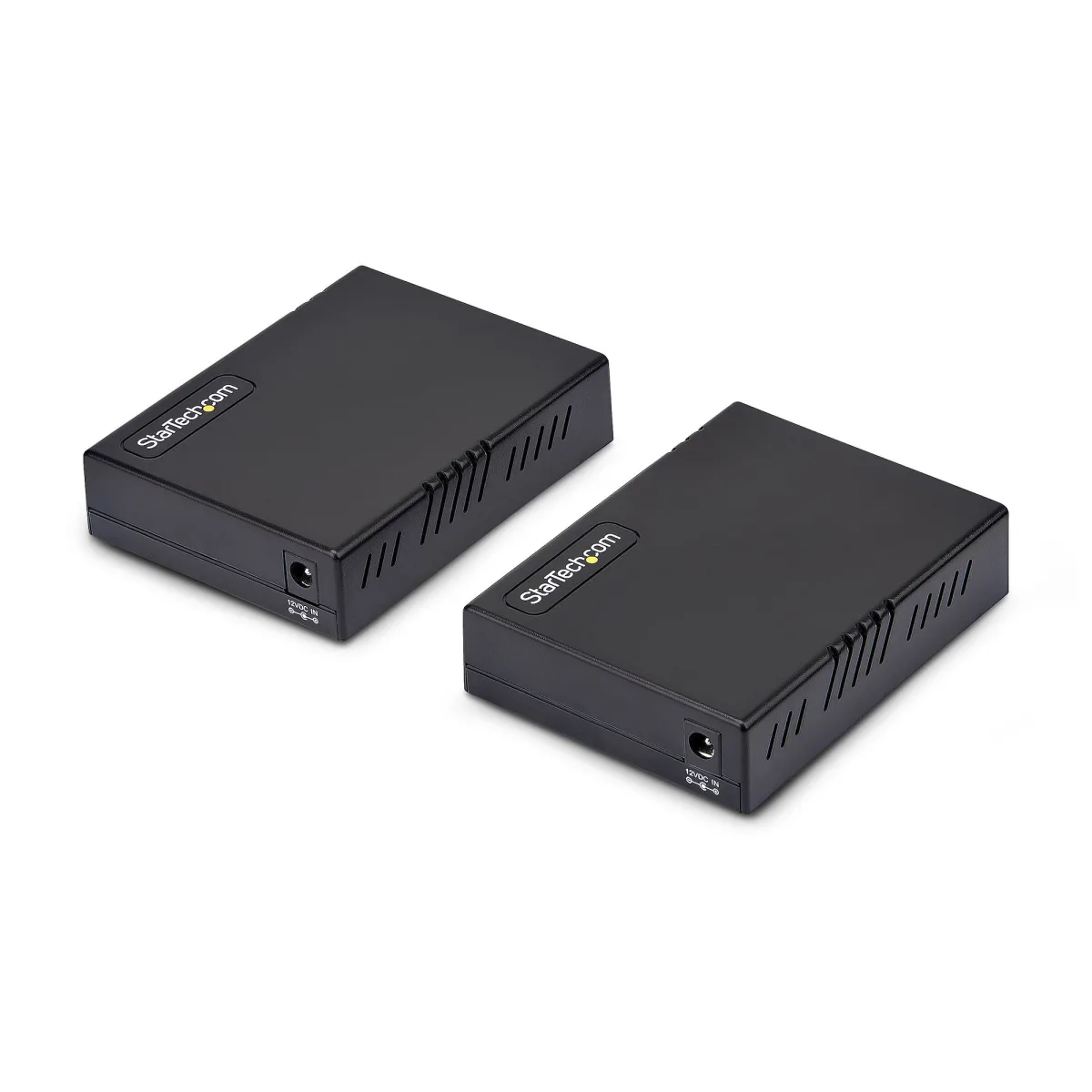

Startech - Extender Kit - short-haul modem - 100Mb LAN, Ethernet over VDSL2 - 10Base-T, 100Base-TX - 4 ports - up to 1 km - TAA Compliant

Description

Manufacturer Code: VDSL-LAN-EXTENDER-EU

Overview

Startech - Extender Kit - short-haul modem - 100Mb LAN, Ethernet over VDSL2 - 10Base-T, 100Base-TX - 4 ports - up to 1 km - TAA Compliant is available through DCS Components. It sits within the Network adapters category.

Key product details

• Extender Kit
• short-haul modem
• 100Mb LAN, Ethernet over VDSL2
• 10Base-T, 100Base-TX
• 4 ports

Procurement and setup support

Available for quote while live availability remains in stock. DCS can help with procurement, compatibility checks, configuration planning, installation support and long-term managed IT lifecycle support.

EAN: 0065030916936

Specifications

Performance

Type	Network transmitter & receiver
Maximum transfer distance	1000 m
Data transfer rate	300 Mbit/s
Cable types supported	Cat5e, Cat6
Chipset	RTL8685FB-CG
Ethernet LAN data rates	10,100,300 Mbit/s

Network

Networking standards	IEEE 802.1Q, IEEE 802.3, IEEE 802.3u, IEEE 802.3z

Ports & interfaces

Ethernet LAN (RJ-45) ports	4
DC-in jack	Yes

Design

Product colour	Black
Rack mounting	No

Power

AC input voltage	100 - 240 V
Input current	0.5 A
Power consumption (typical)	3.8 W
External power adapter	Yes
Output current	1 A

Operational conditions

Operating temperature (T-T)	0 - 45 °C
Storage temperature (T-T)	-10 - 70 °C
Operating relative humidity (H-H)	0 - 95%

Weight & dimensions

Width	72 mm
Weight	110 g

Packaging content

Quick start guide	Yes
AC adapter included	Yes

Packaging data

Package width	180 mm
Package depth	150 mm
Package height	130 mm
Package weight	700 g

Certificates

Compliance certificates	RoHS, Trade Agreements Act (TAA)

Logistics data

Master (outer) case width	305 mm
Master (outer) case length	425 mm
Master (outer) case height	515 mm
Products per master (outer) case	15 pc(s)
