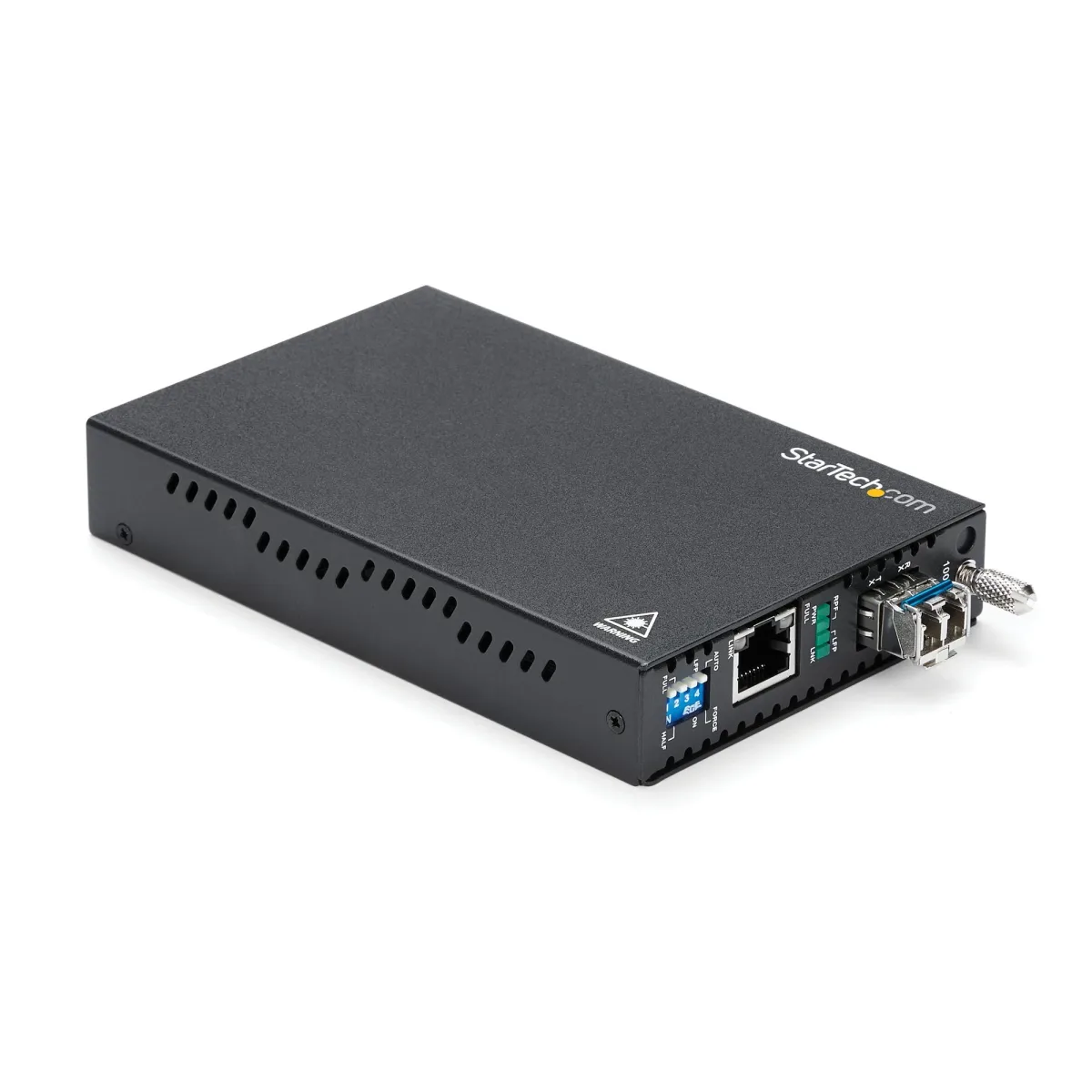

Startech Singlemode (SM) LC Fiber Media Converter for 1Gbe Network - 20km - Gigabit Ethernet - 1310nm - with SFP Transceiver (ET91000SM20)

Description

StarTech.com Singlemode (SM) LC Fiber Media Converter for 1Gbe Network - 20km - Gigabit Ethernet - 1310nm - with SFP Transceiver (ET91000SM20) - Convert & extend a GbE connection up to 20 km (12.4 mi) using single-mode LC fiber cable - Gigabit Ethernet Copper-to-Fiber Media Converter SM LC 20 km - Ethernet Media Converter / GbE Converter - Supports standalone operation or install into ETCHS2U

Overview

Startech GBE FIBER MEDIA CONVERTER is listed under manufacturer code ET91000SM20. It sits within the Media Converters category. DCS Components can help source this item as part of a quote-led procurement request.

Key product details

• Manufacturer code: ET91000SM20
• Category: Media Converters
• EAN: 0065030864947

Procurement and setup support

DCS can help with procurement, compatibility checks, configuration planning, deployment support and long-term managed IT lifecycle support.

Specifications

Network

Maximum data transfer rate	2000 Mbit/s
Converter input interface	1000Base-T
Converter output interface	1000Base-LX
Networking standards	IEEE 802.3ab, IEEE 802.3z
Ethernet interface type	Gigabit Ethernet
Ethernet LAN data rates	10,100,1000 Mbit/s
Jumbo frames support	Yes
Jumbo frames	9600
Flow control support	No
Auto MDI/MDI-X	Yes
Duplex system	Full, Half

Performance

Maximum transfer distance	20000 m
Wavelength	1310 nm
Wavelength-division multiplexing (WDM)	No
Fiber mode structure	Single-mode
Mean time between failures (MTBF)	65000 h

Features

Internal	No
LED indicators	Link, Power
Product colour	Black
Housing material	Plastic, Steel

Ports & interfaces

Connectivity technology	Wired
Ethernet LAN (RJ-45) ports	1
Fiber ports quantity	1
Fiber optic connector	LC

Power

Input voltage	100 - 240 V
Input current	0.48 A
Output voltage	12 V
Output current	1.6 A
Power consumption (max)	19.2 W
Power over Ethernet (PoE)	No
Power plug type	Type M

Weight & dimensions

Width	88 mm
Depth	159 mm
Height	23 mm
Weight	410 g

Operational conditions

Operating temperature (T-T)	0 - 50 °C
Storage temperature (T-T)	-10 - 70 °C
Operating relative humidity (H-H)	10 - 90%

Packaging content

AC adapter included	Yes
Manual	Yes

Packaging data

Package width	137 mm
Package depth	207 mm
Package height	90 mm
Package weight	778 g

Certificates

Compliance certificates	RoHS
Certification	CE, FCC

Logistics data

Harmonized System (HS) code	85176990
