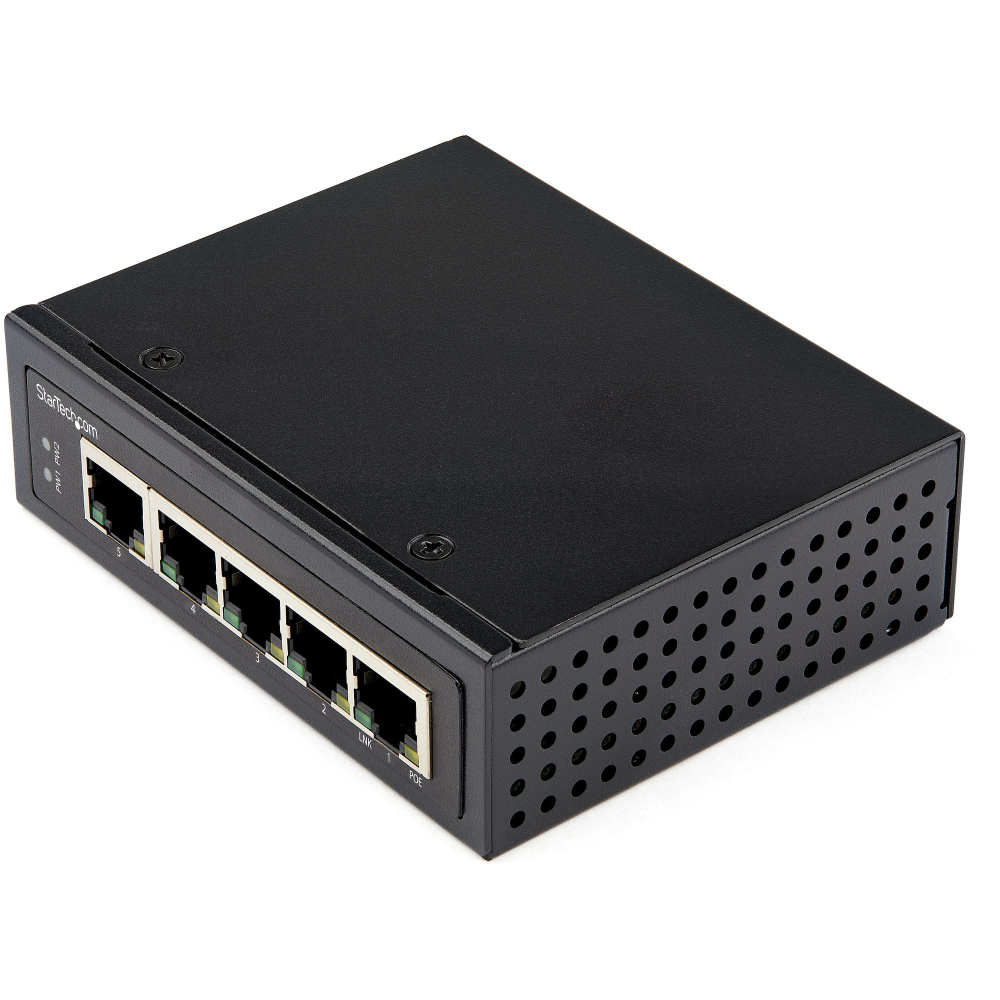

Startech Industrial 5 Port Gigabit PoE Switch, 30W, Power Over Ethernet Switch, Hardened GbE PoE+ Unmanaged Switch, Rugged High Power Gigabit Network Switch IP-30 Housing/-40 C to 75 C - Gigabit Ethernet PoE (IESC1G50UP) - Switch - unmanaged - 4 x 10/100/1000 (PoE+) + 1 x 10/100/1000 - DIN rail mountable, wall-mountable - PoE+ (120 W) - DC power

Description

Manufacturer Code: IESC1G50UP

Overview

Startech Industrial 5 Port Gigabit PoE Switch, 30W, Power Over Ethernet Switch, Hardened GbE PoE+ Unmanaged Switch, Rugged High Power Gigabit Network Switch IP-30 Housing/-40 C to 75 C - Gigabit Ethernet PoE (IESC1G50UP) - Switch - unmanaged - 4 x 10/100/ is available through DCS Components. It sits within the Managed Switches category.

Key product details

• Gigabit Ethernet PoE (IESC1G50UP)
• Switch
• unmanaged
• 4 x 10/100/

Procurement and setup support

Available for quote while live availability remains in stock. DCS can help with procurement, compatibility checks, configuration planning, installation support and long-term managed IT lifecycle support.

EAN: 0065030889629

Specifications

Management features

Switch type	Unmanaged

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity	5
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)

Network

Networking standards	IEEE 802.3, IEEE 802.3af, IEEE 802.3at, IEEE 802.3x
10G support	No
Full duplex	Yes
Flow control support	Yes
Auto MDI/MDI-X	Yes

Data transmission

Jumbo frames support	Yes
Jumbo frames	9000

Protocols

Supported network protocols	CSMA/CD

Design

Rack mounting	No
Product colour	Black
Housing material	Steel
LED indicators	Yes
International Protection (IP) code	IP30
Wall mountable	Yes
DIN rail mounting	Yes
Safety	EN60950-1

Performance

Maximum cable length	100 m
Mean time between failures (MTBF)	538451 h

Power

DC input voltage	48 - 56 V
Surge protection	Yes
Surge protection voltage	2 kV
Power plug type	Type N

Power over Ethernet (PoE)

Power over Ethernet (PoE)	Yes
Power over Ethernet plus (PoE+) ports quantity	5
Power over Ethernet (PoE) power per port	30 W
Total Power over Ethernet (PoE) budget	120 W

Other features

Terminal block port	Yes

Operational conditions

Operating temperature (T-T)	-40 - 75 °C
Storage temperature (T-T)	-40 - 85 °C
Operating relative humidity (H-H)	5 - 95%

Weight & dimensions

Width	81.5 mm
Depth	104 mm
Height	32 mm
Weight	150.6 g

Packaging content

Quick start guide	Yes

Packaging data

Terminal block included	Yes
Package width	211 mm
Package depth	162 mm
Package height	64 mm
Package weight	392.6 g

Certificates

Certification	CE, FCC, RoHS, UL

Logistics data

Master (outer) case width	355 mm
Master (outer) case length	345 mm
Master (outer) case height	225 mm
Harmonized System (HS) code	85176990
Products per master (outer) case	10 pc(s)
