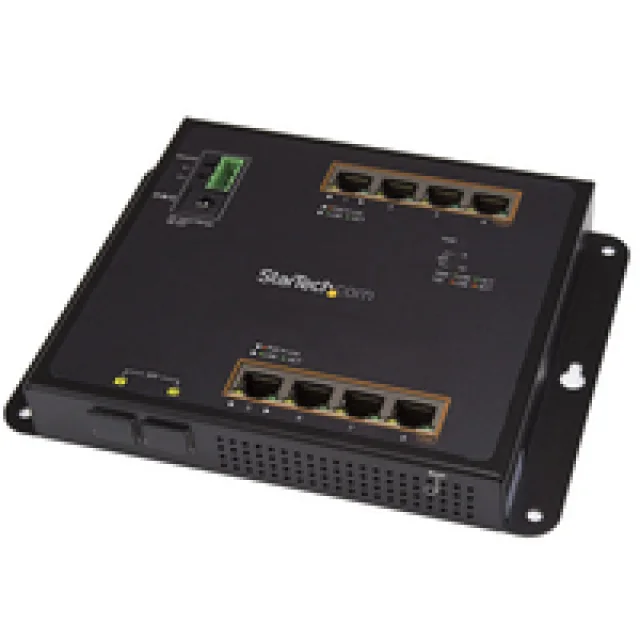

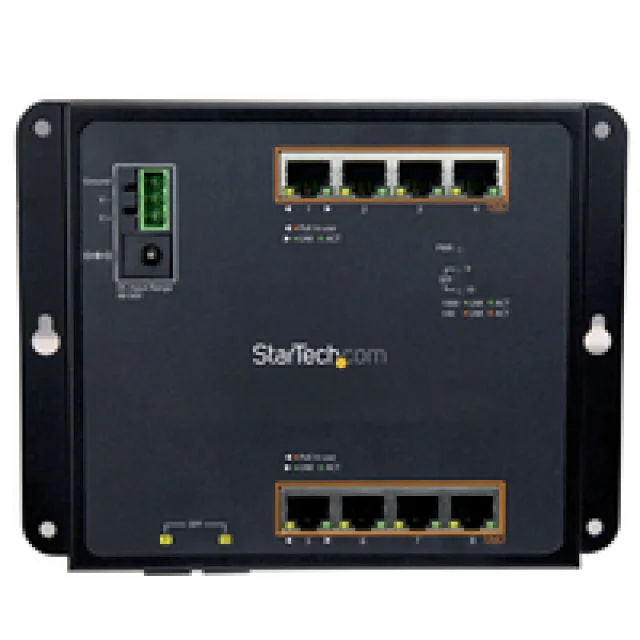

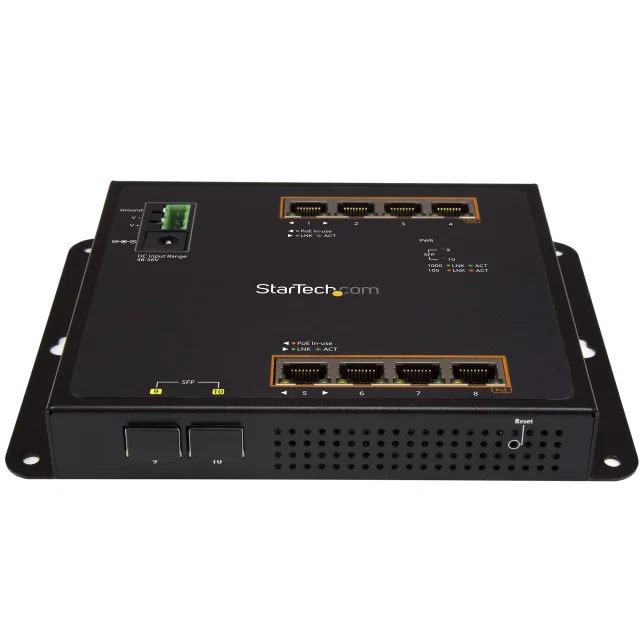

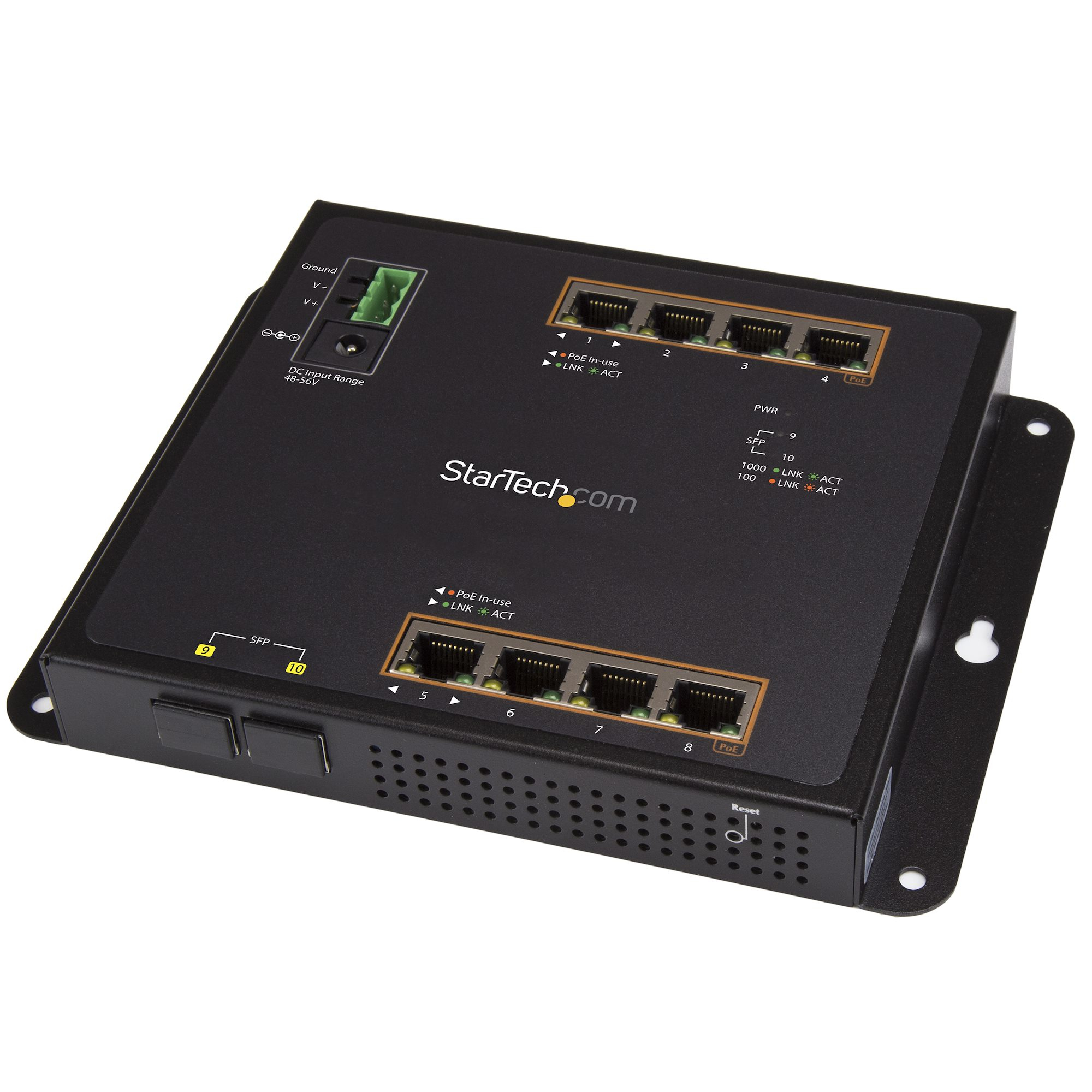

Startech Industrial 8 Port Gigabit PoE+ Switch with 2 SFP MSA Slots, 30W, Layer/L2 Switch Hardened GbE Managed, Rugged High Power Gigabit Ethernet Network Switch IP-30/-40 C to 75 C - Managed Network Switch (IES101GP2SFW) - Switch - Managed - 8 x 10/100/1000 (PoE+) + 2 x SFP - DIN rail mountable, wall-mountable - PoE+ (200 W) - for P/N: GLCLHSMDSTTA, GLCSXMMDST, GLCSXMMDSTT, GLCTEST, MASFP1GBTXST, SFP1GELXST

Description

Manufacturer Code: IES101GP2SFW

Overview

Startech Industrial 8 Port Gigabit PoE+ Switch with 2 SFP MSA Slots, 30W, Layer/L2 Switch Hardened GbE Managed, Rugged High Power Gigabit Ethernet Network Switch IP-30/-40 C to 75 C - Managed Network Switch (IES101GP2SFW) - Switch - Managed - 8 x 10/100/1 is available through DCS Components. It sits within the Managed Switches category.

Key product details

• Managed Network Switch (IES101GP2SFW)
• Switch
• Managed
• 8 x 10/100/1

Procurement and setup support

Available for quote while live availability remains in stock. DCS can help with procurement, compatibility checks, configuration planning, installation support and long-term managed IT lifecycle support.

EAN: 0065030871198

Specifications

Management features

Switch type	Managed
Switch layer	L2
Quality of Service (QoS) support	Yes

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity	8
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
SFP module slots quantity	2

Network

Networking standards	IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
10G support	No
Full duplex	Yes
Flow control support	Yes
Link aggregation	Yes
Auto MDI/MDI-X	Yes
Spanning tree protocol	Yes
Virtual LAN features	Tagged VLAN

Data transmission

Store-and-forward	Yes

Security

Access Control List (ACL)	Yes

Design

Rack mounting	No
Product colour	Black
Housing material	Steel
LED indicators	Activity, Link
International Protection (IP) code	IP30
Wall mountable	Yes

Performance

Maximum cable length	100 m
Buffer size	512 KB
Maximum data transfer rate	2000 Mbit/s
Mean time between failures (MTBF)	100000 h

Power

Input current	1 A
Input voltage	12 - 48 V
Power plug type	Type M

Power over Ethernet (PoE)

Power over Ethernet (PoE)	Yes
Power over Ethernet plus (PoE+) ports quantity	8
Power over Ethernet (PoE) power per port	30 W
Total Power over Ethernet (PoE) budget	200 W

Other features

Terminal block port	Yes

Operational conditions

Operating temperature (T-T)	-40 - 75 °C
Storage temperature (T-T)	-40 - 90 °C
Operating relative humidity (H-H)	5 - 95%

Weight & dimensions

Width	178 mm
Depth	134 mm
Height	25 mm
Weight	618 g

Packaging content

Quick start guide	Yes

Packaging data

Terminal block included	Yes
Package width	170 mm
Package depth	300 mm
Package height	90 mm
Package weight	900 g

Certificates

Certification	CE, FCC, RoHS

Logistics data

Master (outer) case width	325 mm
Master (outer) case length	370 mm
Master (outer) case height	470 mm
Harmonized System (HS) code	85176990
Products per master (outer) case	10 pc(s)
