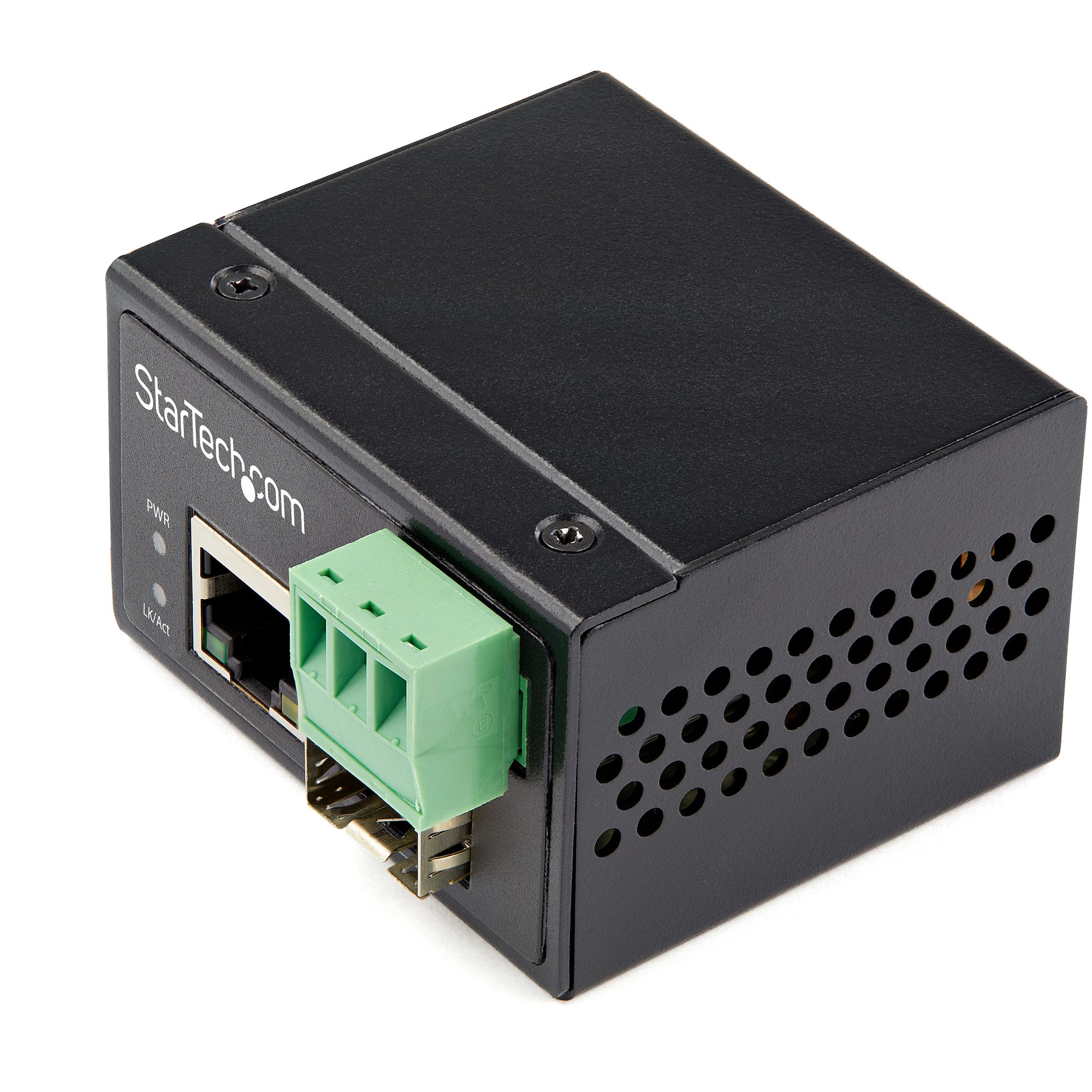

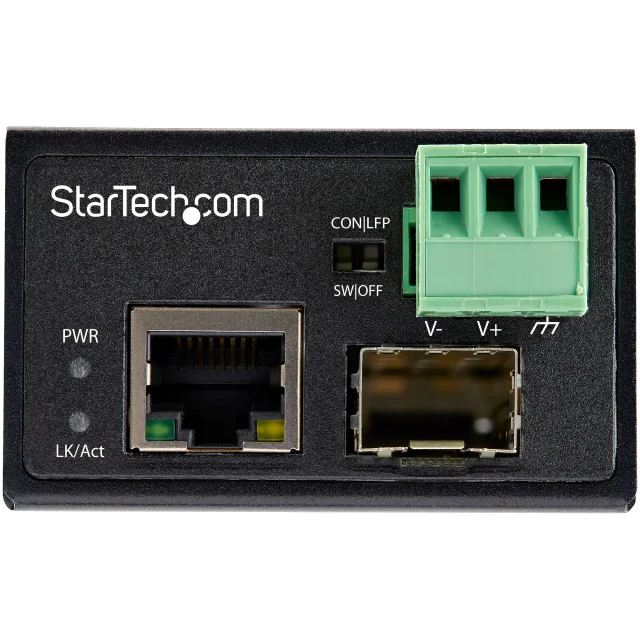

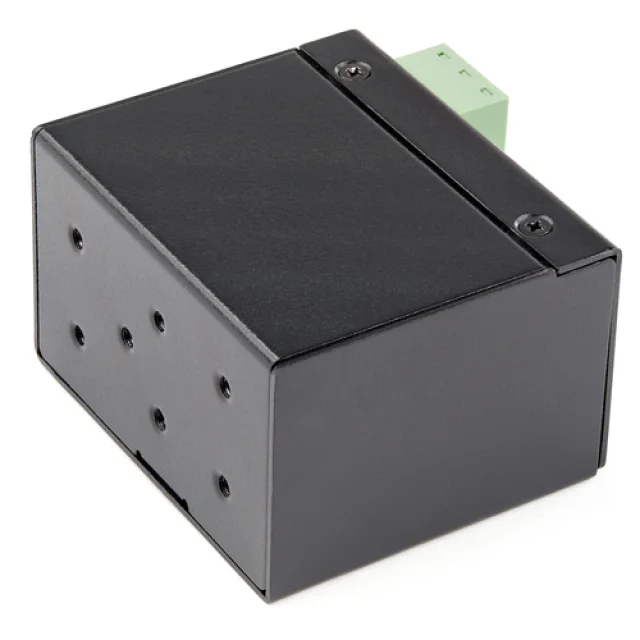

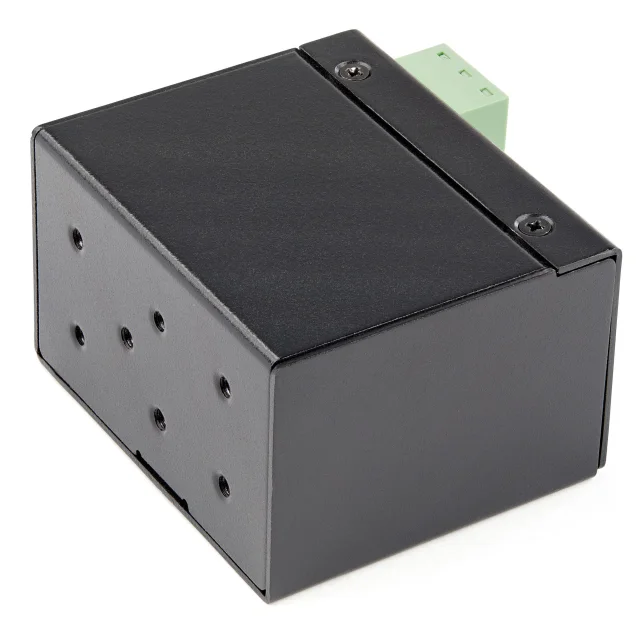

Startech Industrial Fiber to Ethernet Media Converter, 100Mbps SFP to RJ45/Cat6, Singlemode/Multimode Optical Fiber to Copper Network, 12-56V DC, IP-30/ -40 to +75C, Fiber to Ethernet - SFP to RJ45 Converter (IMC100MSFP) - Fibre media converter - 100Mb LAN - 100Base-FX, 100Base-TX - RJ-45 / SFP (mini-GBIC)

Description

Manufacturer Code: IMC100MSFP

Overview

Startech Industrial Fiber to Ethernet Media Converter, 100Mbps SFP to RJ45/Cat6, Singlemode/Multimode Optical Fiber to Copper Network, 12-56V DC, IP-30/ -40 to +75C, Fiber to Ethernet - SFP to RJ45 Converter (IMC100MSFP) - Fibre media converter - 100Mb LA is available through DCS Components. It sits within the Media Converters category.

Key product details

• SFP to RJ45 Converter (IMC100MSFP)
• Fibre media converter
• 100Mb LA

Procurement and setup support

Available for quote while live availability remains in stock. DCS can help with procurement, compatibility checks, configuration planning, installation support and long-term managed IT lifecycle support.

EAN: 0065030889667

Specifications

Network

Maximum data transfer rate	100 Mbit/s
Converter input interface	10Base-T, 100Base-TX
Converter output interface	100Base-FX
Networking standards	IEEE 802.3, IEEE 802.3u, IEEE 802.3x
Jumbo frames support	Yes
Jumbo frames	16000
Duplex system	Full

Performance

Fiber mode structure	Multi-mode, Single-mode
Mean time between failures (MTBF)	500000 h

Features

Internal	No
LED indicators	Yes
Product colour	Black
Housing material	Aluminium
International Protection (IP) code	IP30
DIN rail mounting	Yes

Ports & interfaces

Connectivity technology	Wired
Ethernet LAN (RJ-45) ports	1
Fiber ports quantity	1
Fiber optic connector	SFP

Power

Input voltage	12 - 56 V
Power consumption (typical)	1.92 W
Power over Ethernet (PoE)	No
Power plug type	Type N

Weight & dimensions

Width	36 mm
Depth	59 mm
Height	50 mm
Weight	81.4 g

Operational conditions

Operating temperature (T-T)	-40 - 75 °C
Storage temperature (T-T)	-40 - 85 °C
Operating relative humidity (H-H)	5 - 95%

Packaging content

User guide	Yes

Packaging data

Package width	155 mm
Package depth	105 mm
Package height	64 mm
Package weight	242.4 g

Certificates

Compliance certificates	RoHS
Certification	CE, FCC

Logistics data

Harmonized System (HS) code	85176990
Master (outer) case width	355 mm
Master (outer) case length	345 mm
Master (outer) case height	225 mm
Products per master (outer) case	20 pc(s)
