Manufacturer Code: CK4-P208
Overview

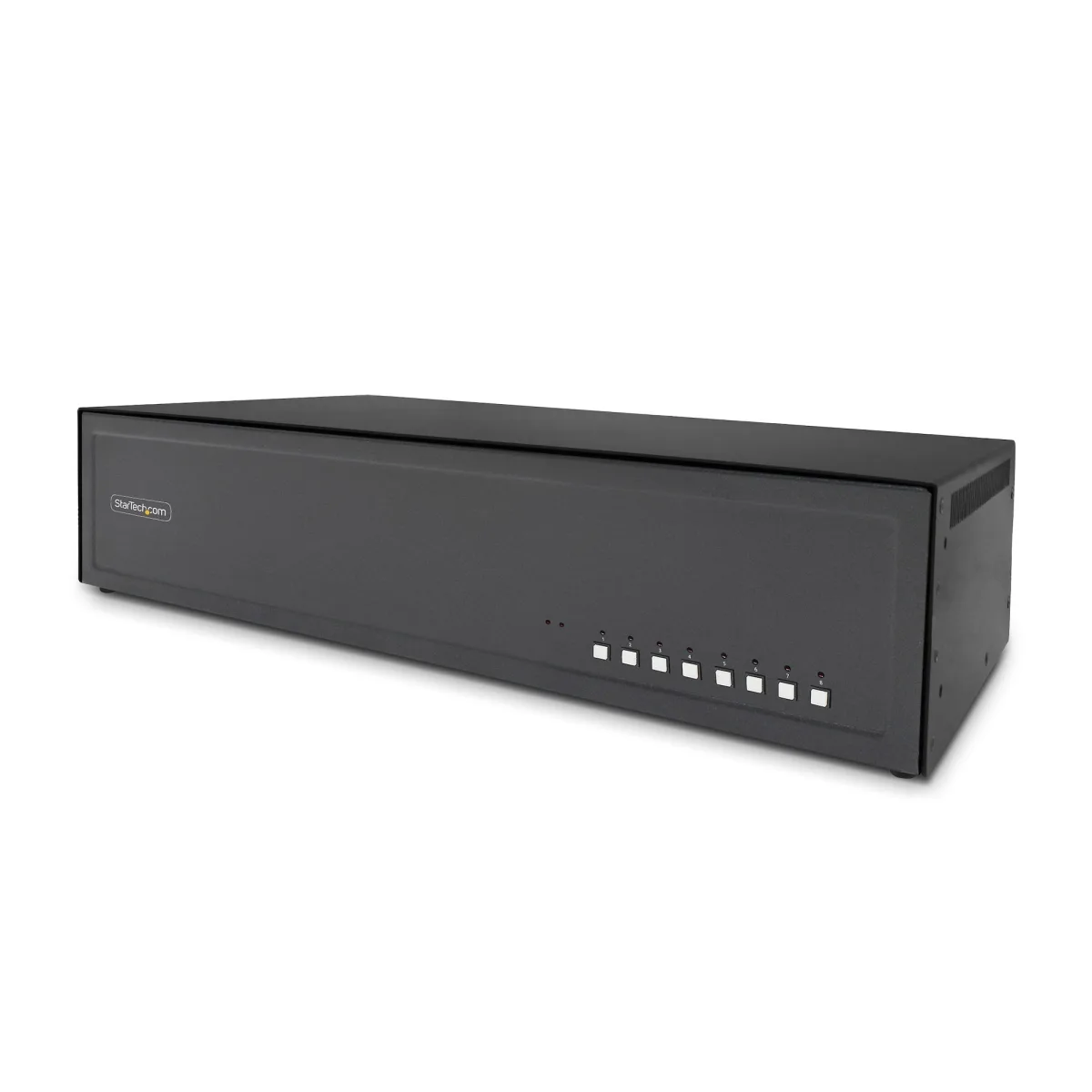

Startech - KVM / audio / USB switch - 8 x KVM / audio / USB - 1 local user - desktop - TAA Compliant is available through DCS Components. It sits within the KVM Switches, Cables & Accessories category.
Key product details
Procurement and setup support
Available for quote while live availability remains in stock. DCS can help with procurement, compatibility checks, configuration planning, installation support and long-term managed IT lifecycle support.
EAN: 735816647452
| Number of computers controlled | 8 |
|---|---|
| Keyboard port type | USB |
| Mouse port type | USB |
| Video port type | DisplayPort |
| DisplayPorts quantity | 16 |
| USB 2.0 Type-B ports quantity | 8 |
| Console ports | 3.5mm headphone, DisplayPort, USB A |
| Console USB ports quantity | 2 |
| Console DisplayPorts ports quantity | 2 |
| Audio connections | Yes |
| Headphone outputs | 1 |
| Number of microphone inputs | 8 |
| DC-in jack | Yes |
| HD type | 4K Ultra HD |
|---|---|
| Maximum resolution | 3840 x 2160 pixels |
| Daisy chain | No |
| Maximum refresh rate | 30 Hz |
| Audio channels | 2.0 |
| Number of displays supported | 2 |
| Rack mounting | No |
|---|---|
| Product colour | Black |
| Housing material | Metal |
| Maximum cable length | 6 m |
| LED indicators | Yes |
| Push button | Yes |
| Hot keys | No |
| Built-in display | No |
|---|---|
| On Screen Display (OSD) | No |
| Compliance certificates | Federal Communications Commission (FCC), RoHS, Trade Agreements Act (TAA) |
|---|
| Operating temperature (T-T) | 0 - 40 °C |
|---|---|
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
| Width | 220.7 mm |
|---|---|
| Depth | 431.8 mm |
| Height | 220.7 mm |
| Weight | 3.1 kg |
| IP control | No |
|---|
| Products per master (outer) case | 5 pc(s) |
|---|
