Manufacturer Code: M2-REMOVABLE-PCIE-N1
Overview

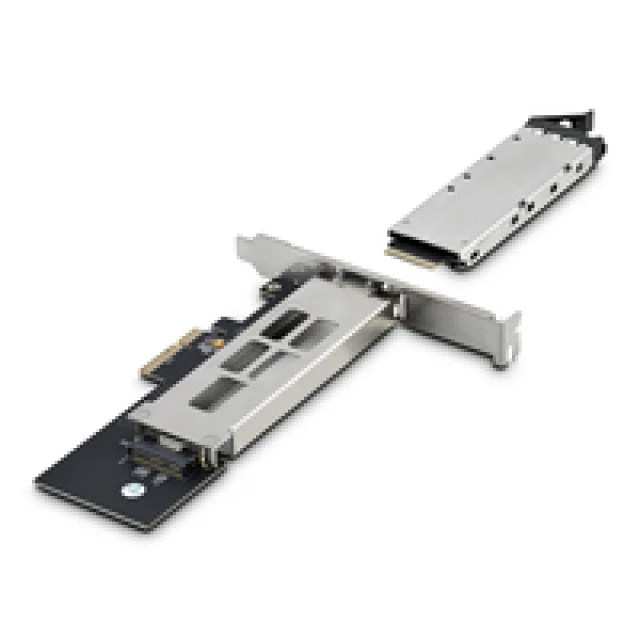

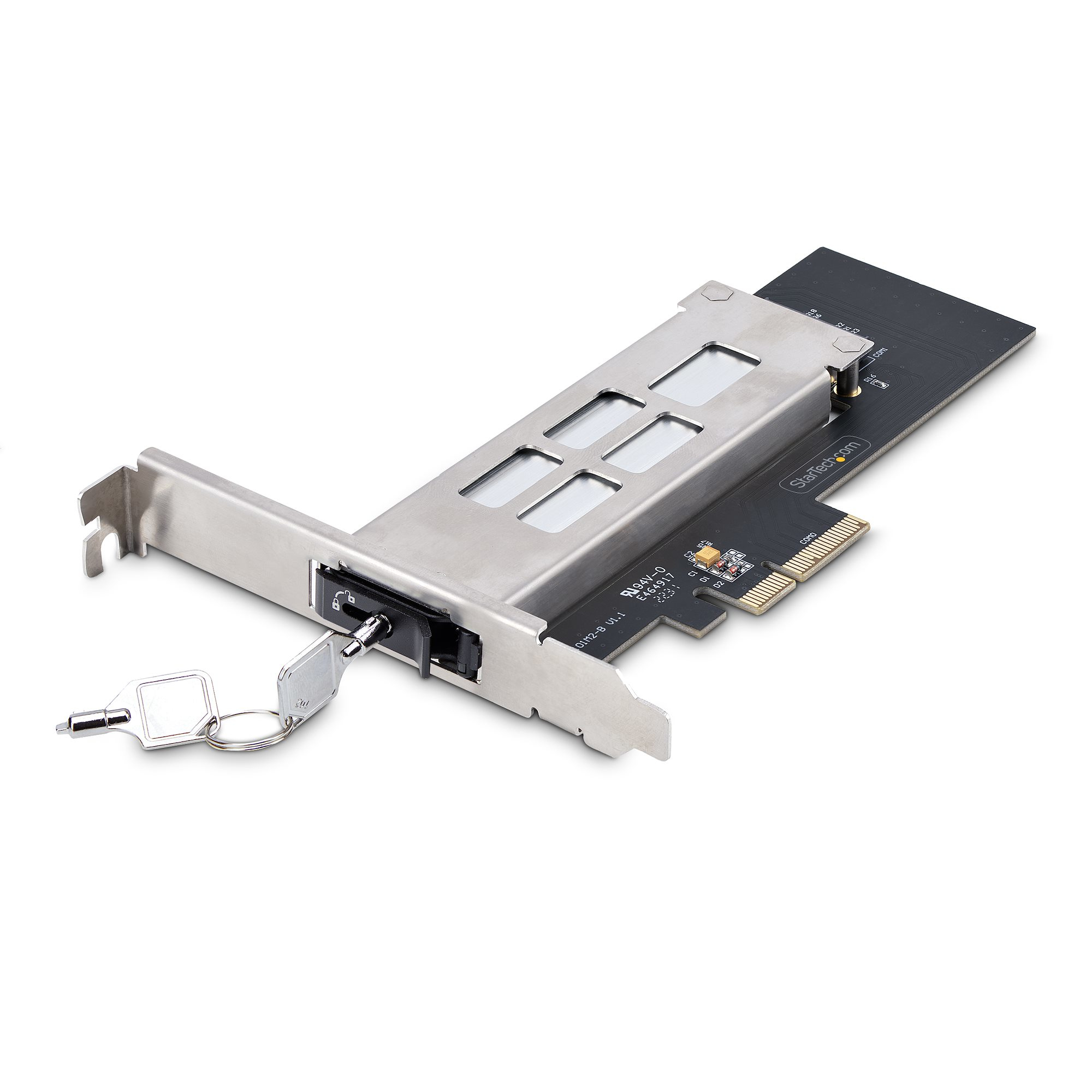

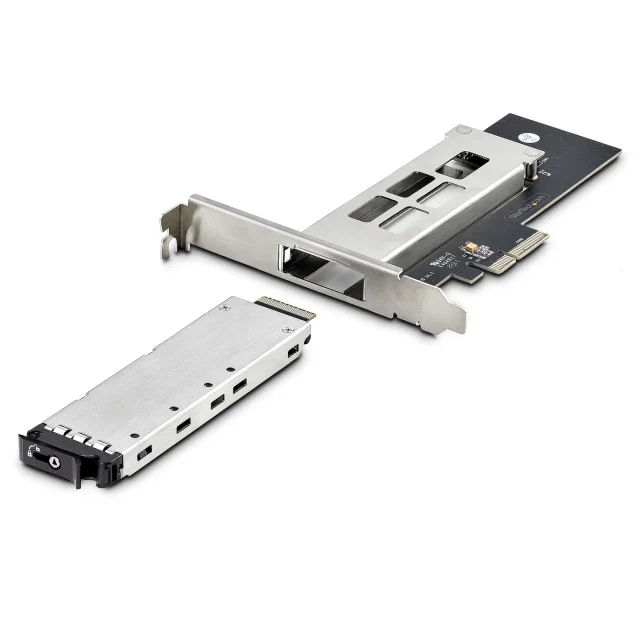

Startech M.2 NVMe SSD to PCIe x4 Mobile Rack/Backplane with Removable Tray for PCI Express Expansion Slot, Tool-less Installation, PCIe 4.0/3.0 Hot-Swap Drive Bay, Key Lock - 2 Keys Included - Interface adapter - M.2 - M.2 NVMe Card / PCIe 4.0 (NVMe) - PC is available through DCS Components. It sits within the Storage Enclosures & RAID category.
Key product details
Procurement and setup support
Available for quote while live availability remains in stock. DCS can help with procurement, compatibility checks, configuration planning, installation support and long-term managed IT lifecycle support.
EAN: 0065030898997
| Host interface | PCIe |
|---|---|
| Output interface | M.2 |
| Expansion card standard | PCIe 4.0 |
| Internal | Yes |
|---|---|
| Product colour | Black, Silver |
| Purpose | PC |
| Number of fans | 0 fan(s) |
| LED indicators | Yes |
| Mean time between failures (MTBF) | 10000 h |
| Hot-swap | Yes |
| Data transfer rate (max) | 64 Gbit/s |
|---|---|
| S.M.A.R.T. support | Yes |
| TRIM support | Yes |
| Plug and Play | Yes |
| Operating temperature (T-T) | 0 - 65 °C |
|---|---|
| Storage temperature (T-T) | -35 - 70 °C |
| Operating relative humidity (H-H) | 0 - 90% |
| Sustainability compliance | Yes |
|---|---|
| Compliance certificates | RoHS |
| Width | 120 mm |
|---|---|
| Depth | 167 mm |
| Height | 19 mm |
| Weight | 65 g |
| Mounting brackets included | Yes |
|---|---|
| Quick installation guide | Yes |
| Package width | 151 mm |
| Package depth | 230 mm |
| Package height | 46 mm |
| Package weight | 215 g |
| Products per master (outer) case | 20 pc(s) |
|---|---|
| Master (outer) case width | 325 mm |
| Master (outer) case length | 485 mm |
| Master (outer) case height | 270 mm |
