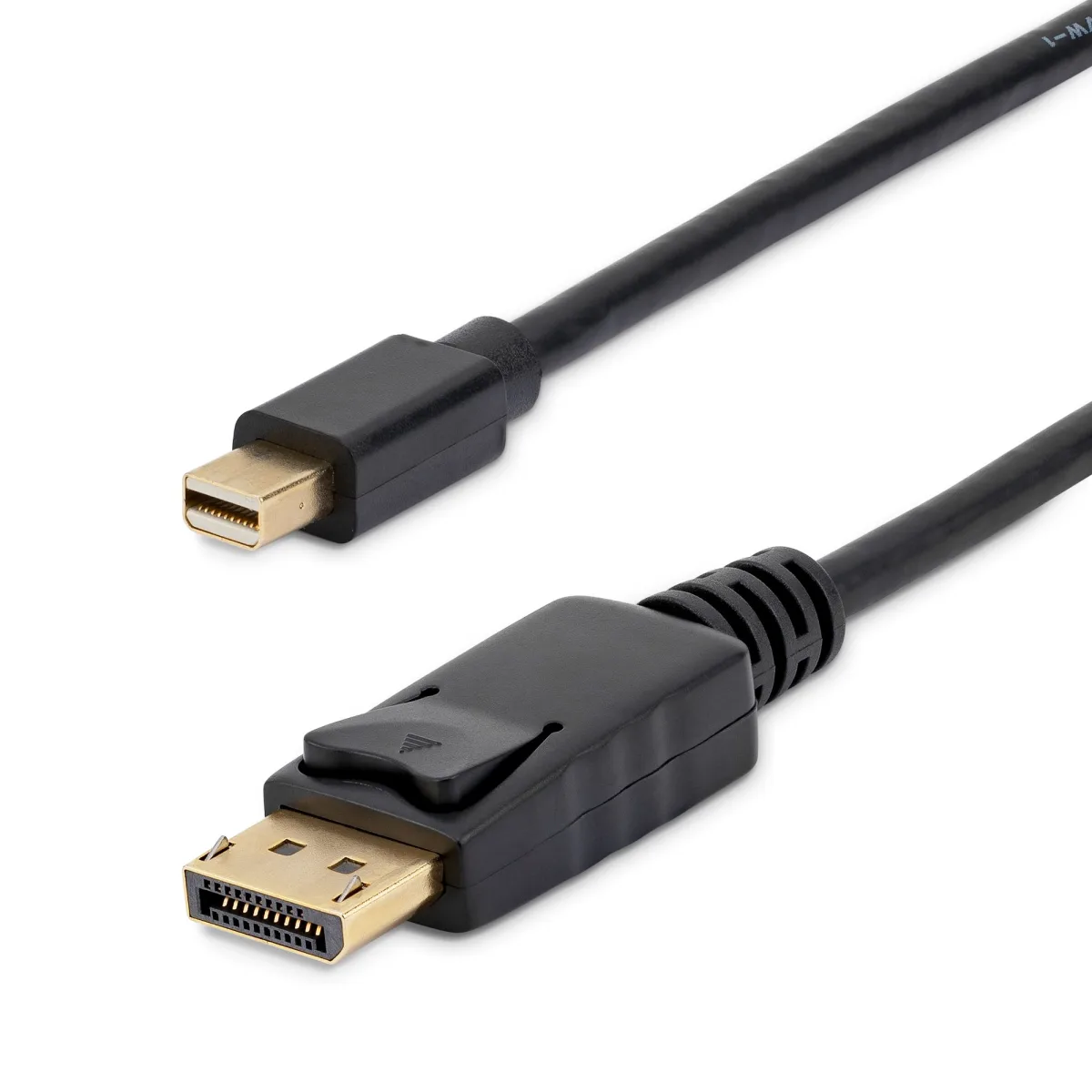

StarTech 10ft Mini DisplayPort to DisplayPort Cable - M/M - mDP to DP 1.2 Adapter Cable - Thunderbolt to DP w/ HBR2 Support (MDP2DPMM10)

Description

StarTech.com 10ft (3m) Mini DisplayPort to DisplayPort 1.2 Cable, 4K x 2K mDP to DisplayPort Adapter Cable, Mini DP to DP Cable - 10ft/3m Mini-DP to DisplayPort v1.2 cable; 4Kx2K(3840x2400 60Hz)/21.6 Gbps bandwidth/HBR2/8Ch Audio/MST - Durable PVC strain relief; Latching connectors - For office/boardroom with laptop/workstation and monitor/projector; Samsung/Sony/Dell

Overview

Startech MINI DISPLAYPORT TO DISPLAYPORT is listed under manufacturer code MDP2DPMM10. It sits within the Monitor Cables category. DCS Components can help source this item as part of a quote-led procurement request.

Key product details

• Manufacturer code: MDP2DPMM10
• Category: Monitor Cables
• EAN: 0065030840507

Procurement and setup support

DCS can help with procurement, compatibility checks, configuration planning, deployment support and long-term managed IT lifecycle support.

Specifications

Features

Connector 1 form factor	Straight
Connector 2 form factor	Straight
Connector contacts plating	Gold
DisplayPort version	1.2
Maximum resolution	3840 x 2160 pixels
Supported graphics resolutions	3840 x 2400, 2560 x 1600 (WQXGA)
Maximum refresh rate	120 Hz
HDCP	Yes
DisplayPort Content Protection (DPCP)	Yes
Cable length	3 m
Connector 1	mini DisplayPort
Connector 2	DisplayPort
Connector 1 gender	Male
Connector 2 gender	Male
Product colour	Black
Cable rating	CMG (CM)
Cable shielding	Aluminum mylar foil
Jacket material	Polyvinyl chloride (PVC)
AWG wire size	32
Bandwidth	21600 MB/s
Plug and Play	Yes
Multi-Stream Transport (MST)	Yes
Number of conductors	19

Operational conditions

Operating temperature (T-T)	0 - 45 °C
Storage temperature (T-T)	-10 - 70 °C
Operating relative humidity (H-H)	10 - 85%

Certificates

Compliance certificates	RoHS, CE

Weight & dimensions

Cable diameter	4.8 mm
Weight	103.9 g

Packaging data

Package width	200 mm
Package depth	220 mm
Package height	22 mm
Package weight	112.9 g

Packaging content

Quantity per pack	1 pc(s)

Logistics data

Harmonized System (HS) code	84733080
Master (outer) case width	332 mm
Master (outer) case length	504 mm
Master (outer) case height	215 mm
Products per master (outer) case	50 pc(s)
