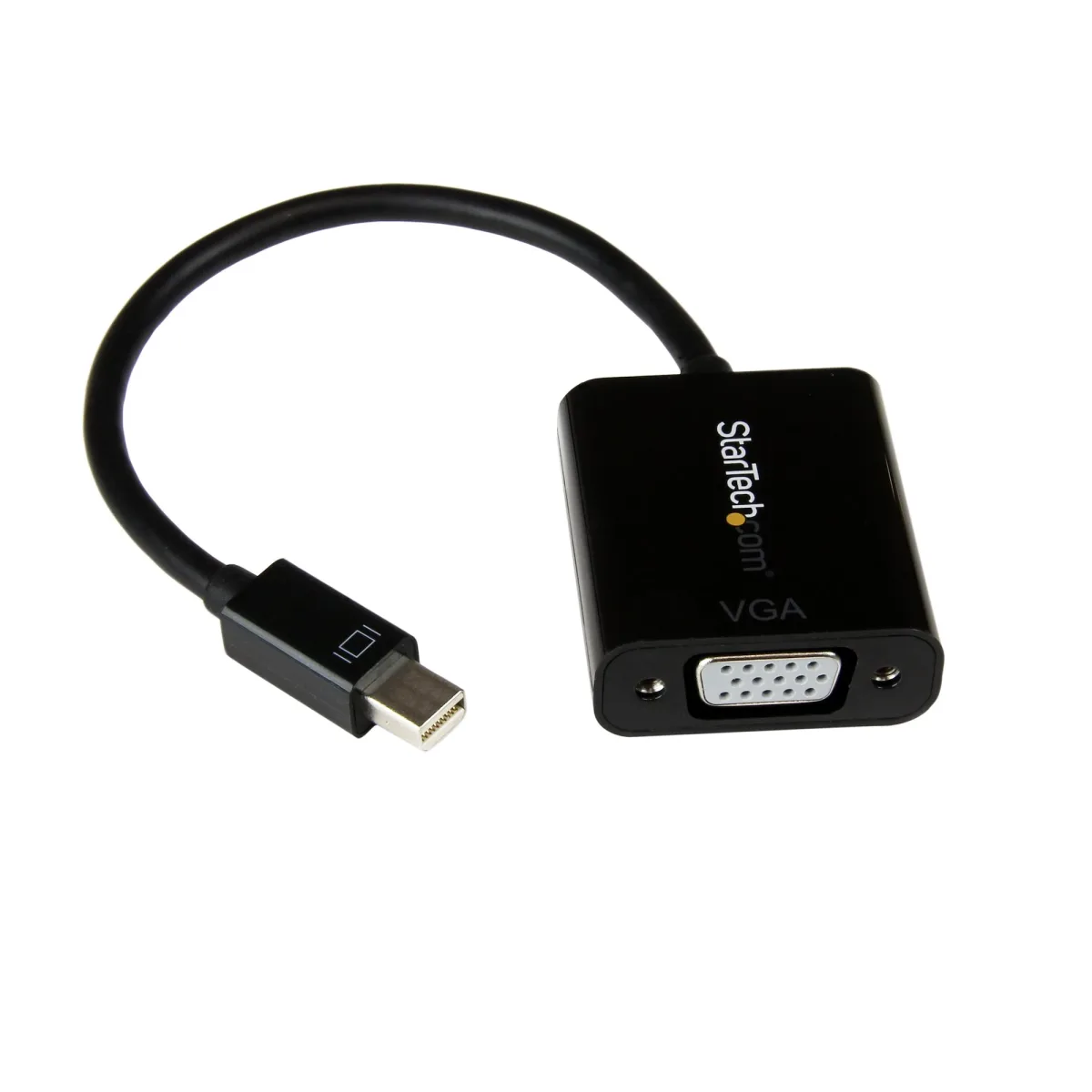

StarTech Mini DisplayPort to VGA Adapter - DisplayPort 1.2 - 1080p - Thunderbolt to VGA Monitor Adapter - Mini DP to VGA (MDP2VGA2)

Description

StarTech.com Mini DisplayPort 1.2 to VGA Adapter Converter - Mini DP to VGA - 1920x1200 - Active Mini DisplayPort to VGA adapter dongle supports 1920x1200/1080p 60Hz; HBR2; mDP 1.2; EDID/DDC - mDP to VGA projector/monitor/display - For mDP/mDP++ source - Mini DP to VGA adapter/video converter works w/ Thunderbolt 1 and 2 - OS independent

Overview

Startech MINI DISPLAYPORT TO VGA ADAPTER is listed under manufacturer code MDP2VGA2. It sits within the Monitor Cables category. DCS Components can help source this item as part of a quote-led procurement request.

Key product details

• Manufacturer code: MDP2VGA2
• Category: Monitor Cables
• EAN: 0065030854283

Procurement and setup support

DCS can help with procurement, compatibility checks, configuration planning, deployment support and long-term managed IT lifecycle support.

Specifications

Features

Connector 1 form factor	Straight
Connector 2 form factor	Straight
Cable length	0.18 m
Connector 1	Mini DisplayPort
Connector 2	VGA (D-Sub)
Connector 1 gender	Male
Connector 2 gender	Female
DisplayPort version	1.2
Maximum resolution	1920 x 1200 pixels
Supported video modes	720p, 1080p
Maximum refresh rate	60 Hz
HBR2 support	Yes
Product colour	Black
Chipset	Analogix - ANX9833
Plug and Play	Yes
Converter type	Active video converter

Operational conditions

Operating temperature (T-T)	0 - 70 °C
Storage temperature (T-T)	-10 - 80 °C
Operating relative humidity (H-H)	10 - 85%

Certificates

Compliance certificates	CE, RoHS
Certification	RoHS, CE, FCC

Weight & dimensions

Weight	27 g
Width	35 mm
Depth	220 mm
Height	8 mm

Packaging data

Package width	200 mm
Package depth	220 mm
Package height	18 mm
Package weight	36 g

Logistics data

Harmonized System (HS) code	84733080
Master (outer) case width	330 mm
Master (outer) case length	500 mm
Master (outer) case height	213 mm
Products per master (outer) case	150 pc(s)
