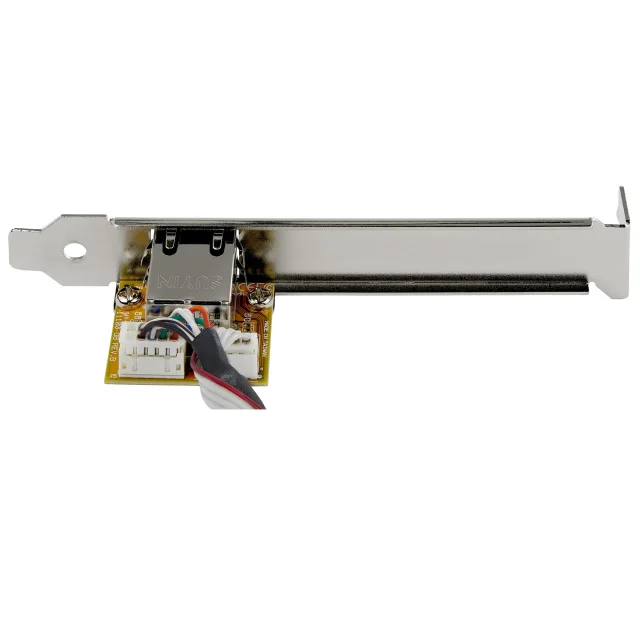

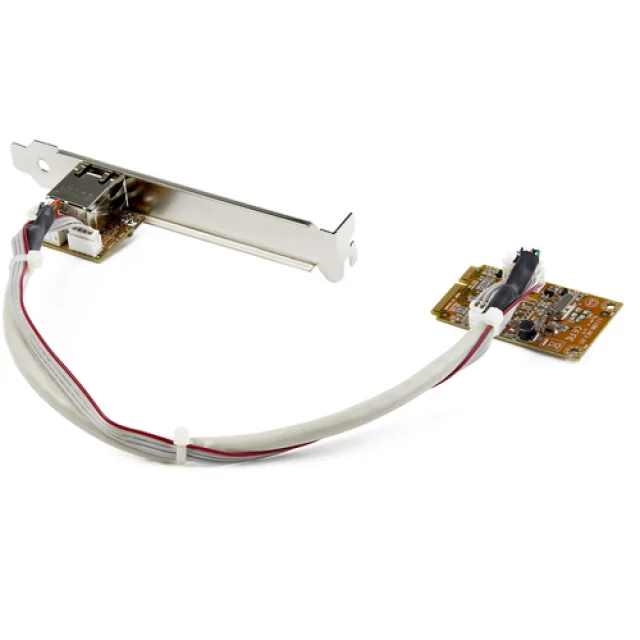

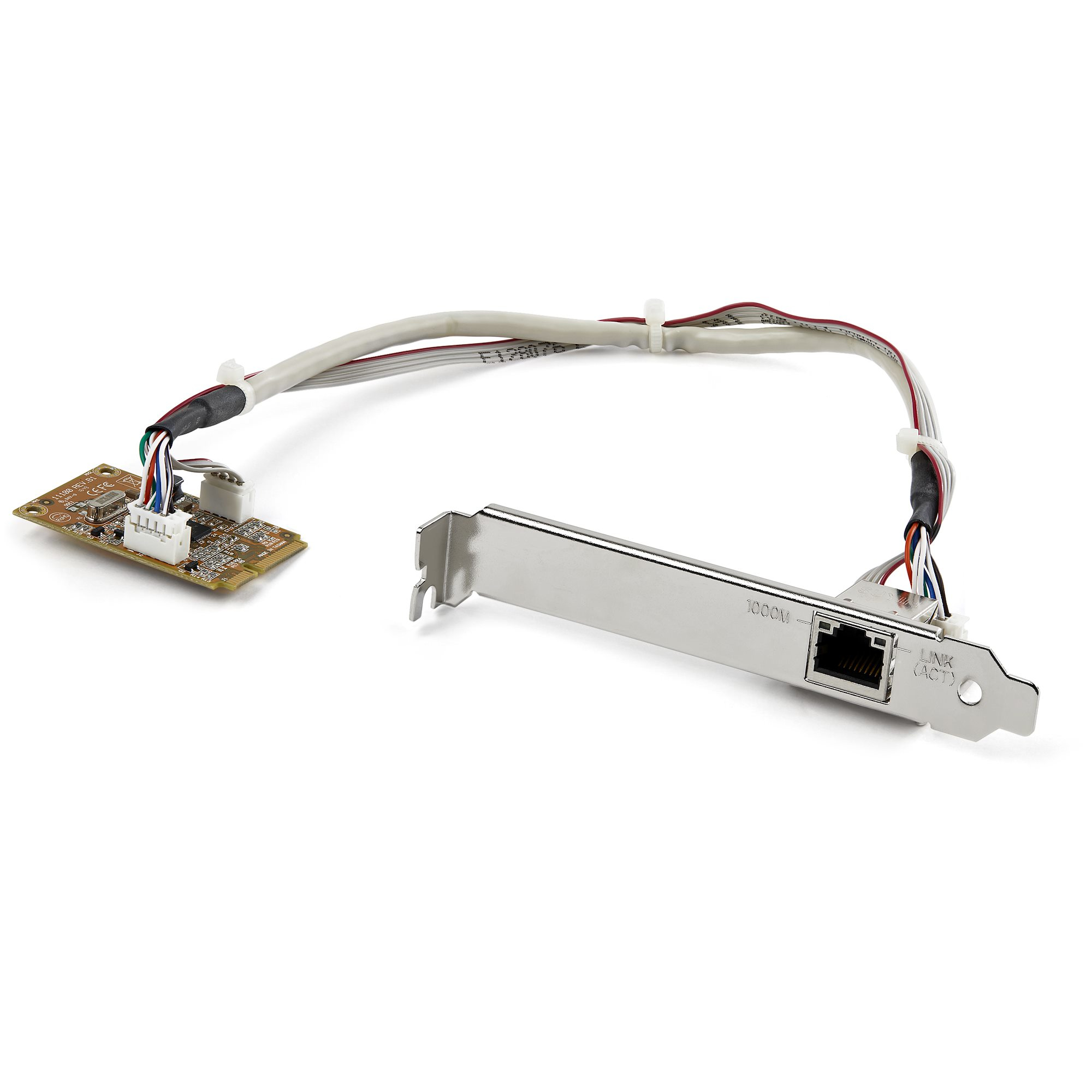

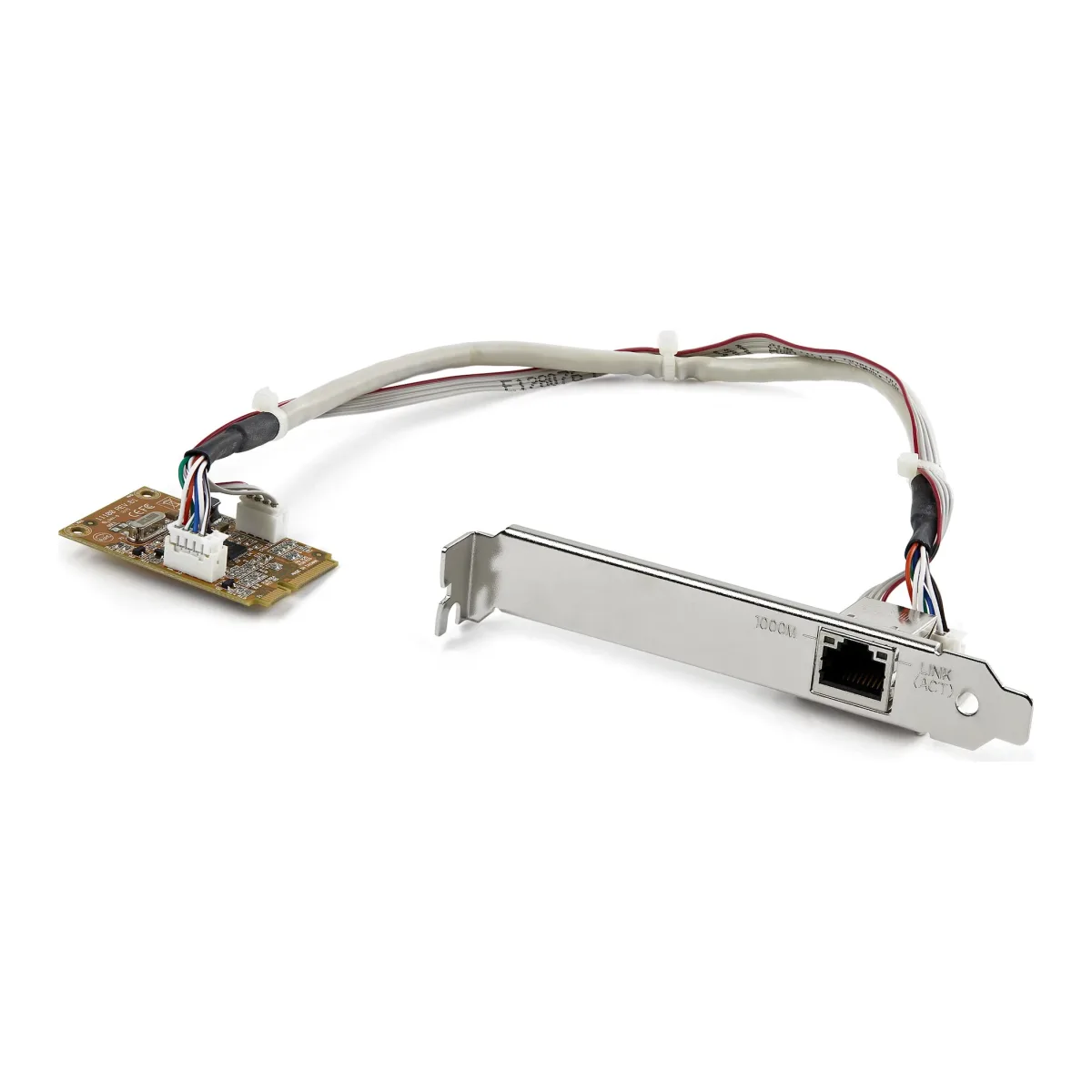

Startech Mini PCIe Card - 10/100/1000Mbps RJ45 Port - IEEE 802.3 - Jumbo Frame - Network Card (ST1000SMPEX) - Network adapter - PCIe Mini Card - Gigabit Ethernet

Description

Manufacturer Code: ST1000SMPEX

Overview

Startech Mini PCIe Card - 10/100/1000Mbps RJ45 Port - IEEE 802.3 - Jumbo Frame - Network Card (ST1000SMPEX) - Network adapter - PCIe Mini Card - Gigabit Ethernet is available through DCS Components. It sits within the NIC & Network Adapters category.

Key product details

• 10/100/1000Mbps RJ45 Port
• IEEE 802.3
• Jumbo Frame
• Network Card (ST1000SMPEX)
• Network adapter

Procurement and setup support

Available for quote while live availability remains in stock. DCS can help with procurement, compatibility checks, configuration planning, installation support and long-term managed IT lifecycle support.

EAN: 0065030846554

Specifications

Ports & interfaces

Connectivity technology	Wired
Host interface	Mini PCI Express
Interface	Ethernet
Ethernet LAN (RJ-45) ports	1

Network

Maximum data transfer rate	1000 Mbit/s
Networking standards	IEEE 802.1Q, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x
Ethernet LAN	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s
Wake-on-LAN ready	Yes
Auto MDIX IEEE	Yes
Full duplex	Yes
Jumbo frames support	Yes
Jumbo frames	9000
VLAN tagging	Yes

Design

Internal	Yes
Chipset	Realtek - RTL8111E
LED indicators	Activity, Link
Mean time between failures (MTBF)	482765 h
Certification	CE, FCC

System requirements

Windows operating systems supported	Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 Pro, Windows 10 Pro x64, Windows 2000, Windows 2000 Professional, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64, Windows Vista, Windows Vista Business, Windows Vista Business x64, Windows Vista Enterprise, Windows Vista Enterprise x64, Windows Vista Home Basic, Windows Vista Home Basic x64, Windows Vista Home Premium, Windows Vista Home Premium x64, Windows Vista Ultimate, Windows Vista Ultimate x64, Windows Vista x64, Windows XP, Windows XP Home, Windows XP Home x64, Windows XP Professional, Windows XP Professional x64
Mac operating systems supported	Mac OS X 10.4 Tiger, Mac OS X 10.5 Leopard
Linux operating systems supported	Yes
Server operating systems supported	Windows Server 2003, Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2, Windows Server 2016, Windows Server 2019

Operational conditions

Operating temperature (T-T)	0 - 55 °C
Storage temperature (T-T)	-20 - 85 °C
Operating relative humidity (H-H)	5 - 95%

Weight & dimensions

Width	30 mm
Depth	51 mm
Height	8 mm
Weight	6 g

Packaging data

Drivers included	Yes
Low-profile bracket	Yes
Quantity per pack	1 pc(s)
Package width	144 mm
Package depth	175 mm
Package height	32 mm
Package weight	150 g

Packaging content

Manual	Yes

Technical details

Compliance certificates	RoHS

Logistics data

Harmonized System (HS) code	85176990

Other features

Flow control support	Yes
