Manufacturer Code: MCM15-MEDIA-CHASSIS
Overview

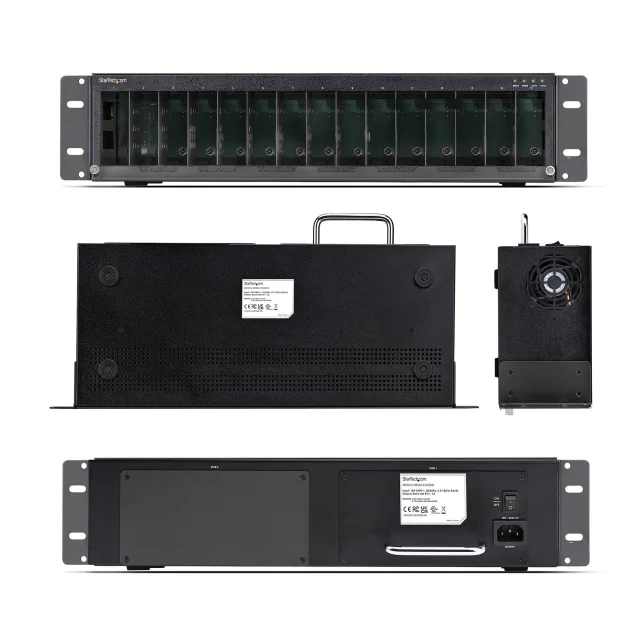

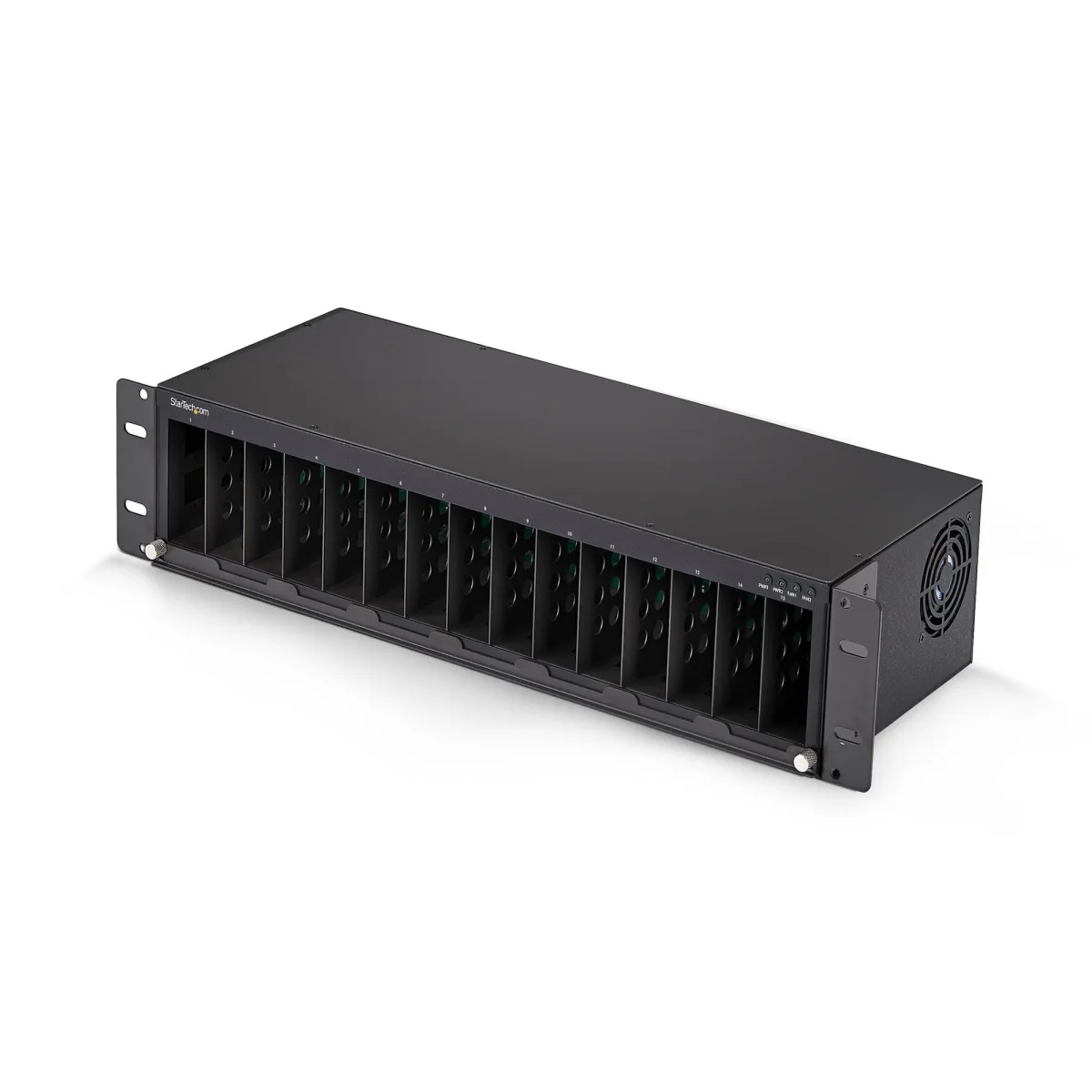

Startech - Modular expansion base - media converter chassis - rack-mountable - TAA Compliant is available through DCS Components. It sits within the Media Converters category.
Key product details
Procurement and setup support
Available for quote while live availability remains in stock. DCS can help with procurement, compatibility checks, configuration planning, installation support and long-term managed IT lifecycle support.
EAN: 0065030917056
| Rack mounting | Yes |
|---|---|
| LED indicators | Fan, Power |
| Material | Metal |
| Number of slots | 15 |
| Product colour | Black |
| Number of fans | 2 fan(s) |
| Mean time between failures (MTBF) | 50000 h |
| Compliance certificates | CE, Federal Communications Commission (FCC), RoHS, Trade Agreements Act (TAA) |
| Compatible products | MCM Series |
| AC input voltage | 100 - 240 V |
|---|---|
| Output voltage | 48 V |
| Output current | 4.2 A |
| Included power plug types | EU, NA, UK |
| Operating temperature (T-T) | 0 - 50 °C |
|---|---|
| Storage temperature (T-T) | -20 - 70 °C |
| Operating relative humidity (H-H) | 5 - 90% |
| Width | 438 mm |
|---|---|
| Depth | 200 mm |
| Height | 103 mm |
| Cables included | AC |
|---|---|
| Manual | Yes |
| Package width | 274 mm |
| Package depth | 508 mm |
| Package height | 170 mm |
| Package weight | 5.7 kg |
| Master (outer) case width | 300 mm |
|---|---|
| Master (outer) case length | 540 mm |
| Master (outer) case height | 383 mm |
| Products per master (outer) case | 2 pc(s) |
