Manufacturer Code: MCM7-MEDIA-CHASSIS
Overview

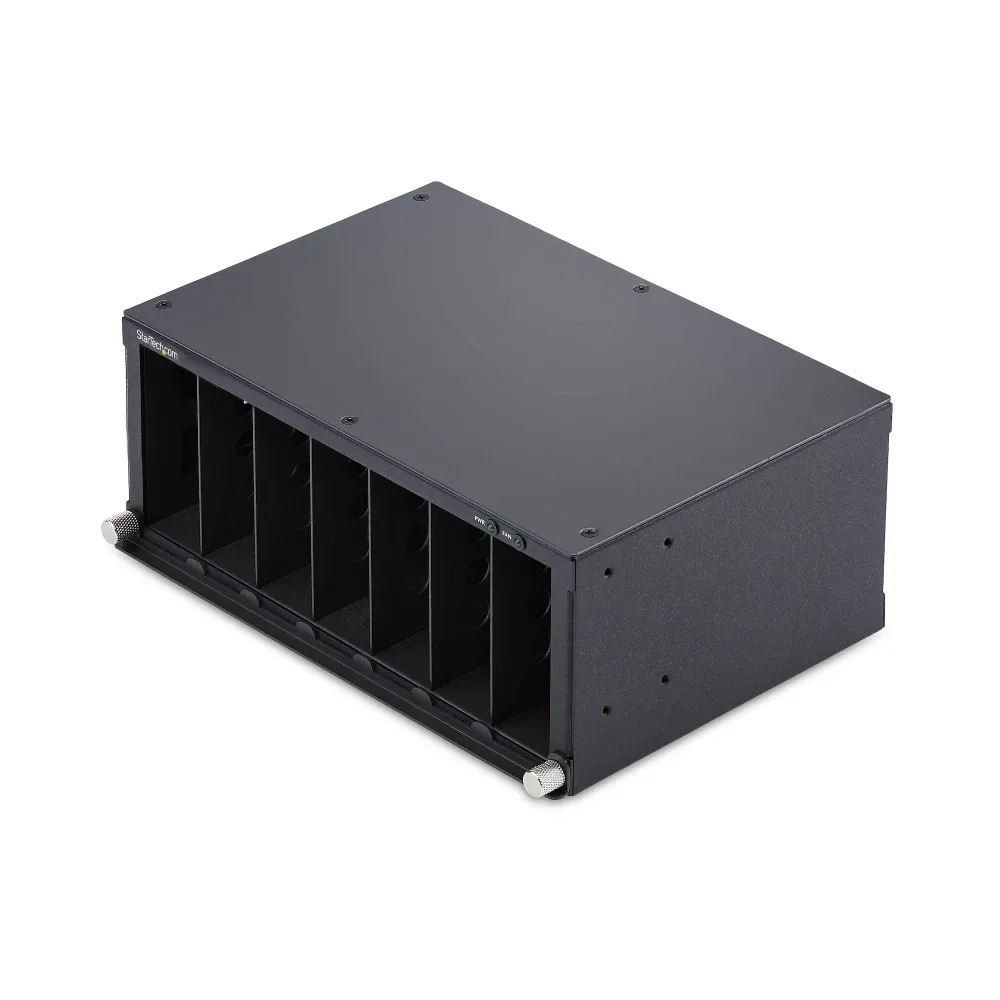

Startech - Modular expansion base - media converter chassis - rack-mountable - TAA Compliant is available through DCS Components. It sits within the Media Converters category.
Key product details
Procurement and setup support
Available for quote while live availability remains in stock. DCS can help with procurement, compatibility checks, configuration planning, installation support and long-term managed IT lifecycle support.
EAN: 0065030917070
| Rack mounting | Yes |
|---|---|
| LED indicators | Fan, Power |
| Material | Metal |
| Number of slots | 7 |
| Product colour | Black |
| Mean time between failures (MTBF) | 50000 h |
| Compliance certificates | CE, Federal Communications Commission (FCC), RoHS, Trade Agreements Act (TAA) |
| Compatible products | MCM Series |
| AC input voltage | 100 - 240 V |
|---|---|
| Output voltage | 48 V |
| Output current | 4.2 A |
| Included power plug types | EU, NA, UK |
| Operating temperature (T-T) | 0 - 50 °C |
|---|---|
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 5 - 90% |
| Width | 417 mm |
|---|---|
| Depth | 140 mm |
| Height | 88.5 mm |
| Cables included | AC |
|---|---|
| Manual | Yes |
| Package width | 216 mm |
| Package depth | 316 mm |
| Package height | 153 mm |
| Package weight | 2.6 kg |
| Master (outer) case width | 405 mm |
|---|---|
| Master (outer) case length | 465 mm |
| Master (outer) case height | 360 mm |
| Products per master (outer) case | 5 pc(s) |
