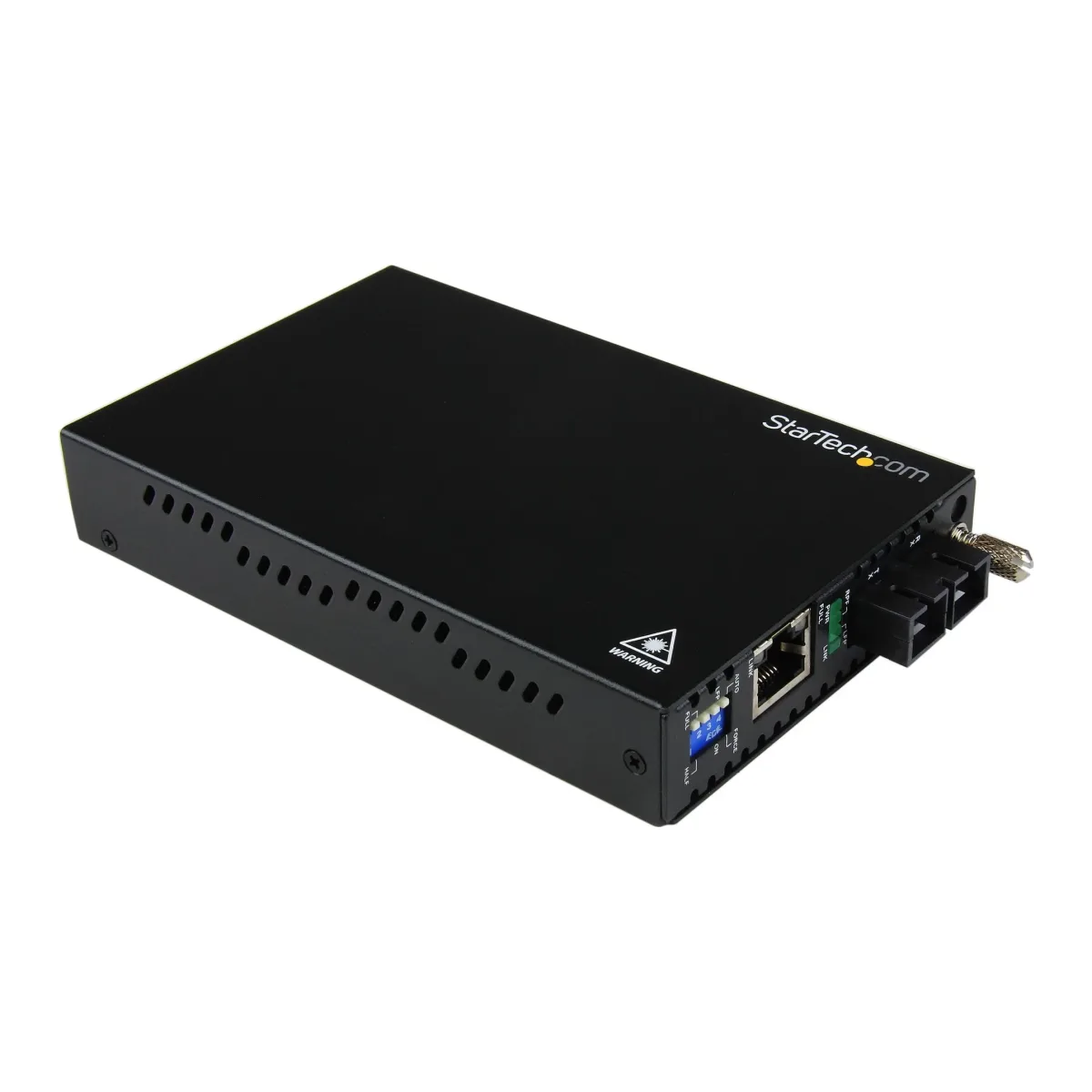

Startech Multimode (MM) SC Fiber Media Converter for 1Gbe Network - 550m Range - Gigabit Ethernet -Remote Monitoring - 850nm (ET91000SC2) - Fibre media converter - 1GbE - 1000Base-LX, 1000Base-SX, 1000Base-T - RJ-45 / SC multi-mode - up to 550 m - 850 nm - for P/N: ETCHS2U, SVA12M2NEUA, SVA12M5NA

Description

Convert and extend a Gigabit Ethernet connection up to 550 m / 1804 ft over Multi Mode SC fiber

The ET91000SC2 1000 Mbps Gigabit Multimode Fiber Media Converter (SC, 550m) lets you extend a Gigabit Ethernet network over multimode fiber, at distances up to 550m (1804 ft).

A cost-effective solution for connecting a Gigabit Ethernet (1000Base-T) network to remote network segments over a (1000Base-SX) fiber backbone, the GbE to MM fiber converter supports full Gigabit speeds for ideal network performance and scalability. Designed to offer a durable and convenient Ethernet to fiber solution, this Ethernet to SC Fiber converter features an all-steel chassis, and a simple plug-and-play installation with minimal configuration required.

For added versatility, the fiber media converter supports standalone operation, or installation into the 20 Slot, 2U Rackmount Chassis (ETCHS2U).

Backed by a StarTech.com 2-year warranty and free lifetime technical support.

The StarTech.com Advantage

- Link loss forwarding, remote status monitoring help ensure maximum up-time
- Provides Ethernet to Fiber conversion as a standalone device, or can be installed into the ETCHS2U 20 slot chassis for added versatility
- Rugged steel casing for durability in harsh environments

Specifications

Network

Maximum data transfer rate	2000 Mbit/s
Ethernet interface type	Gigabit Ethernet
Auto MDI/MDI-X	Yes
Duplex system	Full, Half

Performance

Maximum transfer distance	550 m
Wavelength	850 nm
Wavelength-division multiplexing (WDM)	No
Fiber mode structure	Multi-mode
Mean time between failures (MTBF)	65000 h

Features

Internal	No
Product colour	Black
Housing material	Steel

Ports & interfaces

Connectivity technology	Wired
Ethernet LAN (RJ-45) ports	1
Fiber optic connector	SC

Power

Input voltage	115 - 230 V
Input current	0.36 A
Output voltage	12 V
Output current	1.6 A
Power consumption (typical)	4 W
External power adapter	Yes
Power plug type	Type M

Weight & dimensions

Width	90 mm
Depth	150 mm
Height	25 mm
Weight	562 g

Operational conditions

Operating temperature (T-T)	0 - 60 °C
Storage temperature (T-T)	-10 - 70 °C
Operating relative humidity (H-H)	10 - 90%

Packaging content

AC adapter included	Yes
Manual	Yes

Packaging data

Package width	205 mm
Package depth	138 mm
Package height	89 mm
Package weight	766 g

Certificates

Compliance certificates	RoHS
Certification	CE, FCC

Logistics data

Harmonized System (HS) code	85176990
