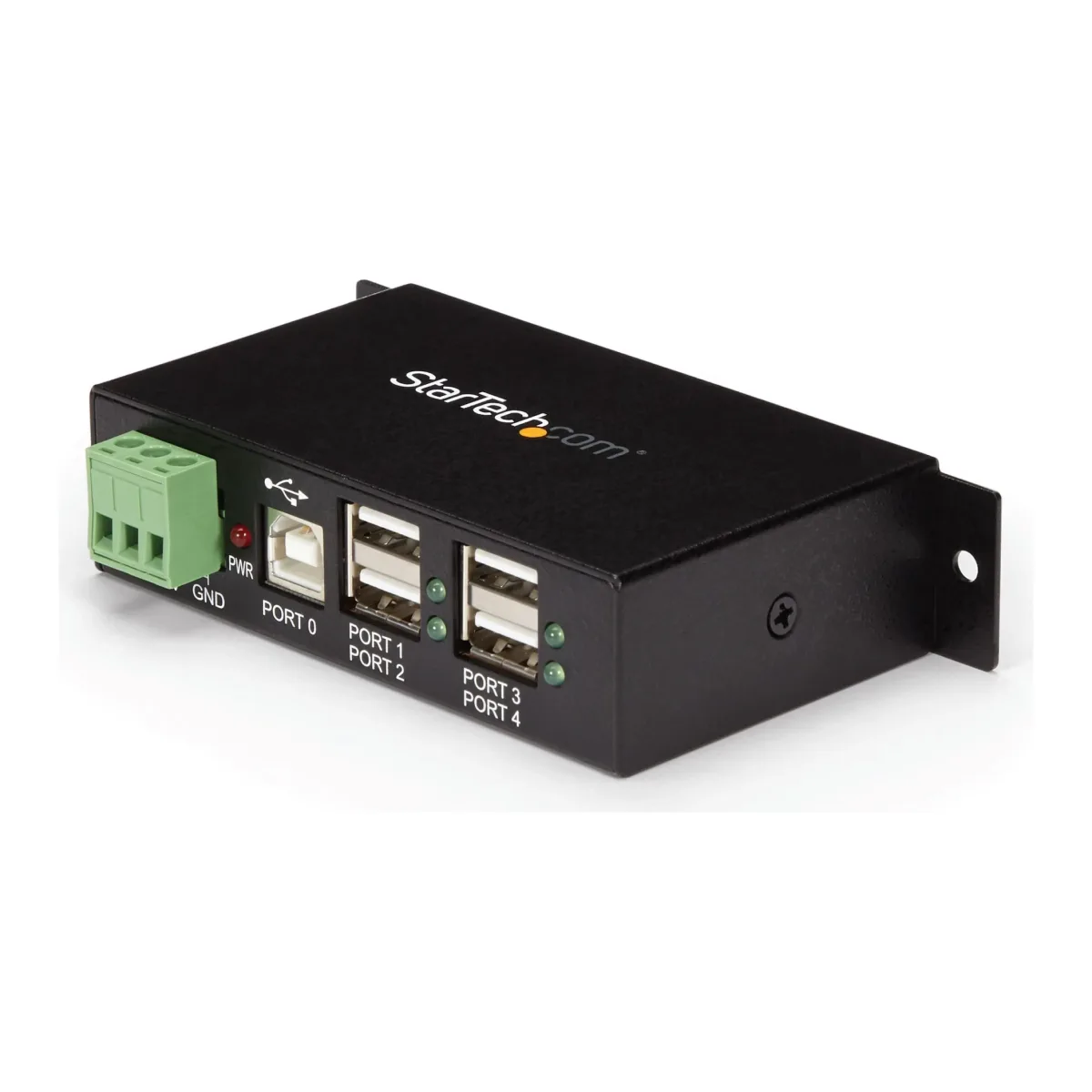

Startech Rackmount USB 2.0 Hub - 4 Port Rugged Industrial USB 2.0 Hub - Hub - 4 x USB 2.0 - DIN rail mountable - DC power - for P/N: ITB20D3250, MSDREADU2OTG, USB2HAB15, USB2HAB30AC, USB2HAB50AC, USB2HABM1, USB2HABM6RA

Description

Manufacturer Code: ST4200USBM

Overview

Startech Rackmount USB 2.0 Hub - 4 Port Rugged Industrial USB 2.0 Hub - Hub - 4 x USB 2.0 - DIN rail mountable - DC power - for P/N: ITB20D3250, MSDREADU2OTG, USB2HAB15, USB2HAB30AC, USB2HAB50AC, USB2HABM1, USB2HABM6RA is available through DCS Components. It sits within the USB Hubs & Controllers category.

Key product details

• 4 Port Rugged Industrial USB 2.0 Hub
• Hub
• 4 x USB 2.0
• DIN rail mountable
• DC power

Procurement and setup support

Available for quote while live availability remains in stock. DCS can help with procurement, compatibility checks, configuration planning, installation support and long-term managed IT lifecycle support.

EAN: 0065030831024

Specifications

Ports & interfaces

Host interface	USB 2.0 Type-B
Hub interfaces	USB 2.0
USB 2.0 ports quantity	4
Ports quantity	4
Terminal block port	Yes

Features

Data transfer rate	480 Mbit/s
Product colour	Black
Housing material	Steel
LED indicators	Power
Plug and Play	Yes
Certification	CE, FCC, TAA, RoHS

Power

Input voltage	7 - 24 V

Weight & dimensions

Width	57.3 mm
Depth	114 mm
Height	26 mm
Weight	207 g

Packaging data

Package width	210 mm
Package depth	146 mm
Package height	40 mm
Package weight	400 g

Packaging content

Cables included	USB
Manual	Yes
DIN rail kit included	Yes

Operational conditions

Operating temperature (T-T)	0 - 55 °C
Storage temperature (T-T)	-20 - 85 °C
Operating relative humidity (H-H)	5 - 95%

Performance

Mean time between failures (MTBF)	193317 h

Logistics data

Master (outer) case width	447 mm
Master (outer) case length	527 mm
Master (outer) case height	339 mm
Products per master (outer) case	50 pc(s)
Harmonized System (HS) code	84719000

Other features

Chipset	Renesas/NEC - µPD720114
