Manufacturer Code: 4P6G-PCIE-SATA-CARD
Overview

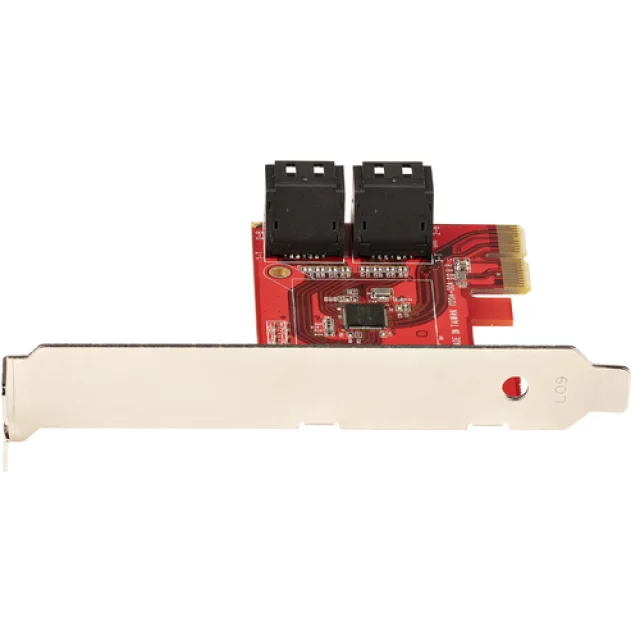

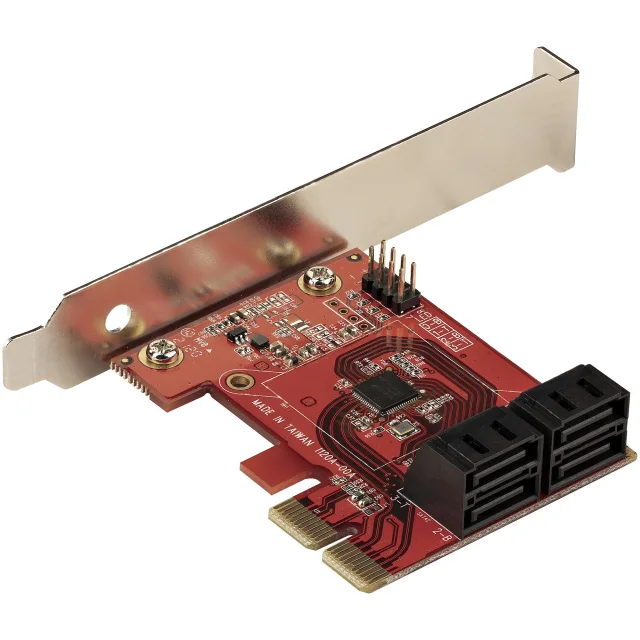

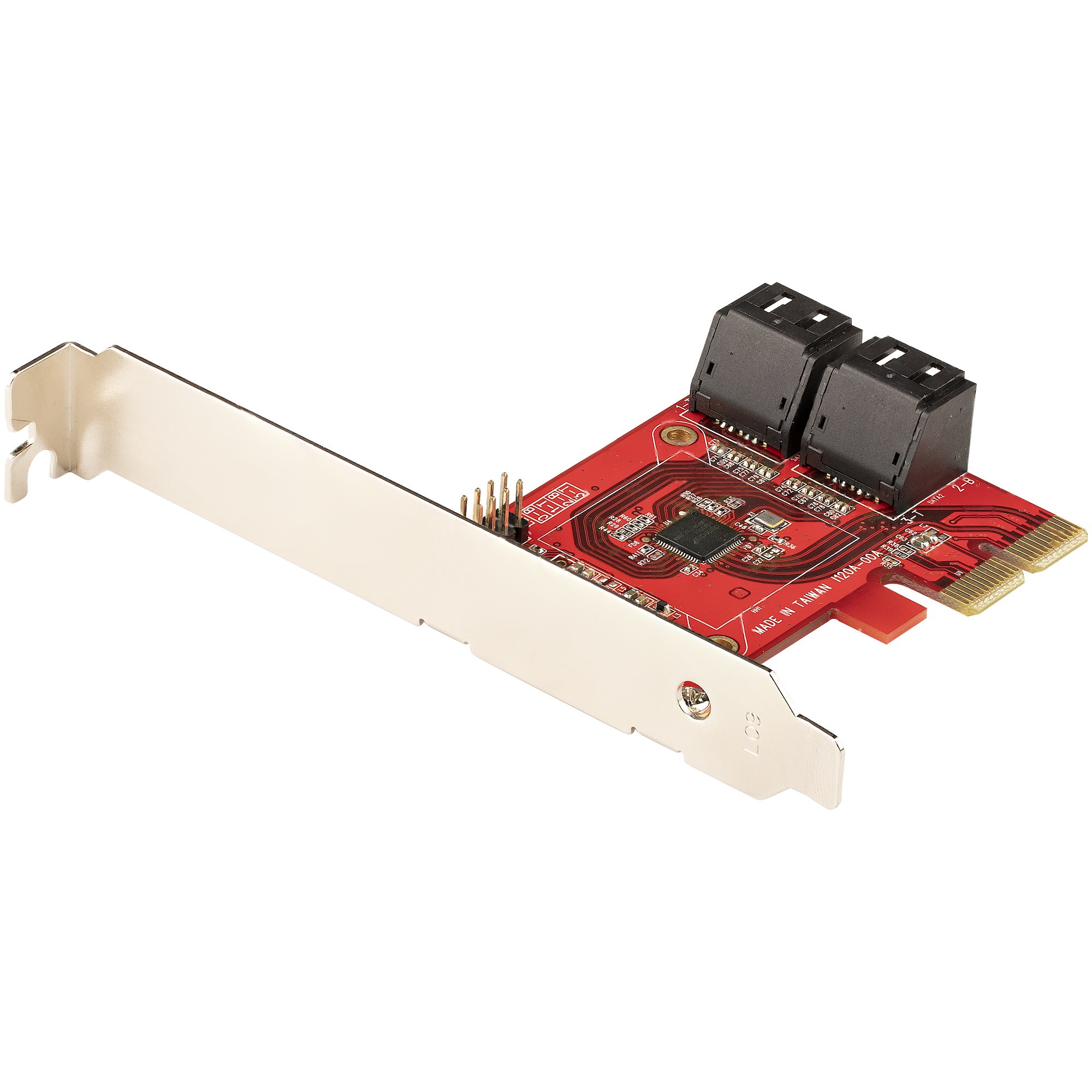

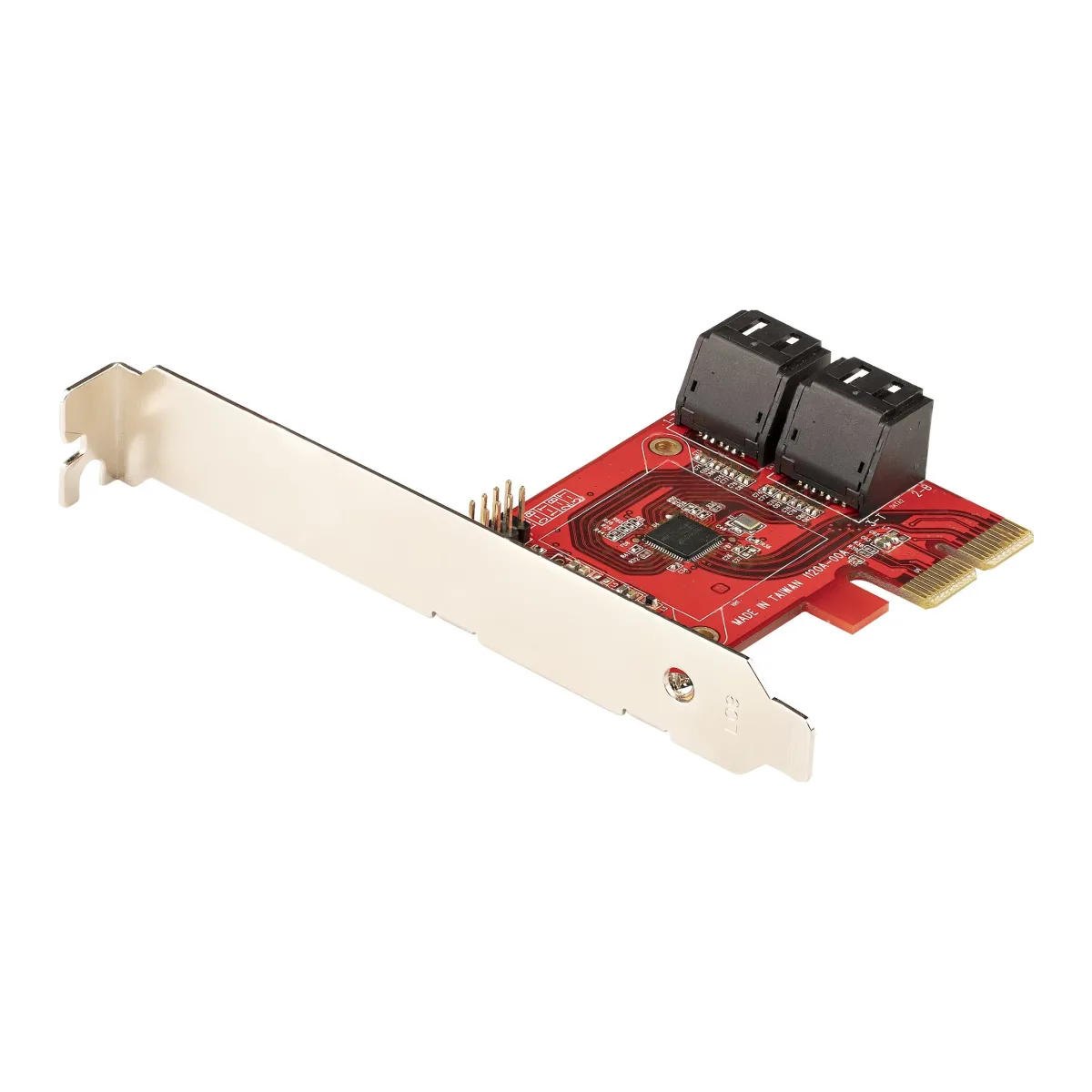

Startech SATA PCIe Card, 4 Port PCIe SATA Expansion card, 6Gbps SATA Card, Low/Full Profile, SATA Stacked Connectors, ASM1164 Non-Raid SATA Controller Card - PCI Express to SATA Converter - Storage controller - SATA 6Gb/s - low profile - PCIe 3.0 x2 - red is available through DCS Components. It sits within the Storage Enclosures & RAID category.
Key product details
Procurement and setup support
Available for quote while live availability remains in stock. DCS can help with procurement, compatibility checks, configuration planning, installation support and long-term managed IT lifecycle support.
EAN: 0065030893879
| Host interface | PCIe |
|---|---|
| Output interface | SATA |
| Expansion card standard | PCIe 3.0 |
| SATA revision | 3.0 |
| Internal SATA ports quantity | 4 |
| Port multiplier | Yes |
| Internal | Yes |
|---|---|
| Product colour | Red |
| Chipset | ASMedia - ASM1164 |
|---|---|
| Data transfer rate (max) | 6 Gbit/s |
| S.M.A.R.T. support | Yes |
| TRIM support | Yes |
| Operating temperature (T-T) | 0 - 85 °C |
|---|---|
| Storage temperature (T-T) | -25 - 85 °C |
| Operating relative humidity (H-H) | 20 - 80% |
| Windows operating systems supported | Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64 |
|---|---|
| Mac operating systems supported | Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 10.15.3 Catalina, Mac OS X 11.0 Big Sur, Mac OS X 13.0 Ventura |
| Linux operating systems supported | Yes |
| Server operating systems supported | Windows Server 2012 R2, Windows Server 2016, Windows Server 2019 |
| Compliance certificates | CE, RoHS |
|---|
| Width | 56 mm |
|---|---|
| Depth | 70 mm |
| Height | 16 mm |
| Weight | 75 g |
| Mounting brackets included | Yes |
|---|---|
| Quick installation guide | Yes |
| Package width | 142 mm |
| Package depth | 170 mm |
| Package height | 30 mm |
| Package weight | 115 g |
| Harmonized System (HS) code | 84733020 |
|---|---|
| Products per master (outer) case | 60 pc(s) |
| Master (outer) case width | 365 mm |
| Master (outer) case length | 380 mm |
| Master (outer) case height | 510 mm |
