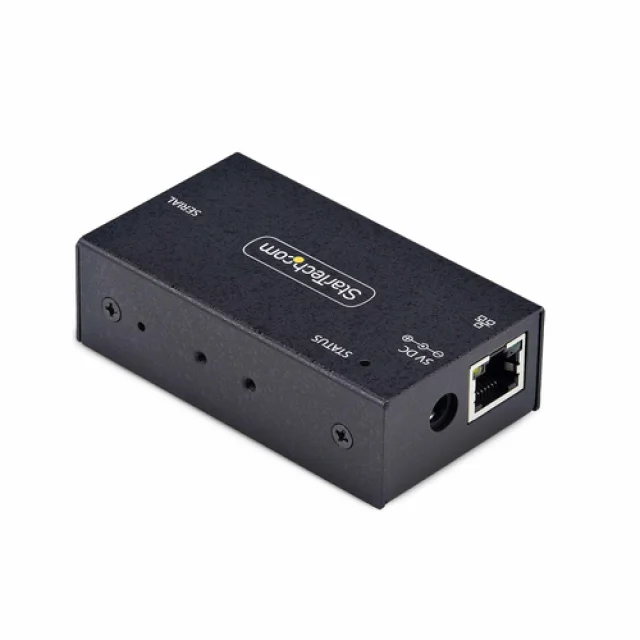

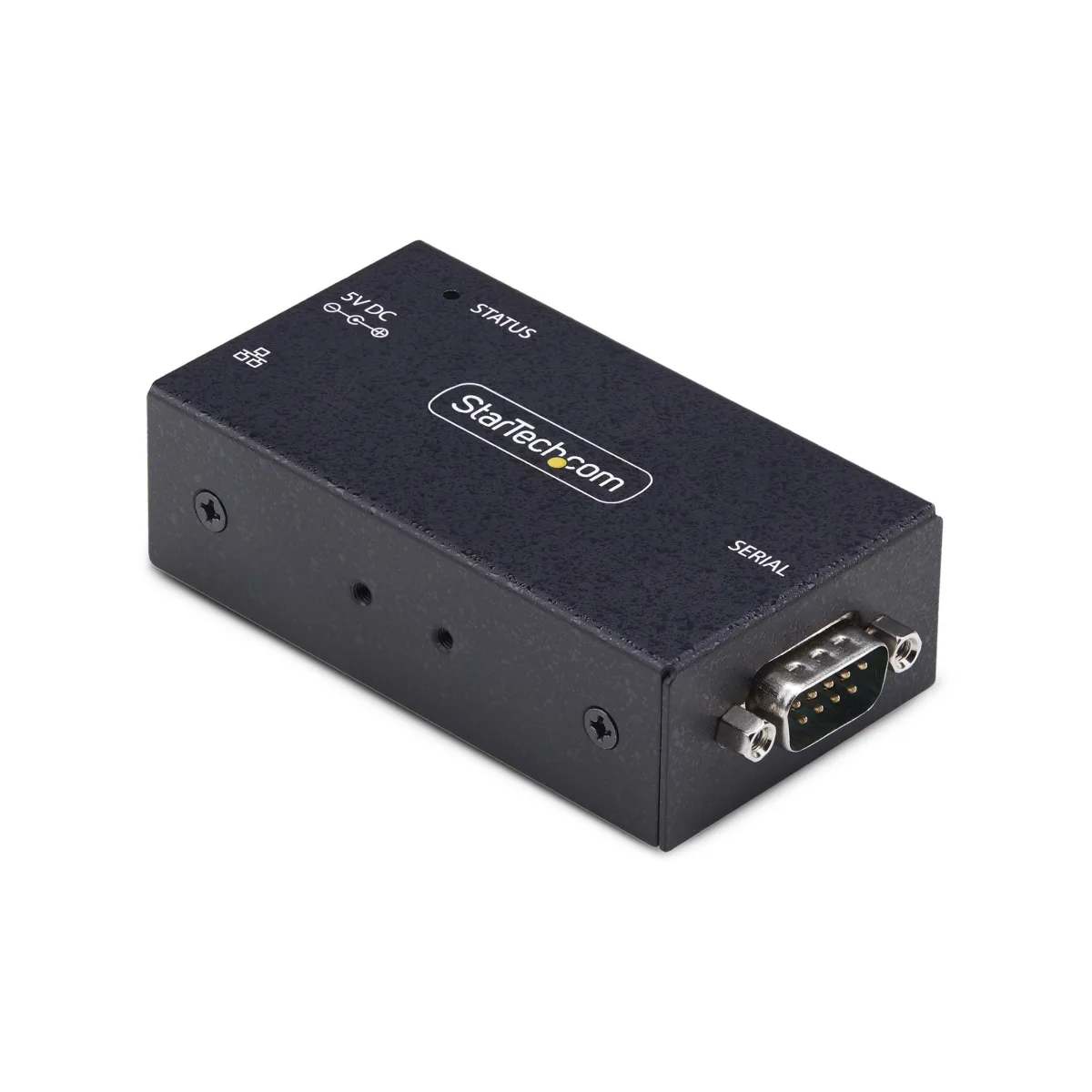

Startech Serial to Ethernet Adapter, IP LAN to RS232 DB9 Converter - Device server - 100Mb LAN, RS-232 - wall / DIN rail mountable - TAA Compliant

Description

Manufacturer Code: I13-SERIAL-ETHERNET

Overview

Startech Serial to Ethernet Adapter, IP LAN to RS232 DB9 Converter - Device server - 100Mb LAN, RS-232 - wall / DIN rail mountable - TAA Compliant is available through DCS Components. It sits within the Cables & Adapters category.

Key product details

• Device server
• 100Mb LAN, RS-232
• wall / DIN rail mountable
• TAA Compliant

Procurement and setup support

Available for quote while live availability remains in stock. DCS can help with procurement, compatibility checks, configuration planning, installation support and long-term managed IT lifecycle support.

EAN: 0065030905978

Specifications

Network

Networking standards	IEEE 802.3i, IEEE 802.3u
Auto-negotiation	Yes
Auto MDI/MDI-X	Yes
Full duplex	Yes

Technical details

Host interface	RS-232
Output interface	RJ-45
Connector 1	DB-9
Connector 2	RJ-45
Connector gender	Female/Female
Mounting	Wall/DIN
Baud rate	921.6 Kbit/s
Product colour	Black
Data bits	7, 8
Parity bit	Even, Mark, No, Odd, Space
Stop bits	1, 2
Compliance certificates	Trade Agreements Act (TAA)
Flow Control type	No, RTS/CTS, XON/XOFF
Electrostatic Discharge (ESD) protection (air)	15 kV
Electrostatic Discharge (ESD) protection (contact)	8 kV

Operational conditions

Operating temperature (T-T)	0 - 60 °C
Storage temperature (T-T)	-20 - 75 °C
Operating relative humidity (H-H)	5 - 95%

Weight & dimensions

Width	82 mm
Depth	46 mm
Height	25 mm
Weight	155 g
Package width	166 mm
Package depth	242 mm
Package height	55 mm
Package weight	5 kg

Power

Input voltage	100 - 240 V
Input current	0.48 A
Output voltage	5 V
Output current	3 A
Power consumption (typical)	15 W

Material

Housing material	Steel

Indication

LED indicators	Yes

Packaging content

Mounting brackets included	Yes
Number of screws included	4 pc(s)
AC adapter included	Yes
DIN rail included	Yes

Packaging data

Manual	Yes

Software

Windows operating systems supported

Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 Enterprise, Windows 11 Enterprise x64, Windows 11 Home, Windows 11 Pro, Windows 11 x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows Vista, Windows Vista Business, Windows Vista Business x64, Windows Vista Enterprise, Windows Vista Enterprise x64, Windows Vista Home Basic, Windows Vista Home Premium, Windows Vista Home Premium x64, Windows Vista Ultimate, Windows Vista Ultimate x64, Windows XP, Windows XP Home, Windows XP Home x64, Windows XP Professional, Windows XP Professional x64

Logistics data

Products per master (outer) case	15 pc(s)
Master (outer) case length	420 mm
Master (outer) case width	410 mm
Master (outer) case height	280 mm
