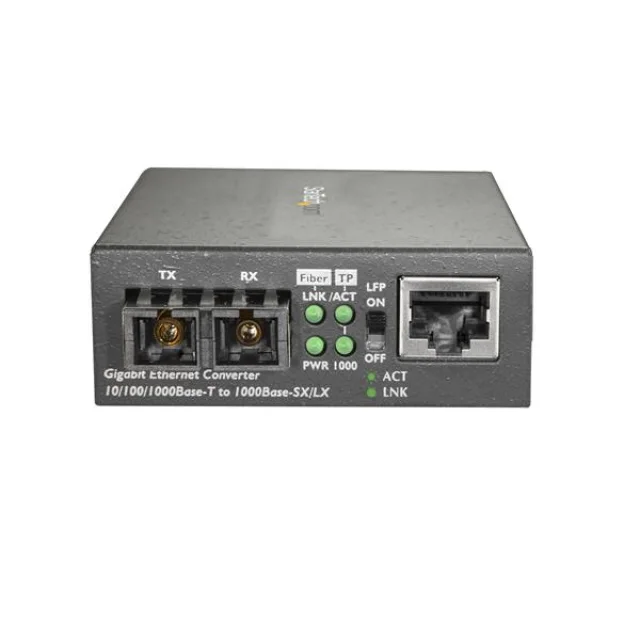

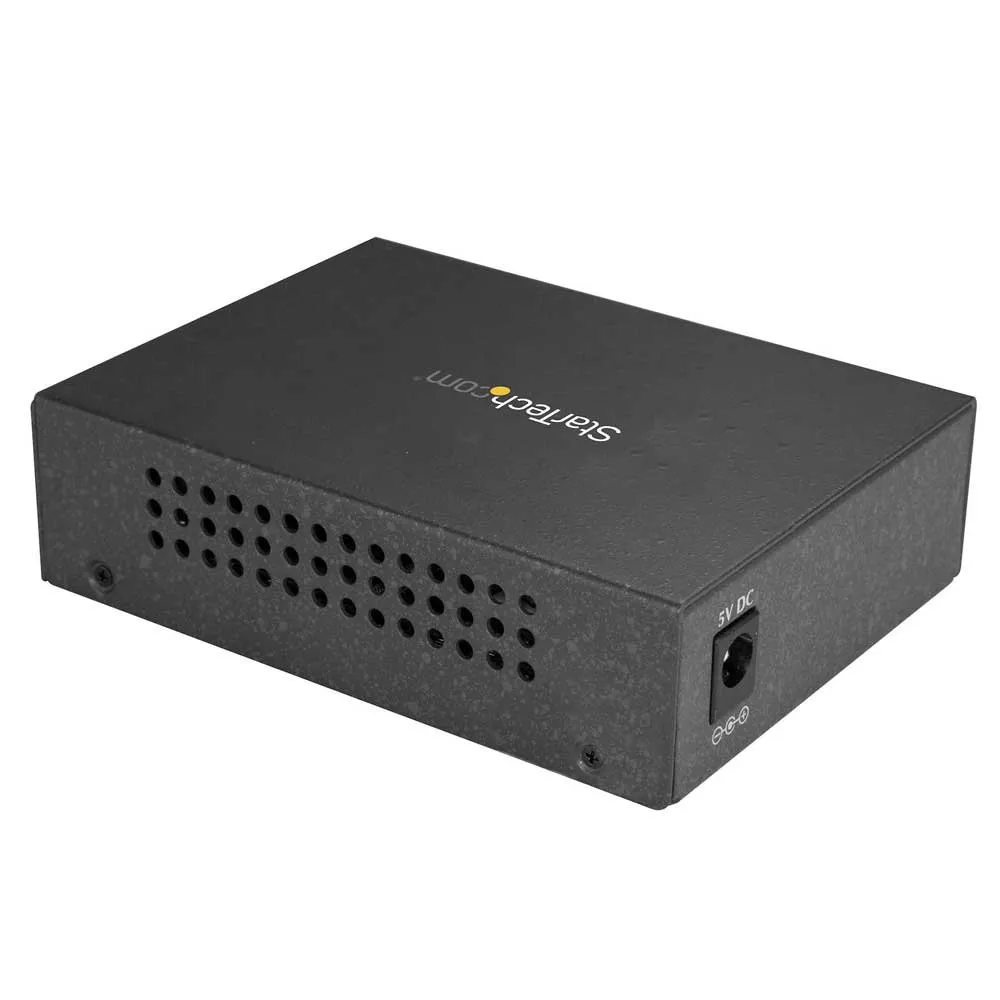

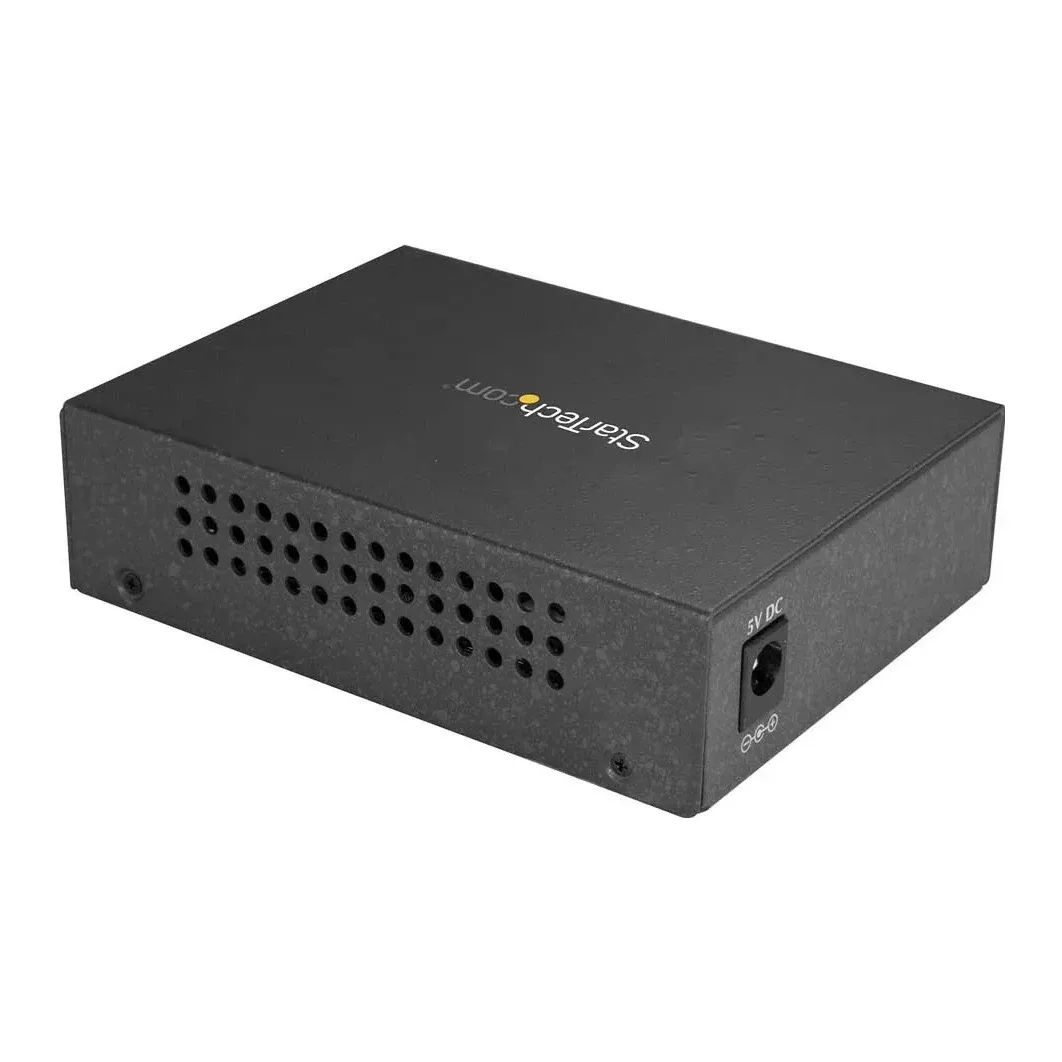

Startech Singlemode (SM) SC Fiber Media Converter for 10/100/1000 Network, 10km, Gigabit Ethernet, 1310nm, w/ Auto Negotiation, Gigabit Ethernet to Single Mode (SMF) SC Fiber Converter - Ethernet Over Fiber (MCMGBSCSM10) - Fibre media converter - 1GbE - over fibre optic - 1000Base-LX, 100Base-TX, 1000Base-T - RJ-45 / SC single-mode - up to 10 km - 1310 nm

Description

Manufacturer Code: MCMGBSCSM10

Overview

Startech Singlemode (SM) SC Fiber Media Converter for 10/100/1000 Network, 10km, Gigabit Ethernet, 1310nm, w/ Auto Negotiation, Gigabit Ethernet to Single Mode (SMF) SC Fiber Converter - Ethernet Over Fiber (MCMGBSCSM10) - Fibre media converter - 1GbE - o is available through DCS Components. It sits within the Media Converters category.

Key product details

• Ethernet Over Fiber (MCMGBSCSM10)
• Fibre media converter
• 1GbE
• o

Procurement and setup support

Available for quote while live availability remains in stock. DCS can help with procurement, compatibility checks, configuration planning, installation support and long-term managed IT lifecycle support.

EAN: 0065030878241

Specifications

Network

Maximum data transfer rate	1000 Mbit/s
Converter input interface	10Base-T, 100Base-TX, 1000Base-T
Converter output interface	100Base-LX
Networking standards	IEEE 802.1Q, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x
Ethernet interface type	Fast Ethernet, Gigabit Ethernet
Ethernet LAN data rates	10,100,1000 Mbit/s
Jumbo frames support	Yes
Jumbo frames	9000
Auto MDI/MDI-X	Yes
Store-and-forward	Yes
Duplex system	Full

Performance

Maximum transfer distance	10000 m
Wavelength	1310 nm
Wavelength-division multiplexing (WDM)	No
Fiber mode structure	Single-mode
Mean time between failures (MTBF)	50000 h

Features

Internal	No
LED indicators	Activity, Link, Power
Product colour	Black

Ports & interfaces

Connectivity technology	Wired
Ethernet LAN (RJ-45) ports	1
Fiber ports quantity	1
Fiber optic connector	SC

Power

Input voltage	100 - 240 V
Input current	0.5 A
Output voltage	5 V
Output current	2.6 A
External power adapter	Yes
Power plug type	Type N

Weight & dimensions

Width	105 mm
Depth	70 mm
Height	26 mm
Weight	196 g

Operational conditions

Operating temperature (T-T)	0 - 50 °C
Storage temperature (T-T)	-10 - 70 °C
Operating relative humidity (H-H)	5 - 90%

Packaging content

AC adapter included	Yes
Quick installation guide	Yes

Packaging data

Package width	138 mm
Package depth	285 mm
Package height	66 mm
Package weight	560 g

Certificates

Compliance certificates	RoHS
Certification	CE, FCC

Logistics data

Harmonized System (HS) code	85176990
