Manufacturer Code: 6-MONITOR-ARM-A
Overview

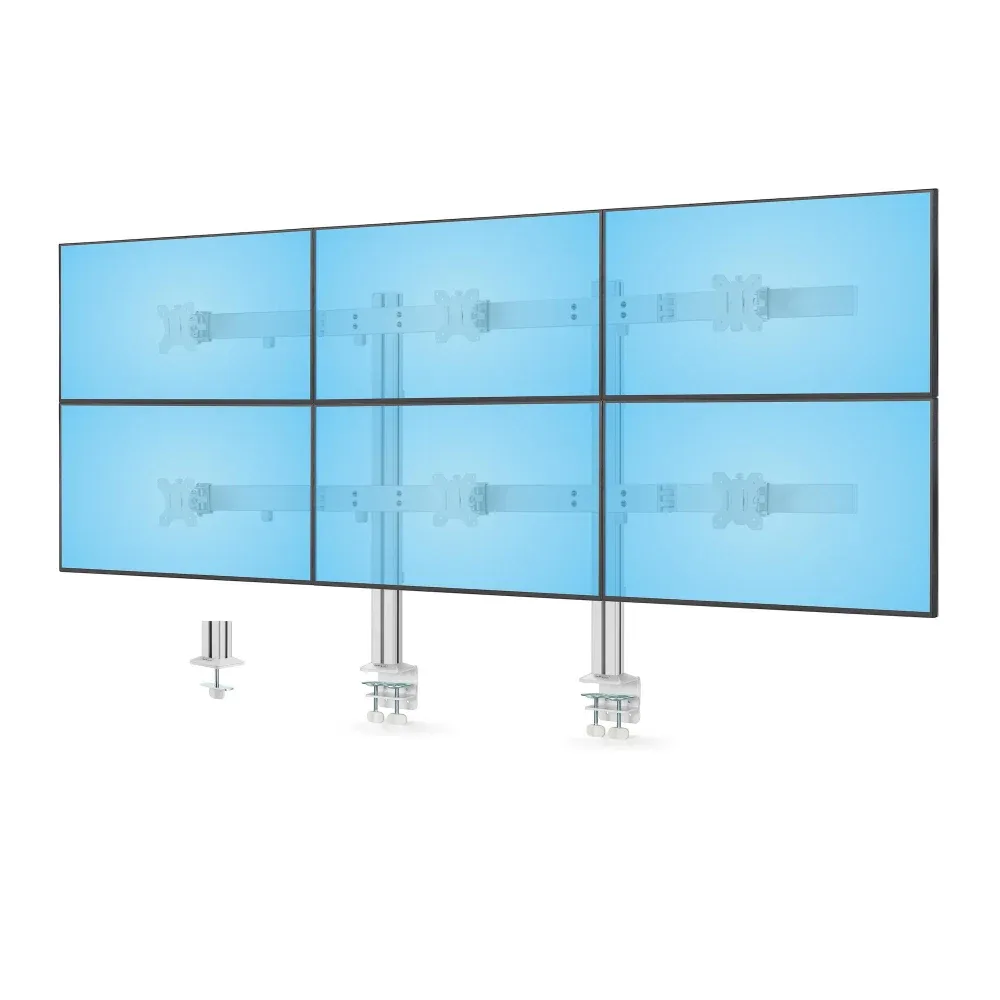

Startech Six-Monitor Desk Mount w/ Crossbar, Up To 32" Screens/17.6lb - Mounting kit - for 6 LCD displays - column, dual - plastic, steel - white - screen size: 17"-32" - desk-mountable is available through DCS Components. It sits within the Display Mounting Kits category.
Key product details
Procurement and setup support
Available for quote while live availability remains in stock. DCS can help with procurement, compatibility checks, configuration planning, installation support and long-term managed IT lifecycle support.
EAN: 065030895323
| Maximum weight capacity | 48 kg |
|---|---|
| Minimum screen size | 43.2 cm (17") |
| Number of displays supported | 6 |
| Maximum weight capacity (per display) | 32 kg |
| Maximum screen size | 81.3 cm (32") |
| Mounting | Clamp/Grommet |
| Mounting type | Desk |
| Minimum VESA mount | 75 x 75 mm |
| Maximum VESA mount | 100 x 100 mm |
| Extension arm (max) | 180.6 cm |
| Desk thickness (min) | 2 cm |
| Desk thickness (max) | 7.5 cm |
| Clamp mount desk thickness (max) | 7.5 cm |
| Grommet mount desk thickness (max) | 4.5 cm |
| Height adjustment | Yes |
|---|---|
| Tilt adjustment | Yes |
| Tilt angle range | -34 - 34° |
| Swivelling | Yes |
| Swivel angle range | -17 - 17° |
| Rotating | Yes |
| Angle of rotation | 360° |
| Cable management | Yes |
| Housing material | Aluminium, Plastic, Steel |
|---|---|
| Product colour | White |
| Anti-theft function | No |
| Width | 1800 mm |
|---|---|
| Depth | 118 mm |
| Height | 863 mm |
| Weight | 14 kg |
| Package width | 1030 mm |
|---|---|
| Package depth | 405 mm |
| Package height | 120 mm |
| Package weight | 15.8 kg |
| Wrench included | Yes |
|---|---|
| Wrench type | Hexagonal wrench |
| Clamp included | Yes |
| Number of cable clips | 12 |
| Number of rubber pads included | 10 pc(s) |
| Number of end caps included | 2 pc(s) |
| Mounting brackets included | Yes |
| Screws included | Yes |
| Number of screws | 138 |
| Number of washers included | 24 |
| Number of spacers included | 24 |
| Grommet base plate included | Yes |
| Grommet plate included | Yes |
| Manual | Yes |
| Master (outer) case width | 1030 mm |
|---|---|
| Master (outer) case length | 405 mm |
| Master (outer) case height | 120 mm |
| Products per master (outer) case | 1 pc(s) |
