Manufacturer Code: SV431DHD4KU
Overview

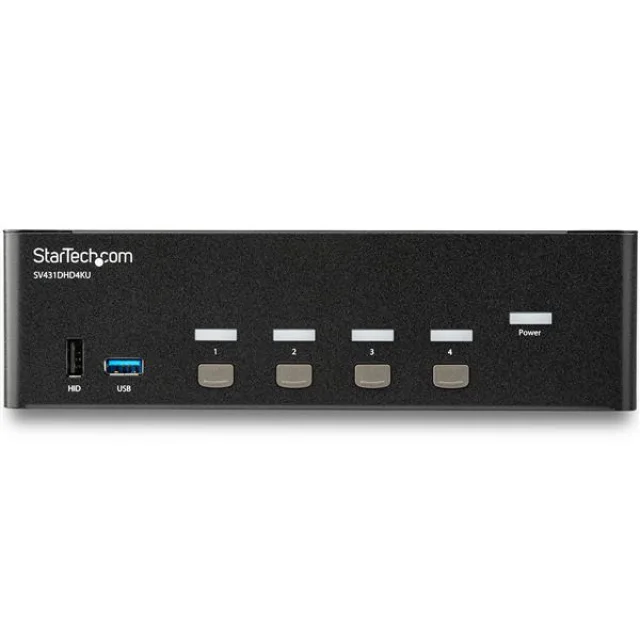

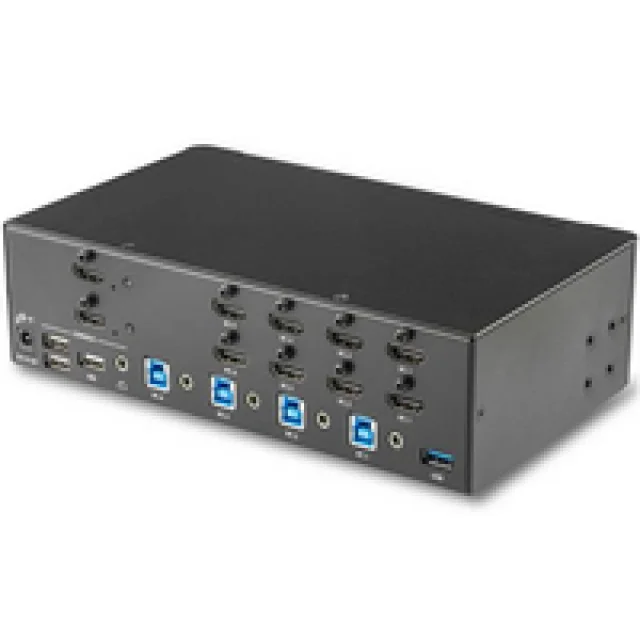

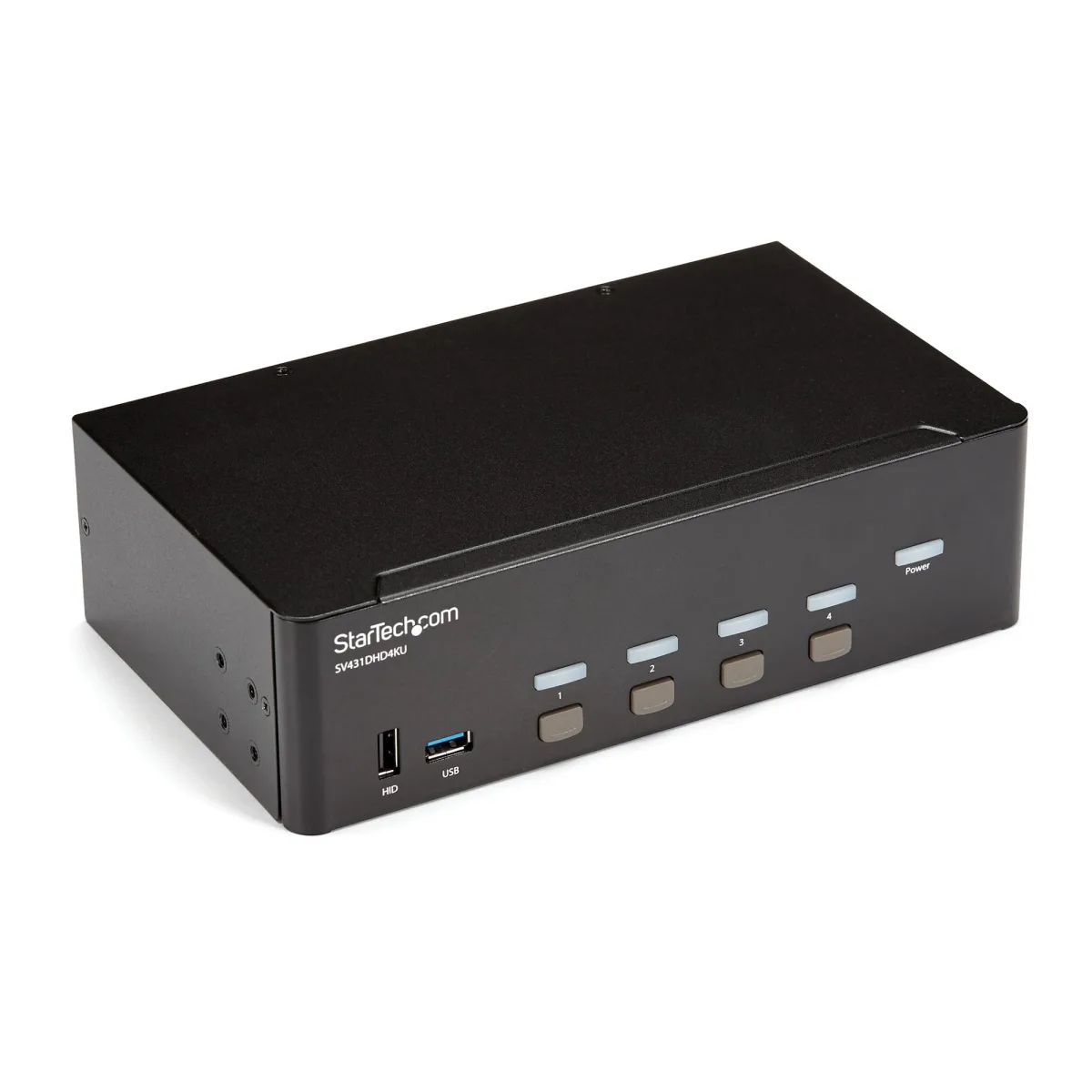

Startech StarTech.com 4-Port Dual Monitor HDMI KVM Switch with Audio & USB 3.0 hub - 4K 30Hz - 4 PC Mac Computer KVM Switch Box for HDMI Display (SV431DHD4KU) - KVM / audio / USB switch - 4 x KVM / audio / USB - rack-mountable is available through DCS Components. It sits within the KVM Switches, Cables & Accessories category.
Key product details
Procurement and setup support
Available for quote while live availability remains in stock. DCS can help with procurement, compatibility checks, configuration planning, installation support and long-term managed IT lifecycle support.
EAN: 0065030840095
| Number of computers controlled | 4 |
|---|---|
| Keyboard port type | USB |
| Mouse port type | USB |
| Video port type | HDMI |
| HDMI ports quantity | 10 |
| Console ports | 3.5mm headphone, HDMI, USB A |
| Console USB ports quantity | 6 |
| USB connector type | USB Type-A |
| Headphone outputs | 4 |
| HD type | 4K Ultra HD |
|---|---|
| Maximum resolution | 3840 x 2160 pixels |
| Data transfer rate (max) | 5 Gbit/s |
| Scan interval | 3,8,15,30 s |
| Rack mounting | Yes |
|---|---|
| Product colour | Black |
| Housing material | Steel |
| LED indicators | Power, Status |
| Hot keys | Yes |
| Mean time between failures (MTBF) | 168000 h |
| Certification | CE, FCC, TAA, REACH |
| Built-in display | No |
|---|
| Power source | AC |
|---|---|
| Input voltage | 100 - 240 V |
| Input current | 0.6 A |
| Output voltage | 12 V |
| Output current | 1.5 A |
| Power consumption (typical) | 18 W |
| External power adapter | Yes |
| Compatible power plug types | AU, EU, JP, UK, US |
| Compliance certificates | RoHS |
|---|
| Operating temperature (T-T) | 0 - 40 °C |
|---|---|
| Storage temperature (T-T) | -10 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
| Width | 130 mm |
|---|---|
| Depth | 220 mm |
| Height | 63 mm |
| Weight | 1.2 kg |
| Package width | 124 mm |
|---|---|
| Package depth | 295 mm |
| Package height | 85 mm |
| Package weight | 1.8 kg |
| Quick installation guide | Yes |
|---|---|
| Rubber feet | Yes |
| IP control | No |
|---|
| Harmonized System (HS) code | 85176200 |
|---|
