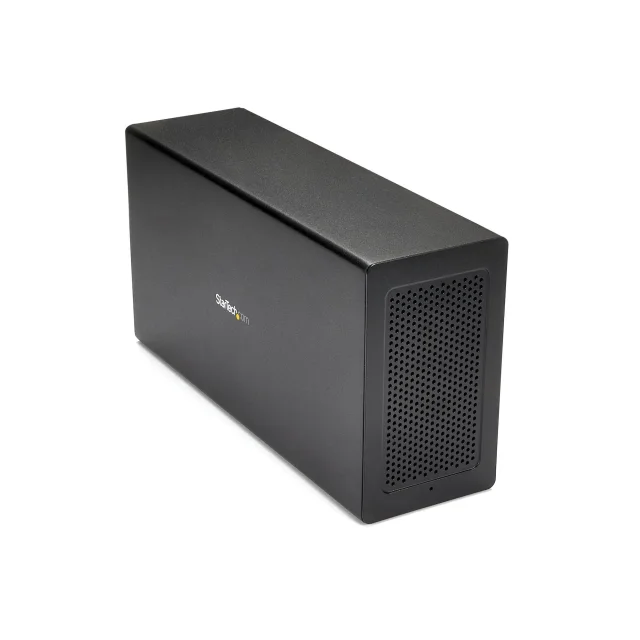

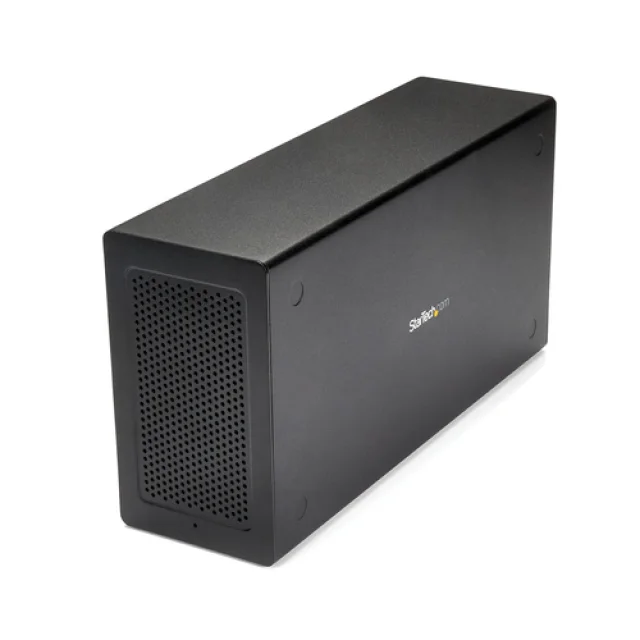

Startech Thunderbolt 3 PCIe Expansion Chassis, External Enclosure Box with 1x PCI-Express Slot, 5K/4K Output Via TB3/DP Ports, TAA - System bus extender - DP - 65 watt - for P/N: TB3DK2DPM2, TB3DOCK2DPPD, TB3DOCK2DPPU

Description

Manufacturer Code: TB31PCIEX16

Overview

Startech Thunderbolt 3 PCIe Expansion Chassis, External Enclosure Box with 1x PCI-Express Slot, 5K/4K Output Via TB3/DP Ports, TAA - System bus extender - DP - 65 Watt - for P/N: TB3DK2DPM2, TB3DOCK2DPPD, TB3DOCK2DPPU is available through DCS Components. It sits within the Desktop Accessories category.

Key product details

• System bus extender
• DP
• 65 Watt
• for P/N: TB3DK2DPM2, TB3DOCK2DPPD, TB3DOCK2DPPU

Procurement and setup support

Available for quote while live availability remains in stock. DCS can help with procurement, compatibility checks, configuration planning, installation support and long-term managed IT lifecycle support.

EAN: 0065030868440

Specifications

Ports & interfaces

Connectivity technology	Wired
Host interface	Thunderbolt 3
DisplayPorts quantity	1
Thunderbolt 3 ports quantity	2

Network

Ethernet LAN	No

Performance

Card reader integrated	No
Data transfer rate	40 Gbit/s
Product colour	Black
LED indicators	Power
Rubber feet	Yes
Housing material	Aluminium, Steel

Cooling

Built-in fan	Yes
Number of fans	1 fan(s)
Bearing type	Sleeve bearing
Fan diameter	6 cm
Noise level	24.55 dB
Maximum airflow	14.06 cfm

Power

Power source type	DC
AC input voltage	100 - 240 V
Input current	2 A
Output voltage	12 V
Output current	5.417 A
Power consumption (typical)	65 W
Power plug type	Type N
Compatible power plug types	AU, EU, JP, UK, US

Software

Windows operating systems supported	Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64
Mac compatibility	Yes
Mac operating systems supported	Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 11.0 Big Sur, Mac OS X 12.0 Monterey, Mac OS X 13.0 Ventura

Operational conditions

Operating temperature (T-T)	5 - 35 °C
Storage temperature (T-T)	-20 - 50 °C
Operating relative humidity (H-H)	20 - 80%

Sustainability

Sustainability compliance	Yes

Weight & dimensions

Width	142 mm
Depth	280 mm
Height	82 mm
Weight	1.6 kg

Packaging data

Package width	290 mm
Package depth	360 mm
Package height	145 mm
Package weight	3.1 kg

Packaging content

Cables included	Thunderbolt
AC adapter included	Yes
Quick start guide	Yes

Technical details

Compliance certificates	CE, RoHS

Logistics data

Products per master (outer) case	3 pc(s)
Master (outer) case width	375 mm
Master (outer) case length	455 mm
Master (outer) case height	325 mm
Harmonized System (HS) code	84733020

Other features

Cable length	0.5 m
Chipset	Intel - Alpine Ridge DSL6540
Maximum port bandwidth	3.94 GB/s
