Manufacturer Code: C15012-USB-EXTENDER
Overview

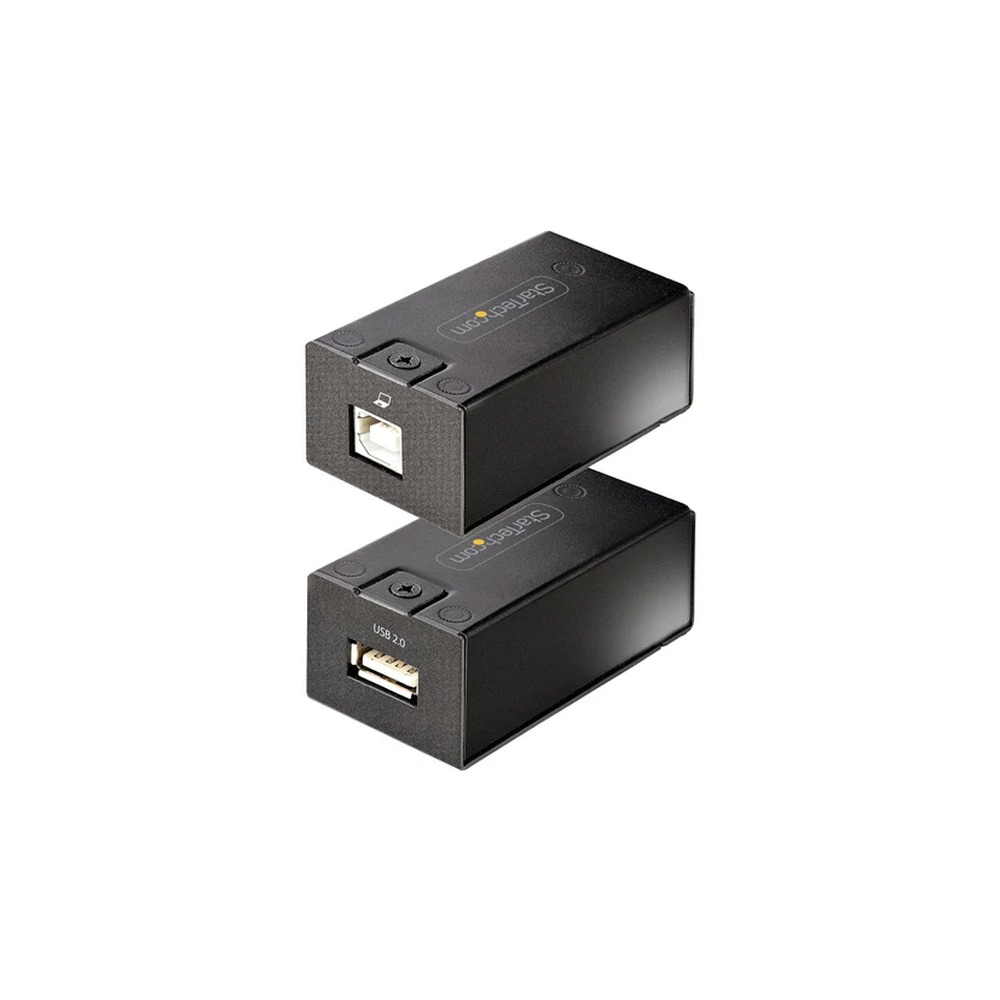

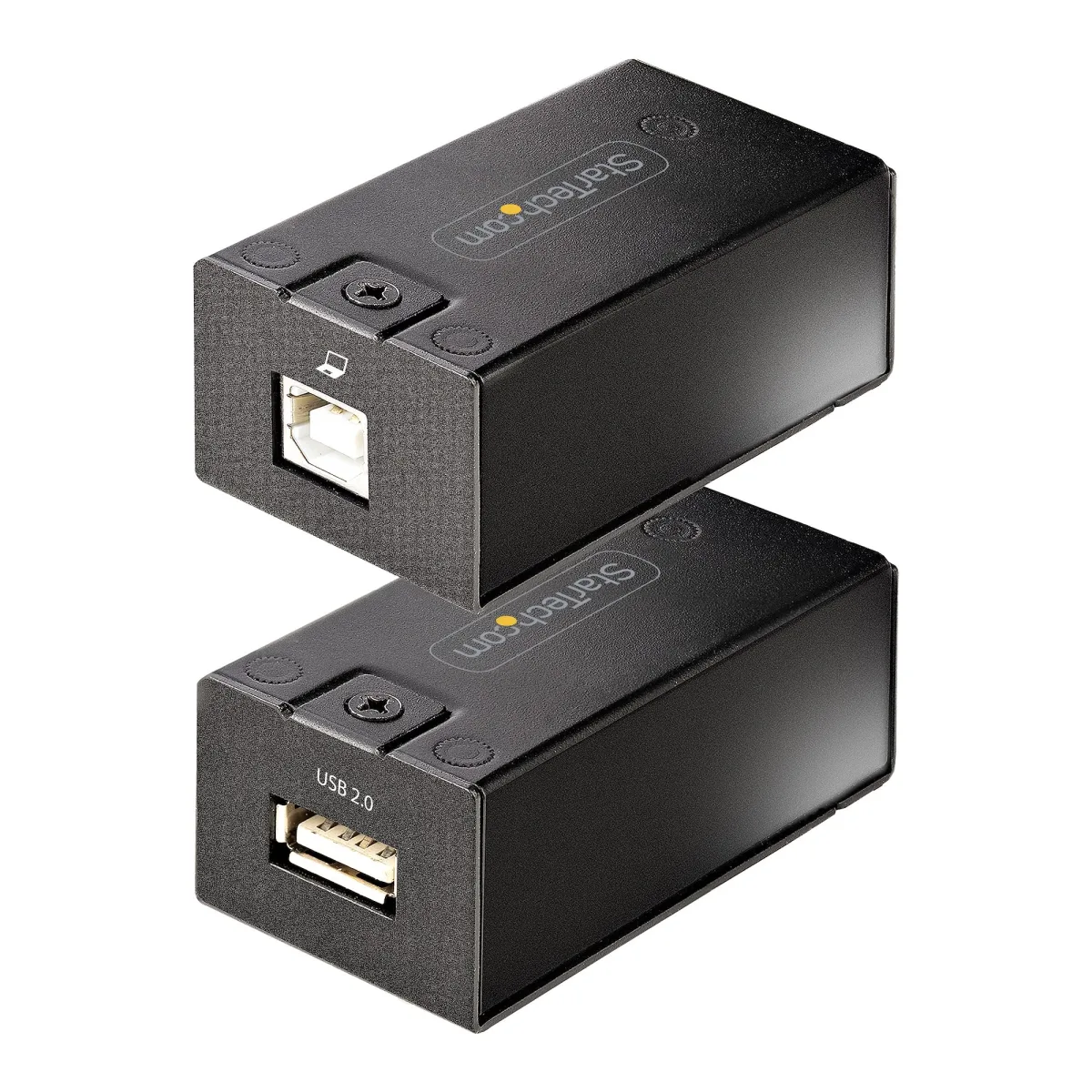

Startech USB 2.0 Extender over Cat5e/Cat6 Cable (RJ45), 492ft/150m USB Over Ethernet Extender/Adapter Kit - Externally Powered USB Extender, USB to Ethernet Converter, 480 Mbps, Rugged Metal Housing (C15012-USB-EXTENDER) - USB extender - USB 2.0 - over CA is available through DCS Components. It sits within the USB Cables & Adapters category.
Key product details
Procurement and setup support
Available for quote while live availability remains in stock. DCS can help with procurement, compatibility checks, configuration planning, installation support and long-term managed IT lifecycle support.
EAN: 0065030893176
| Type | Console transmitter & receiver |
|---|---|
| Data transfer rate | 480 Mbit/s |
| Maximum transfer distance | 150 m |
| Product colour | Black |
| Housing material | Metal |
| LED indicators | Power |
| Cable types supported | Cat5e, Cat6 |
| Compliance certificates | CE, RoHS |
| Plug and Play | Yes |

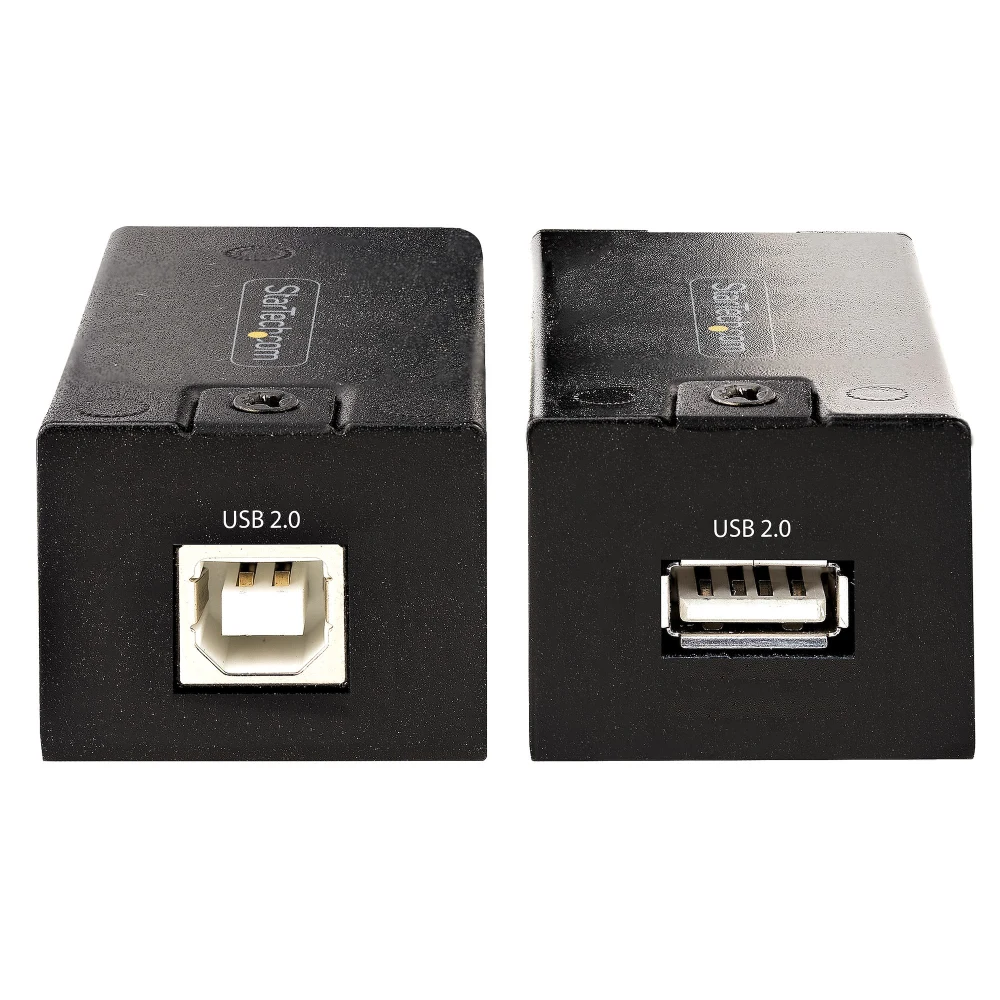

| USB 2.0 Type-A ports quantity | 1 |
|---|---|
| USB 2.0 Type-B ports quantity | 1 |

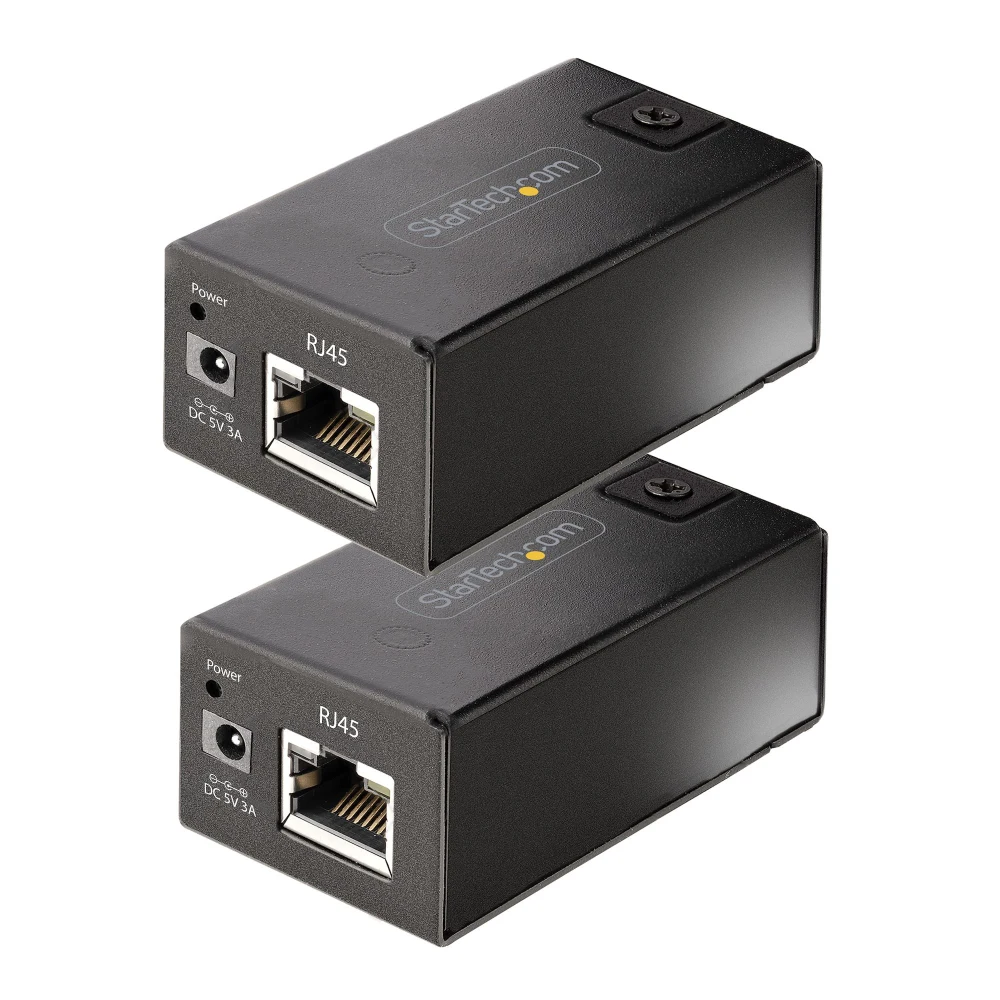

| RJ-45 ports quantity | 2 |
| DC-in jack | Yes |
| Width | 67 mm |
|---|---|
| Depth | 32 mm |
| Height | 25 mm |
| Weight | 173 g |
| Package width | 220 mm |
| Package depth | 194 mm |
| Package height | 60 mm |
| Package weight | 173 g |
| Operating temperature (T-T) | 0 - 50 °C |
|---|---|
| Storage temperature (T-T) | -20 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Cables included | USB Type-A to USB Type-B |
|---|---|
| AC adapter included | Yes |
| Power source type | DC |
|---|---|
| Power consumption (typical) | 15 W |
| Input voltage | 100 - 240 V |
| Input current | 0.6 A |
| Output voltage | 5 V |
| Output current | 3 A |
| Power plug type | Type H |
| Master (outer) case width | 400 mm |
|---|---|
| Master (outer) case length | 400 mm |
| Master (outer) case height | 278 mm |
| Products per master (outer) case | 12 pc(s) |
