Manufacturer Code: USB2001EXTV
Overview

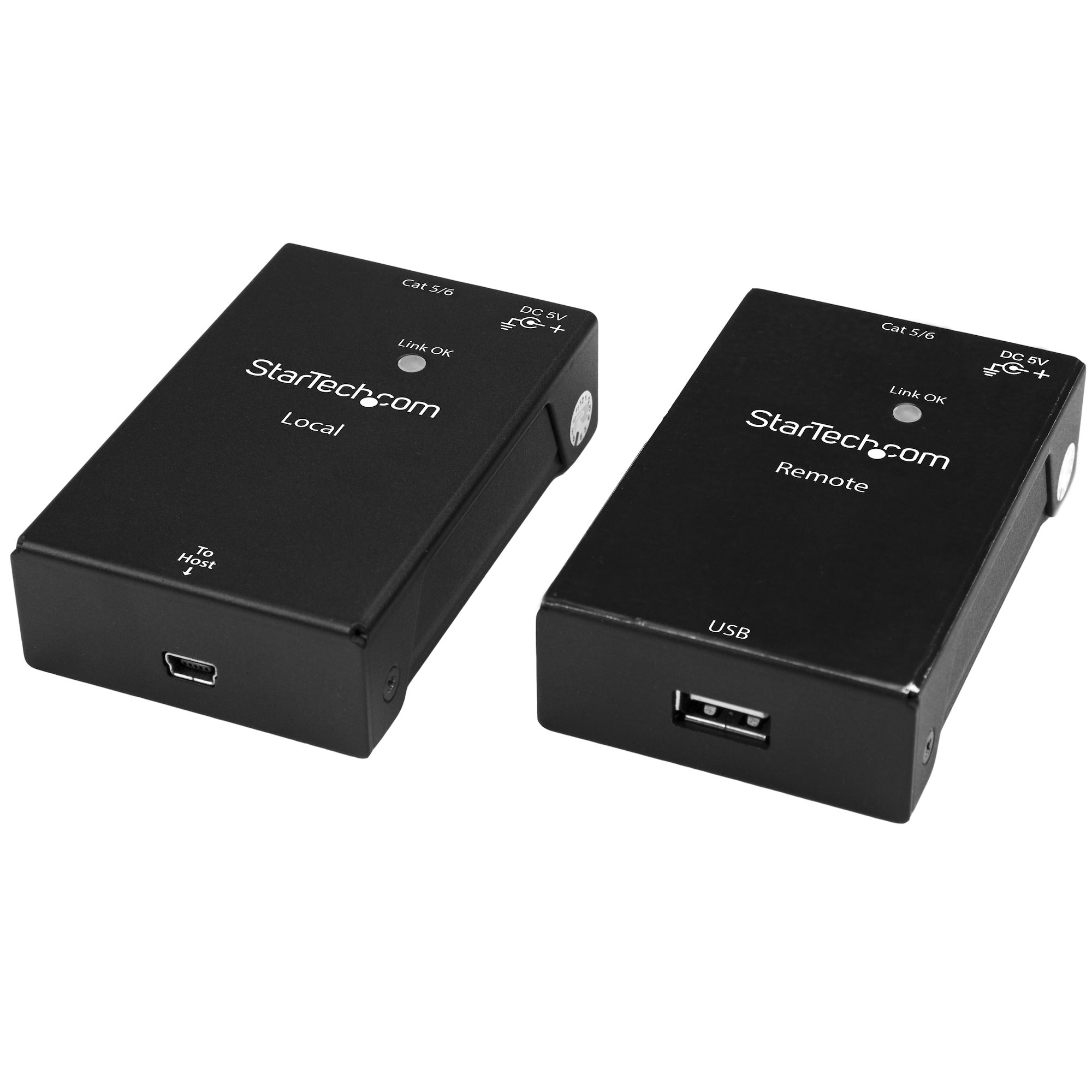

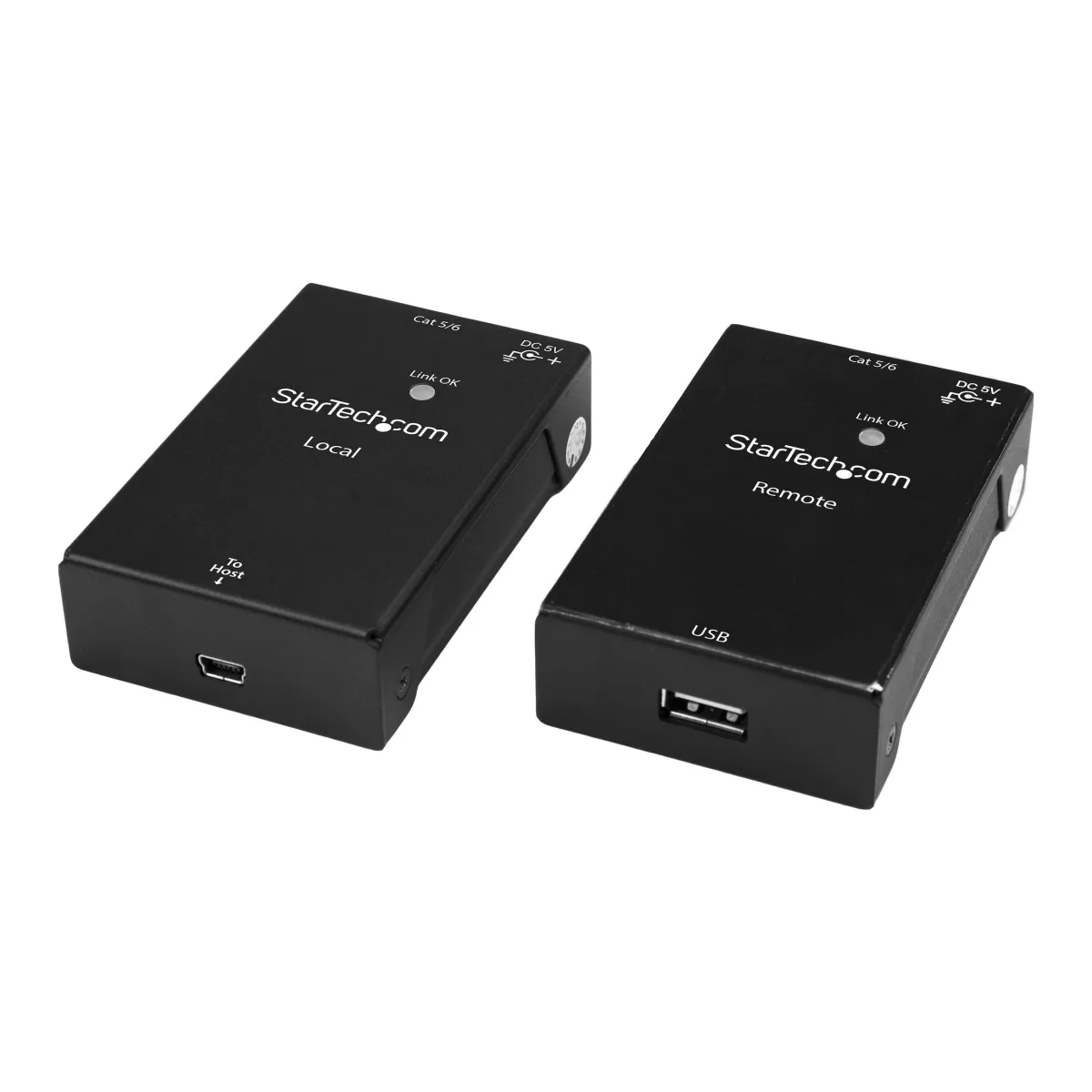

Startech USB 2.0 Extender over Cat5e/Cat6 Cable (RJ45), Up to 165ft (50m), High Speed USB Port Extender Adapter Kit, Powered, USB over Ethernet Cable Extender, 480Mbps, Metal Housing - Power/Link/Activity LEDs (USB2001EXTV) - USB extender - USB 2.0 - over is available through DCS Components. It sits within the USB Cables & Adapters category.
Key product details
Procurement and setup support
Available for quote while live availability remains in stock. DCS can help with procurement, compatibility checks, configuration planning, installation support and long-term managed IT lifecycle support.
EAN: 0065030866132
| Type | Console transmitter & receiver |
|---|---|
| Data transfer rate | 480 Mbit/s |
| Maximum transfer distance | 50 m |
| Product colour | Black |
| Housing material | Metal |
| LED indicators | Link, Power |
| Rubber feet | Yes |
| Cable types supported | Cat5, Cat5e, Cat6 |
| Compliance certificates | RoHS |
| USB 2.0 ports quantity | 1 |
|---|---|
| Mini-USB 2.0 ports quantity | 1 |
| RJ-45 ports quantity | 2 |
| Width | 52 mm |
|---|---|
| Depth | 80 mm |
| Height | 22 mm |
| Weight | 304 g |
| Package width | 155 mm |
| Package depth | 236 mm |
| Package height | 67 mm |
| Package weight | 717 g |
| Operating temperature (T-T) | 0 - 40 °C |
|---|---|
| Storage temperature (T-T) | -10 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
| Cables included | LAN (RJ-45), USB |
|---|---|
| Quick start guide | Yes |
| AC adapter included | Yes |
| Power consumption (typical) | 10 W |
|---|---|
| Input voltage | 100 - 240 V |
| Input current | 0.6 A |
| Output voltage | 5 V |
| Output current | 2 A |
| Power plug type | Type N |
| Harmonized System (HS) code | 84733020 |
|---|---|
| Master (outer) case width | 321 mm |
| Master (outer) case length | 412 mm |
| Master (outer) case height | 265 mm |
| Products per master (outer) case | 12 pc(s) |
