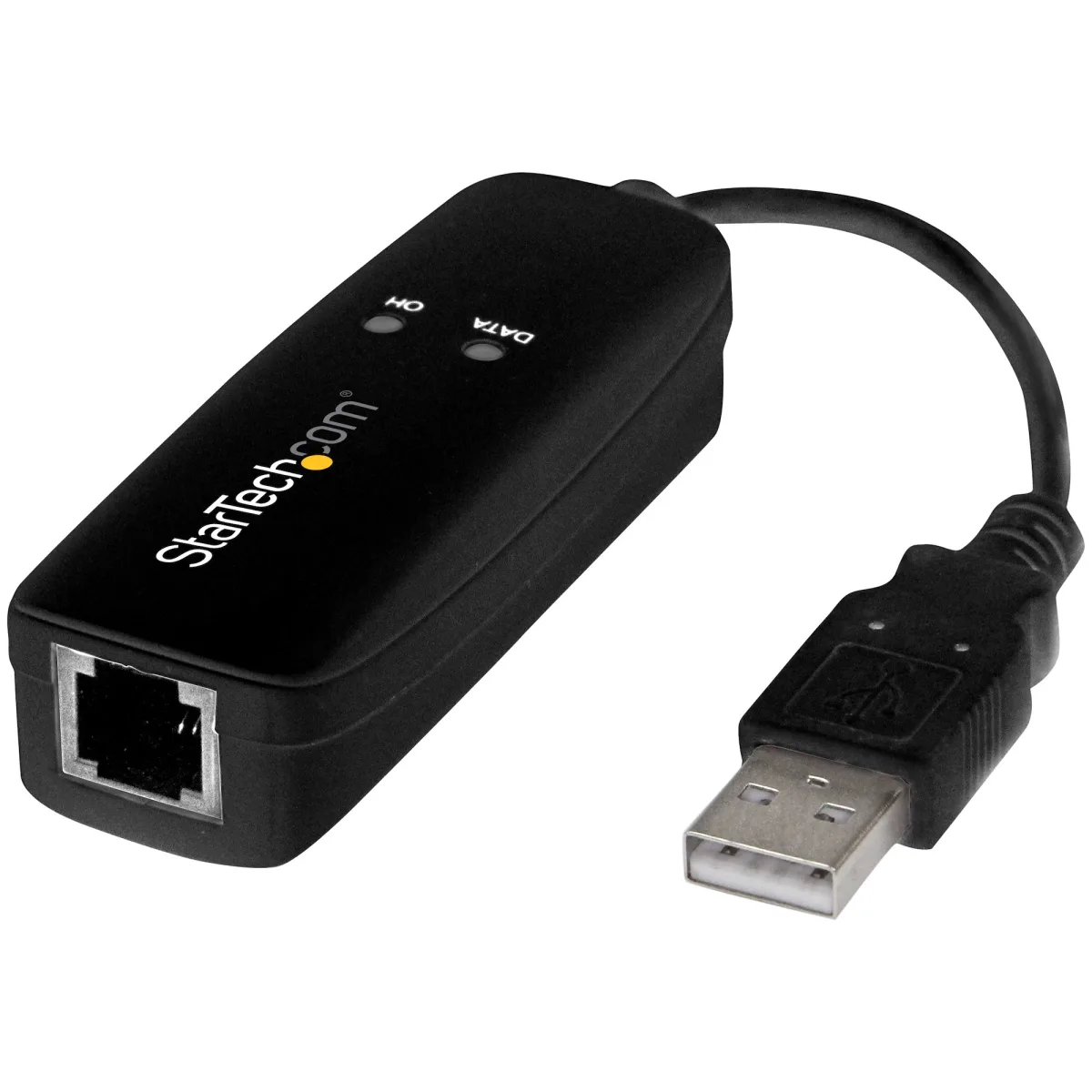

StarTech USB 2.0 Fax Modem, 56K External Hardware Dial Up V.92 Modem/Dongle/Adapter, Computer/Laptop Fax Modem, USB to Telephone Jack, USB Data Modem, Network Fax/CMR/POS - 56K V.92 Modem Dongle - Fax / modem - USB - 56 Kbps - K56Flex, V.90, V.92

Description

Manufacturer Code: USB56KEMH2

Overview

StarTech USB 2.0 Fax Modem, 56K External Hardware Dial Up V.92 Modem/Dongle/Adapter, Computer/Laptop Fax Modem, USB to Telephone Jack, USB Data Modem, Network Fax/CMR/POS - 56K V.92 Modem Dongle - Fax / modem - USB - 56 Kbps - K56Flex, V.90, V.92 is available through DCS Components. It sits within the General Catalogue category.

Key product details

• 56K V.92 Modem Dongle
• Fax / modem
• USB
• 56 Kbps
• K56Flex, V.90, V.92

Procurement and setup support

Available for quote while live availability remains in stock. DCS can help with procurement, compatibility checks, configuration planning, installation support and long-term managed IT lifecycle support.

EAN: 0065030866477

Specifications

Modem

Modem speed	56 Kbit/s
Interface	USB 2.0
Chipset	Conexant - CX93010-21Z

Performance

Supported data transfer rates	56 Kbps Down, 36.6 Kbps Up, 14.4 Kbps Fax
Upstream data rate	0.036 Mbit/s
Downstream data rate	0.056 Mbit/s
Maximum fax transfer rate	14.4 Kbps
Supported protocols	Modem ITU-T V.92 / V.90, V.34, V.32bis, V.32, V.22bis, V.22, V.23, V.21 Bell 212A, Bell 103 Fax V.17, V.29, V.27 Ter, V.21 channel 2 Data V.44, V.42bis, MNP 5

Features

LED indicators	Data

Ports & interfaces

Modem (RJ-11) ports	1

System requirements

Compatible operating systems	- Windows 7, 8, 8.1, 10 - Windows Server 2008 R2, 2012 R2, 2016, 2019 - Mac OS 10.9 to 10.10 - Linux kernel 3.16 to 4.4 LTS

Certificates

Compliance certificates	RoHS, CE, Federal Communications Commission (FCC), REACH, Trade Agreements Act (TAA)
Certification	CE, FCC, RoHS, REACH, TAA

Operational conditions

Operating temperature (T-T)	0 - 60 °C
Operating relative humidity (H-H)	10 - 90%
Storage temperature (T-T)	-10 - 70 °C

Weight & dimensions

Weight	28 g
Depth	77 mm
Height	20 mm
Width	27 mm

Packaging content

Cables included	Phone (RJ-11)
Quick start guide	Yes

Packaging data

Package dimensions (WxDxH)	136 x 163 x 32 mm
Package weight	136 g
Package depth	163 mm
Package height	32 mm
Package width	136 mm

Logistics data

Products per master (outer) case	100 pc(s)
Master (outer) case length	730 mm
Master (outer) case width	370 mm
Master (outer) case height	360 mm
