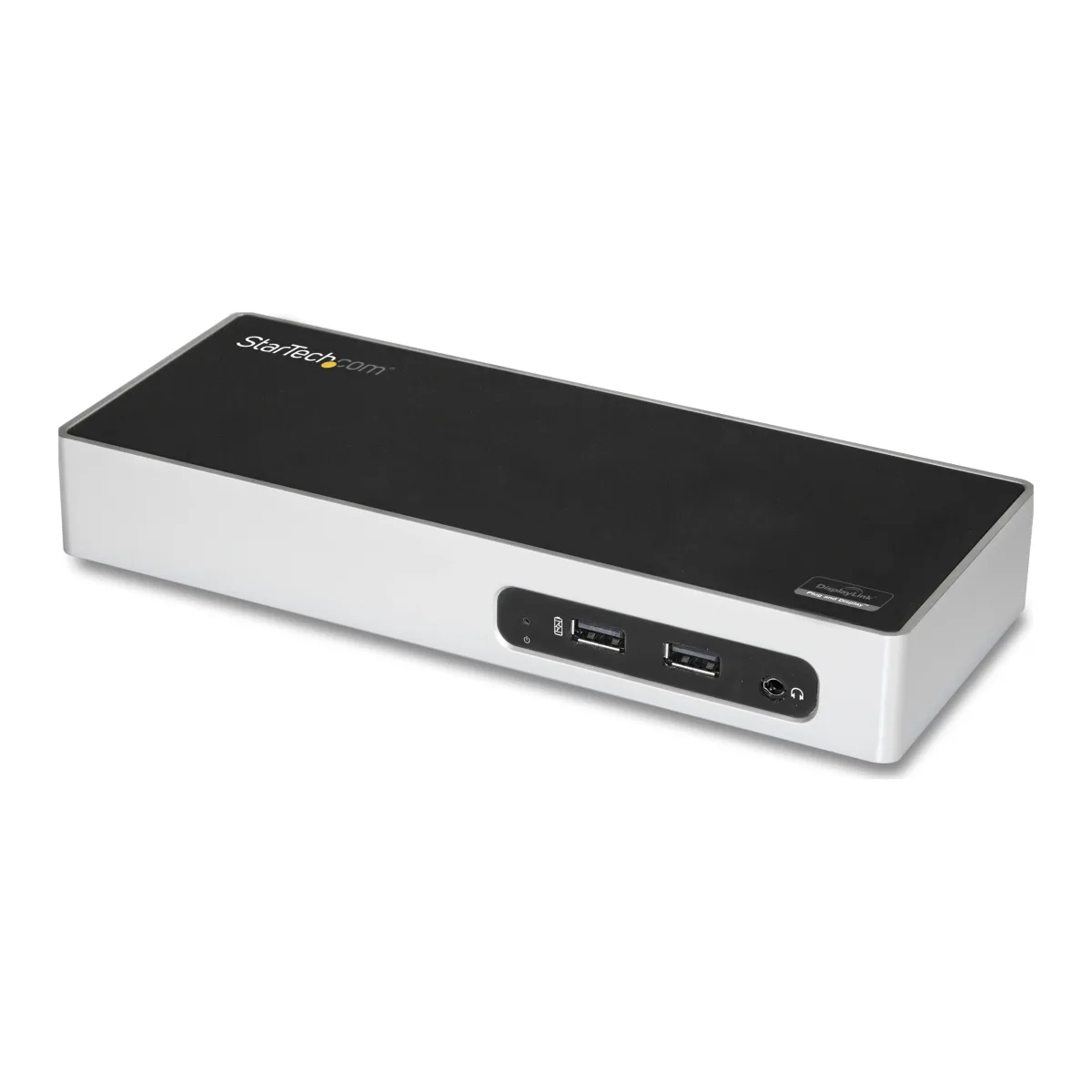

Startech USB 3.0 Docking Station, Dual Monitor Laptop Docking Station with HDMI & DVI/VGA Video, 6-port USB 3.1 Gen 1 5Gbps Hub, GbE, Audio, Universal USB Type-A Dock, Windows & Mac - Dual Display Dock (DK30ADD)

Description

StarTech.com USB 3.0 Docking Station - Dual Monitor Laptop Dock with HDMI & DVI/VGA - 6x USB Type-A Hub, GbE - Universal Windows & Mac - Dual monitor USB 3.0 docking station with HDMI and DVI / VGA, 6x USB 3.1 Gen 1 5Gbps Type-A ports, GbE, audio, 1m USB-A cable - Incl. DVI to VGA adapter - 2x always-on BC 1.2 (1.5A) fast-charge - Universal USB-A Laptop Dock - Windows/macOS/ChromeOS

Specifications

Ports & interfaces

Connectivity technology	Wired
Host interface	USB 3.2 Gen 1 (3.1 Gen 1) Type-B
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	6
HDMI ports quantity	1
DVI-I ports quantity	1
Combo headphone/mic port	Yes
Headphone outputs	1
Headphone connectivity	3.5 mm
DC-in jack	Yes

Network

Ethernet LAN	Yes
Ethernet LAN (RJ-45) ports	1
Ethernet LAN data rates	10,100,1000 Mbit/s
Wake-on-LAN ready	Yes
Networking standards	IEEE 802.3, IEEE 802.3ab, IEEE 802.3u
Auto MDI/MDI-X	Yes
Full duplex	Yes

Performance

Card reader integrated	No
Data transfer rate	5 Gbit/s
Maximum digital resolution	2048 x 1152 pixels
Number of displays supported	2
Product colour	Black, Silver
On/off switch	Yes
LED indicators	Power
UASP support	Yes
Housing material	Plastic
Brand compatibility	Any brand
Certification	CE, FCC, DisplayLink, REACH

Power

Power source type	AC
AC input voltage	100 - 240 V
Input current	1 A
Output voltage	20 V
Output current	2 A
Power consumption (typical)	40 W
Power plug type	Type N
Compatible power plug types	AU, EU, JP, UK, US

Software

Windows operating systems supported

Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64

Mac operating systems supported

Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 13.0 Ventura

Operational conditions

Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-10 - 70 °C
Operating relative humidity (H-H)	10 - 90%

Weight & dimensions

Width	86.2 mm
Depth	216 mm
Height	31 mm
Weight	291 g

Packaging data

Package width	140 mm
Package depth	307 mm
Package height	60 mm
Package weight	800 g

Packaging content

Cables included	USB
AC adapter included	Yes
Quick start guide	Yes

Technical details

Compliance certificates	RoHS

Logistics data

Products per master (outer) case	10 pc(s)
Master (outer) case width	315 mm
Master (outer) case length	325 mm
Master (outer) case height	295 mm
Harmonized System (HS) code	84733020

Other features

Cable length	1 m
Chipset	DisplayLink - DL-3900, VIA/VLI - VL813
