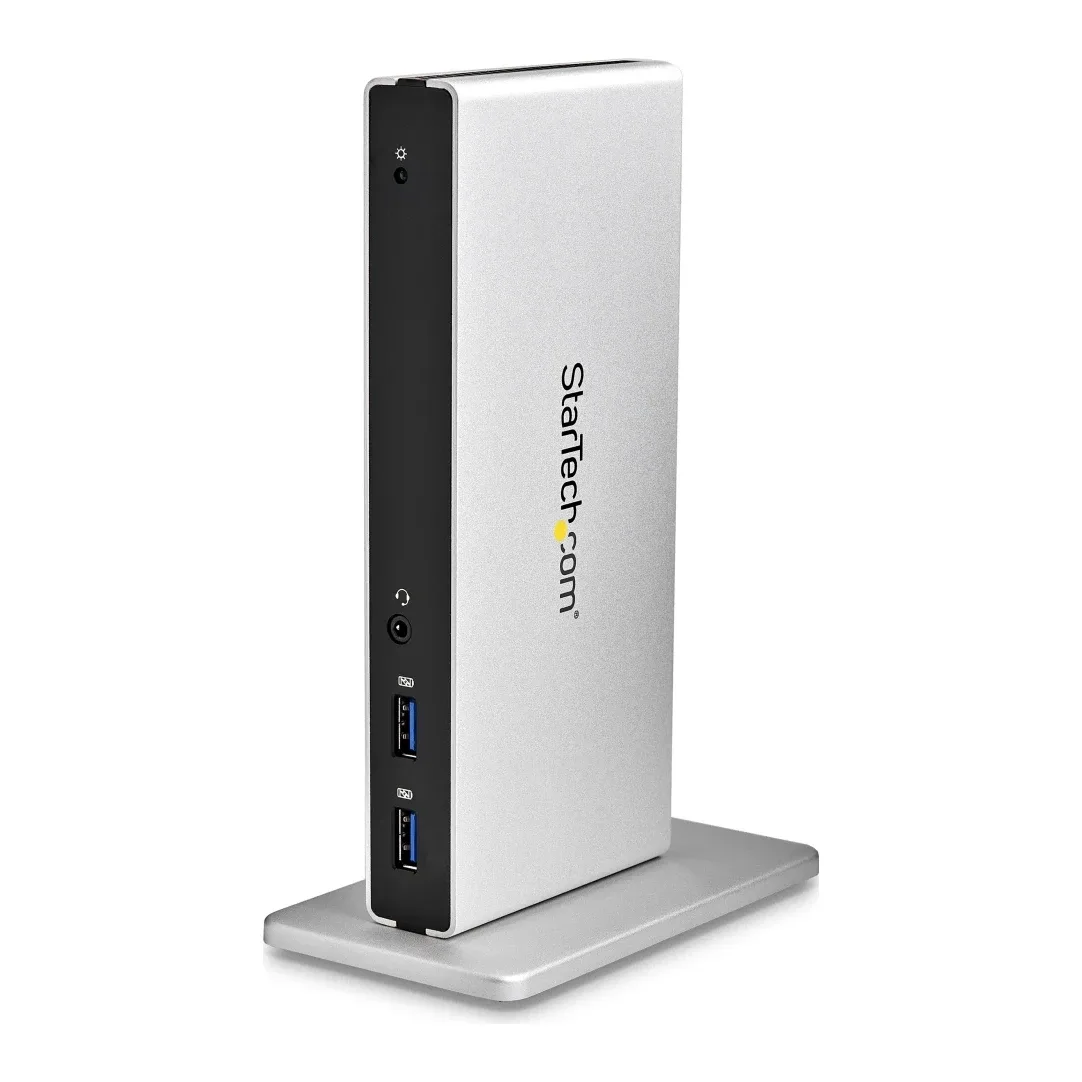

Startech Dual Monitor USB 3.0 Docking Station w/ DVI to VGA & HDMI Adapters, 5x USB 3.0 & Audio - Vertical DVI Dock for Mac & Windows (USB3SDOCKDD)

Description

StarTech.com Dual-Monitor USB 3.0 Docking Station - DVI Outputs - Mac & Windows - DVI to VGA & DVI to HDMI Adapters Included - USB3SDOCKDD - Dual-monitor USB 3.0 docking station - USB 3.0 dock includes DVI to VGA & DVI to HDMI adapters - USB 3.0 port replicator has 2x USB-fast charge ports - Dual DVI docking station has 5x USB 3.0 ports - 3-year warranty on dual monitor docking station

Specifications

Ports & interfaces

Connectivity technology	Wired
Host interface	USB 3.2 Gen 1 (3.1 Gen 1) Type-B
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	5
DVI-I ports quantity	1
DVI-D ports quantity	1
Combo headphone/mic port	Yes
Headphone outputs	1
Headphone connectivity	3.5 mm
DC-in jack	Yes

Network

Ethernet LAN	Yes
Ethernet LAN (RJ-45) ports	1
Ethernet LAN data rates	10,100,1000 Mbit/s
Wake-on-LAN ready	Yes
Networking standards	IEEE 802.3, IEEE 802.3ab, IEEE 802.3u
Auto MDI/MDI-X	Yes
Full duplex	Yes

Performance

Card reader integrated	No
Data transfer rate	5 Gbit/s
Maximum analog resolution	2048 x 1152 pixels
Product colour	Black, Silver
LED indicators	Power
Charging function	Yes
UASP support	Yes
Rubber feet	Yes
Housing material	Aluminium, Plastic
Brand compatibility	Any brand
Certification	CE, FCC, REACH

Power

Power source type	AC
AC input voltage	100 - 240 V
Input current	0.8 A
Output voltage	5 V
Output current	4 A
Power consumption (typical)	20 W
Power plug type	Type M
Compatible power plug types	AU, EU, UK, US

Software

Windows operating systems supported	Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 Pro, Windows 10 Pro x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64
Mac compatibility	Yes
Mac operating systems supported	Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.14 Mojave, Mac OS X 13.0 Ventura
Other operating systems supported	ChromeOS

Operational conditions

Operating temperature (T-T)	0 - 50 °C
Storage temperature (T-T)	-20 - 60 °C
Operating relative humidity (H-H)	5 - 85%

Weight & dimensions

Width	23 mm
Depth	83 mm
Height	178 mm
Weight	285 g

Packaging data

Package width	255 mm
Package depth	186 mm
Package height	95 mm
Package weight	1.02 kg

Packaging content

Cables included	USB
AC adapter included	Yes
Manual	Yes
Drivers included	Yes
Interface adapters included	DVI-I male - HDMI female, DVI-I male - VGA female
Stand included	Yes

Technical details

Compliance certificates	RoHS

Logistics data

Products per master (outer) case	10 pc(s)
Master (outer) case width	357 mm
Master (outer) case length	415 mm
Master (outer) case height	251 mm
Harmonized System (HS) code	84733020

Other features

Cable length	1 m
Chipset	DisplayLink - DL-3900, Genesys Logic - GL3520
USB data transfer rates	12,480,5000 Mbit/s
