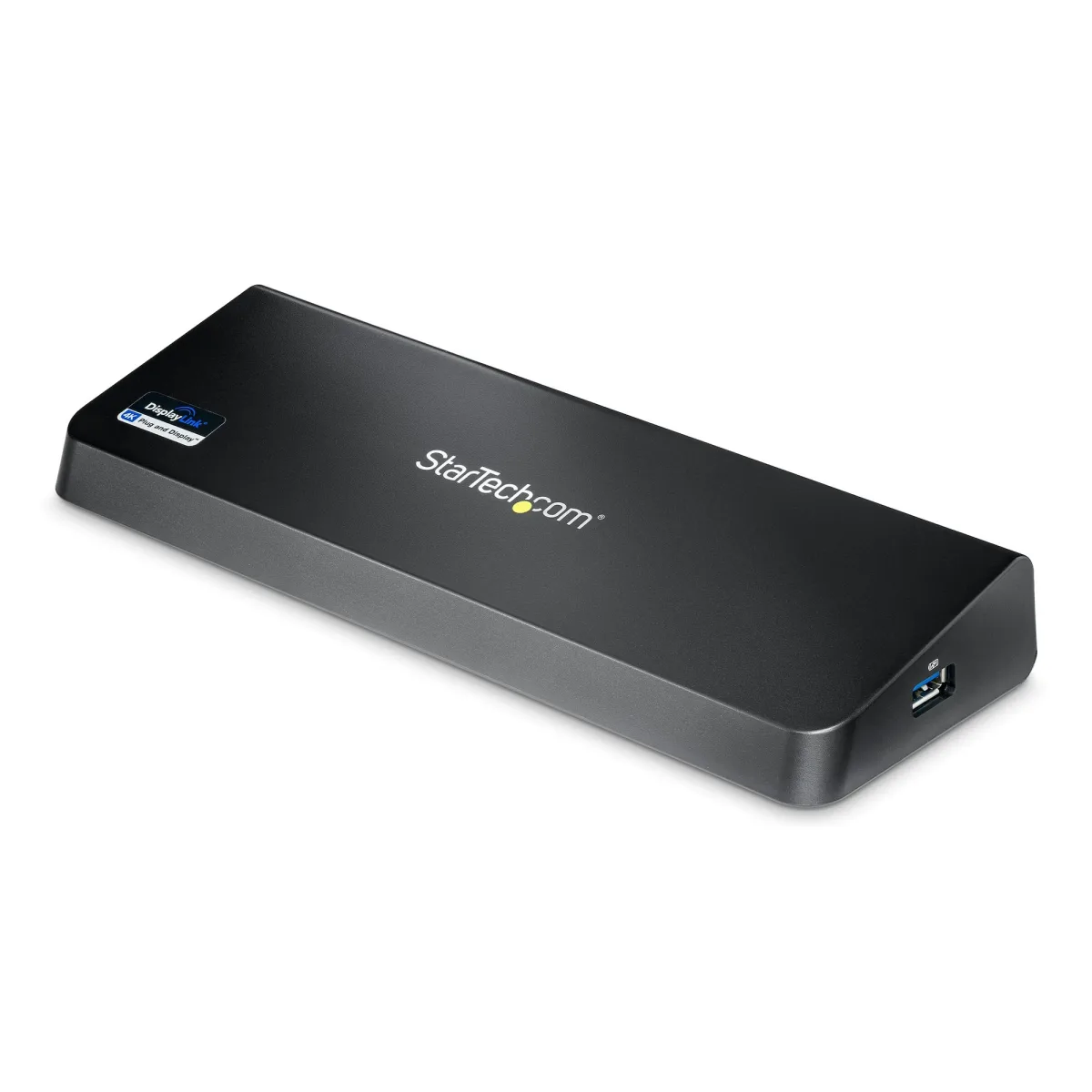

Startech USB 3.0 Docking Station Dual Monitor with HDMI & 4K DisplayPort, 4x USB-A, Gigabit Ethernet, USB Type A Universal Laptop Dock with USB 3.1 Gen 1 Hub (5 Gbps) and Charging - Mac, Windows, Chrome (USB3DOCKHDPC)

Description

StarTech.com USB 3.0 Docking Station Dual Monitor with HDMI & 4K DisplayPort - 4x USB-A, Ethernet - USB Type A Universal Laptop Dock - USB 3.0 Dual Monitor Docking Station with HDMI + DisplayPort/ 4x USB-A (5Gbps)/ 1x always-on fast-charge port/ GbE/ Audio Port/K-slot - Dual 2048x1152p video/4K single display - DisplayLink certified universal dock for Windows/macOS/Chrome OS laptop

Specifications

Ports & interfaces

Connectivity technology	Wired
Host interface	USB 3.2 Gen 1 (3.1 Gen 1) Type-B
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	4
HDMI ports quantity	1
DisplayPorts quantity	1
Headphone outputs	1
Headphone connectivity	3.5 mm
USB connector type	USB Type-A

Network

Ethernet LAN	Yes
Ethernet LAN (RJ-45) ports	1
Ethernet LAN data rates	10,100,1000 Mbit/s
Wake-on-LAN ready	Yes
Networking standards	IEEE 802.3, IEEE 802.3ab, IEEE 802.3u
Auto MDI/MDI-X	Yes
Full duplex	Yes

Performance

Card reader integrated	No
Data transfer rate	5 Gbit/s
Maximum digital resolution	3840 x 2160 pixels
Cable lock slot	Yes
Product colour	Black
LED indicators	Activity, Link
Charging function	Yes
UASP support	Yes
Housing material	Plastic, Steel
Brand compatibility	Any brand
Certification	CE, FCC, DisplayLink

Power

AC input voltage	100-240 V
Input current	1.5 A
Output voltage	5 V
Output current	6.5 A
Power consumption (typical)	32.5 W
Compatible power plug types	AU, EU, UK, US

Software

Windows operating systems supported	Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 Pro, Windows 10 Pro x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64
Mac compatibility	Yes
Mac operating systems supported	Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.14 Mojave, Mac OS X 13.0 Ventura
Other operating systems supported	ChromeOS

Operational conditions

Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-10 - 80 °C
Operating relative humidity (H-H)	0 - 90%

Weight & dimensions

Width	76 mm
Depth	227 mm
Height	24 mm
Weight	277 g

Packaging data

Package width	251 mm
Package depth	198 mm
Package height	71 mm
Package weight	1.1 kg

Packaging content

Cables included	AC, USB
AC adapter included	Yes
Manual	Yes
Drivers included	Yes

Technical details

Compliance certificates	RoHS

Logistics data

Products per master (outer) case	10 pc(s)
Master (outer) case width	390 mm
Master (outer) case length	426 mm
Master (outer) case height	302 mm
Products per shipping (inner) case	150 pc(s)
Harmonized System (HS) code	84733020

Other features

Cable length	0.6 m
Chipset	DisplayLink - DL-5900, VLI - VL812
USB data transfer rates	5000 Mbit/s
