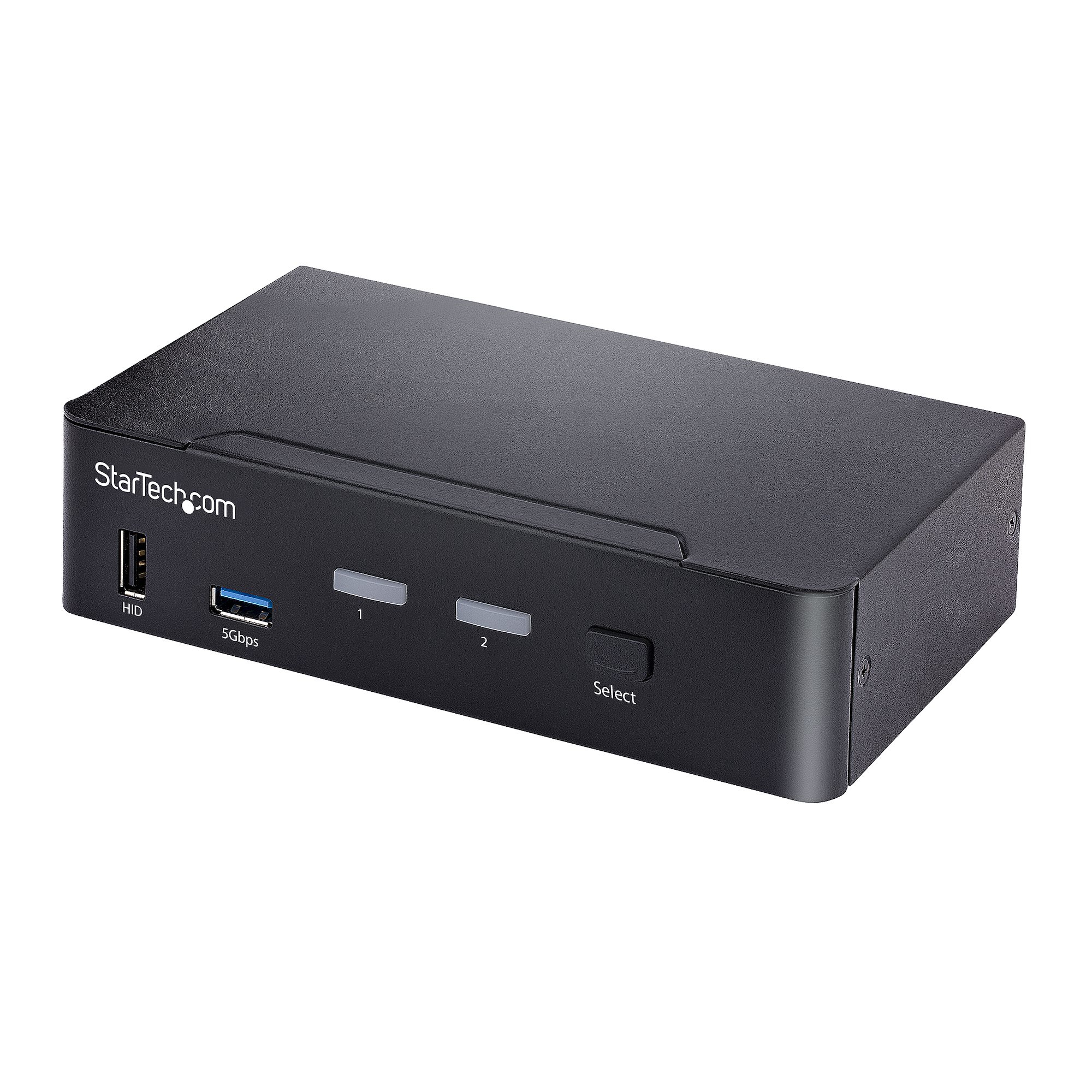

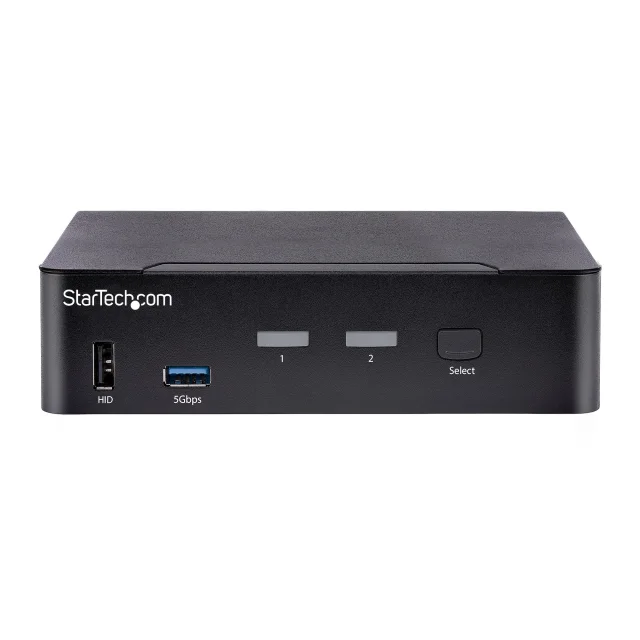

Startech USB C KVM Switch, 2 Port DisplayPort KVM w/ 4K 60Hz UHD HDR Video, 3.5mm Audio, USB Type C KVM Switch, 4x USB HID and 2x USB A 3.2 Gen 1 5Gbps Hub, Thunderbolt 3/4 Compatible - Hot Key Switching (SV231DPUCA) - KVM / audio / USB switch - 2 x KVM / audio / USB - desktop - TAA Compliant

Description

Manufacturer Code: SV231DPUCA

Overview

Startech USB C KVM Switch, 2 Port DisplayPort KVM w/ 4K 60Hz UHD HDR Video, 3.5mm Audio, USB Type C KVM Switch, 4x USB HID and 2x USB A 3.2 Gen 1 5Gbps Hub, Thunderbolt 3/4 Compatible - Hot Key Switching (SV231DPUCA) - KVM / audio / USB switch - 2 x KVM / is available through DCS Components. It sits within the KVM Switches, Cables & Accessories category.

Key product details

• Hot Key Switching (SV231DPUCA)
• KVM / audio / USB switch
• 2 x KVM /

Procurement and setup support

Available for quote while live availability remains in stock. DCS can help with procurement, compatibility checks, configuration planning, installation support and long-term managed IT lifecycle support.

EAN: 0065030872201

Specifications

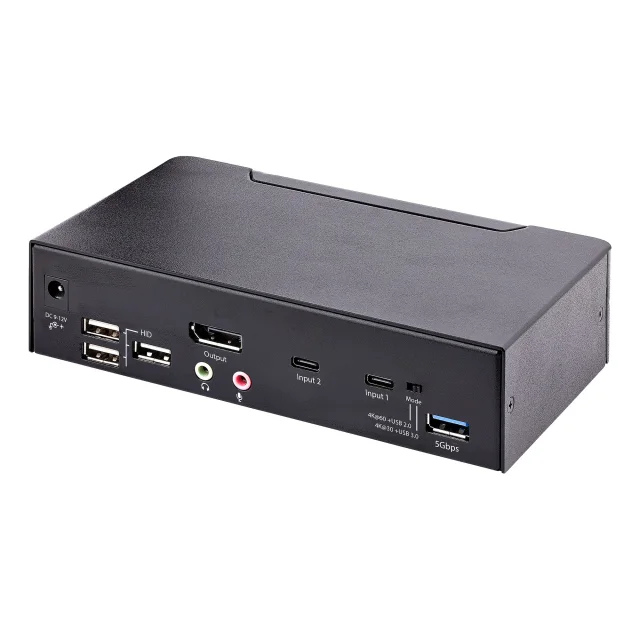

Ports & interfaces

Number of computers controlled	2
Keyboard port type	USB
Mouse port type	USB
Video port type	DisplayPort
DisplayPort version	1.2
Console ports	3.5mm headphone, 3.5mm mic, DisplayPort
Console USB ports quantity	6
Console DisplayPorts ports quantity	1
USB hub	Yes
USB 3.2 Gen 1 (3.1 Gen 1) Type-A hub ports quantity	2
Headphone outputs	1
Number of microphone inputs	1

Performance

HD type	4K Ultra HD
Maximum resolution	5120 x 1440 pixels
Video bandwidth	60 Hz
Data transfer rate (max)	5 Gbit/s
Scan interval	3,8,15,30 s
HDCP	Yes
Chipset	Parade - PS8461, Etron - EJ899I
Audio channels	2.0
Number of displays supported	1

Design

Rack mounting	No
Product colour	Black
LED indicators	Yes
Push button	Yes
Hot keys	Yes
Mean time between failures (MTBF)	158000 h

Display

Built-in display	No

Power

Power source	AC
Input voltage	100 - 240 V
Input current	1.2 A
Output voltage	12 V
Output current	3 A
Power plug type	Type M

Operational conditions

Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-10 - 60 °C
Operating relative humidity (H-H)	0 - 80%

Weight & dimensions

Width	140 mm
Depth	160 mm
Height	40 mm
Weight	600 g

Packaging data

Package width	184 mm
Package depth	238 mm
Package height	89 mm
Package weight	1 kg

Packaging content

Quick installation guide	Yes
AC adapter included	Yes
Rubber feet	Yes

Other features

IP control	No

Logistics data

Master (outer) case width	300 mm
Master (outer) case length	397 mm
Master (outer) case height	257 mm
Products per master (outer) case	6 pc(s)
