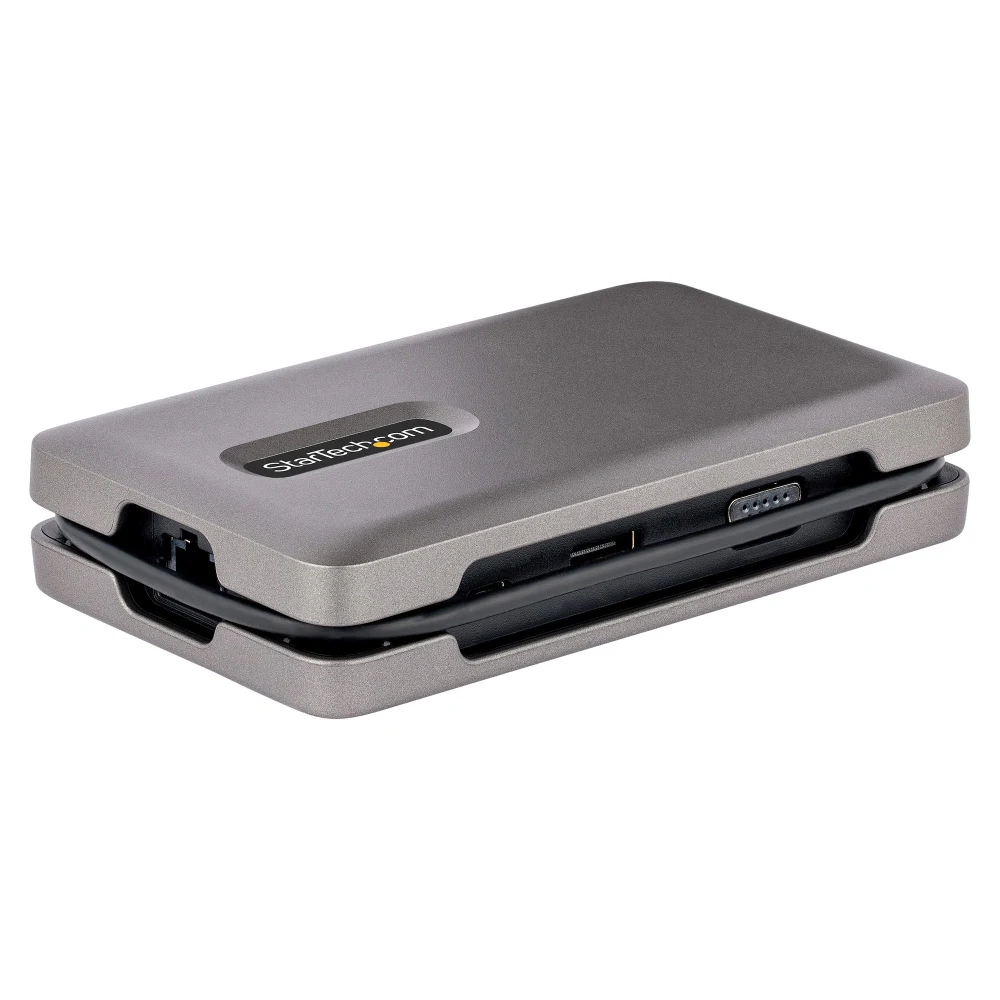

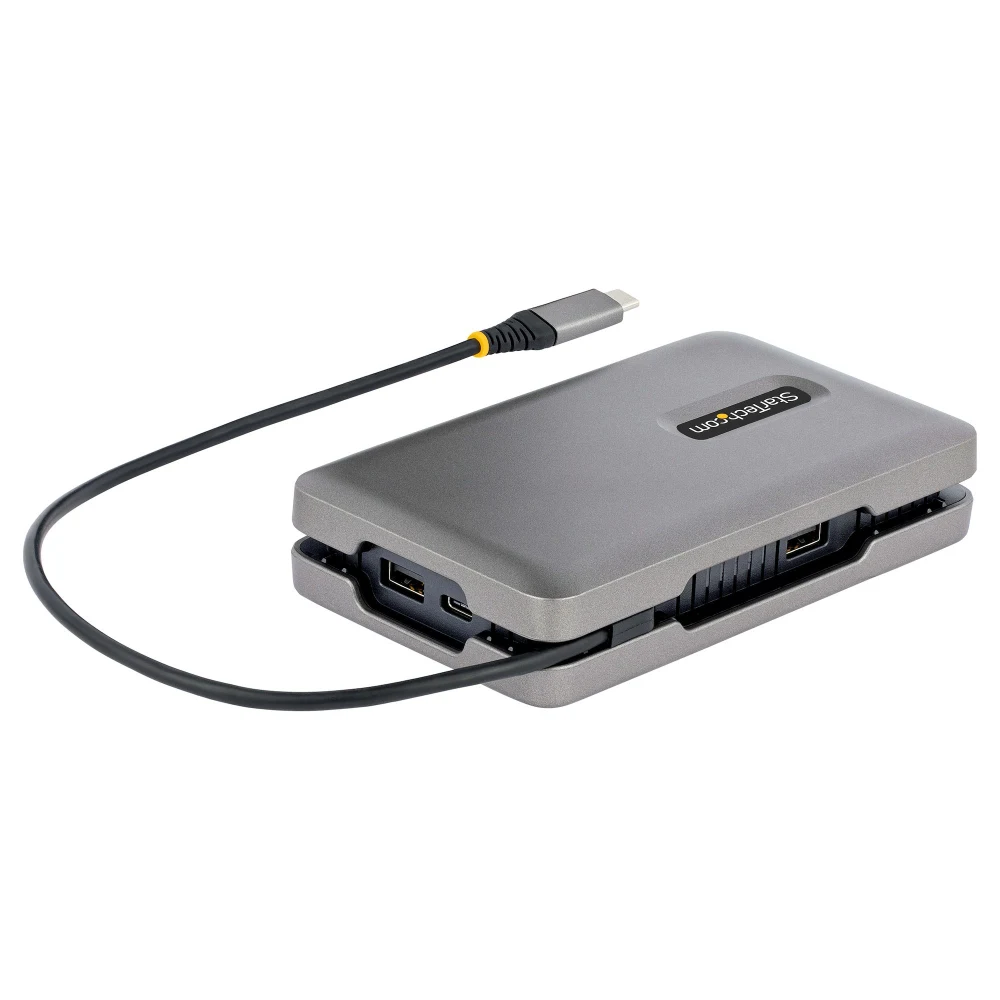

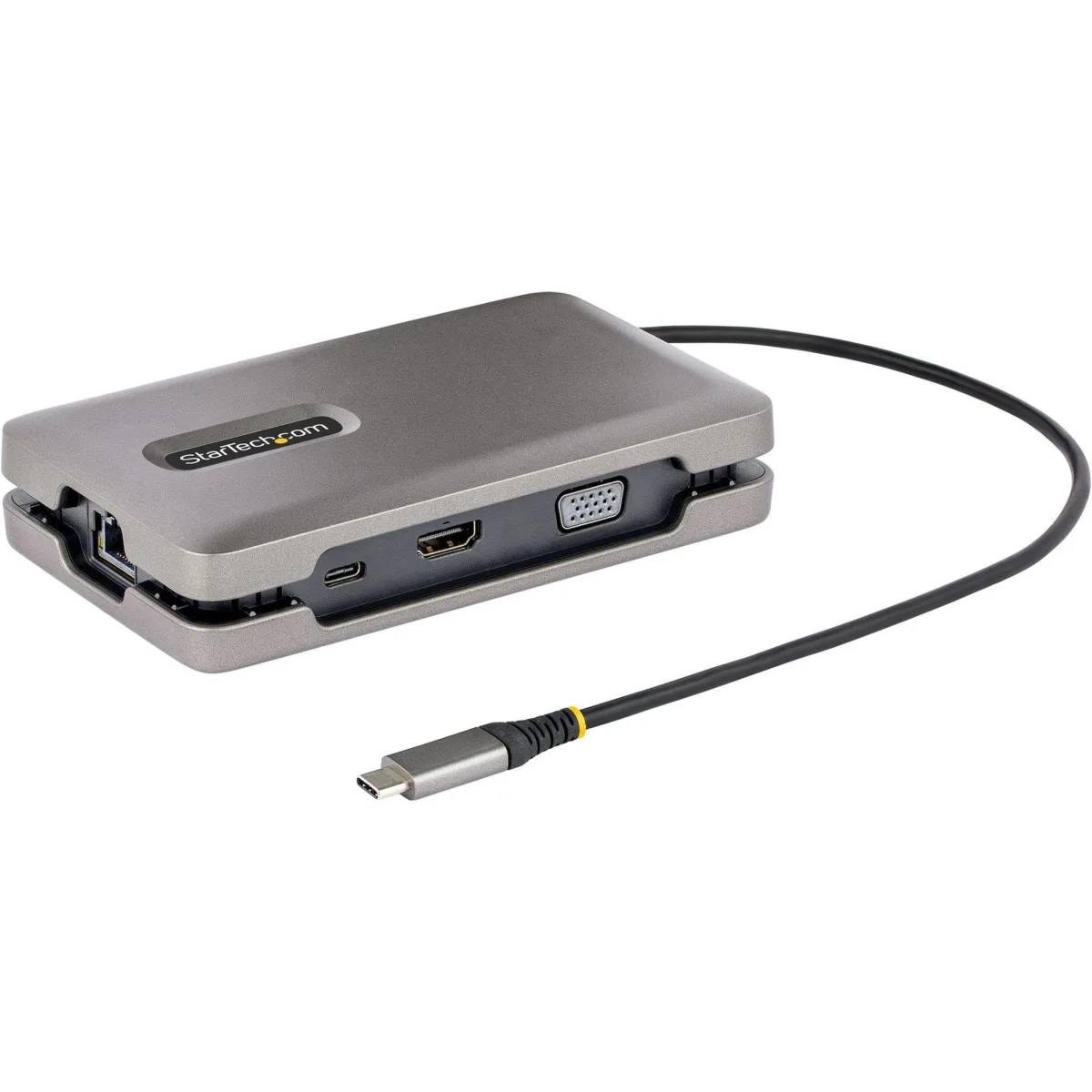

Startech USB-C MULTIPORT ADAPTER W/USB-C

Description

StarTech.com USB-C Multiport Adapter w/USB-C DP Alt Mode Video/4K HDMI/VGA, USB-C Dual Monitor Docking Station, Type C Mini Dock/MST Hub - USB-C Multiport Adapter to 4K60Hz HDMI 2.0/USB-C DP 1.4 Alt Mode/1080p VGA (GPU dependent) - 2x USB-A 3.2 Gen 2 10Gbps hub | Gb Ethernet | 100W Power Delivery charging - 10in cable - Compact Type-C Travel Digital AV Mini docking station - Win/Chrome

Overview

Startech USB-C MULTIPORT ADAPTER W/USB-C is listed under manufacturer code DKM31C3HVCPD. It sits within the USB Hubs & Controllers category. DCS Components can help source this item as part of a quote-led procurement request.

Key product details

• Manufacturer code: DKM31C3HVCPD
• Category: USB Hubs & Controllers
• EAN: 65030887014

Procurement and setup support

DCS can help with procurement, compatibility checks, configuration planning, deployment support and long-term managed IT lifecycle support.

Specifications

Ports & interfaces

Connectivity technology	Wired
Host interface	USB 3.2 Gen 2 (3.1 Gen 2) Type-C
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	2
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	1
USB Power Delivery (USB PD)	Yes
USB Power Delivery up to	100 W
HDMI ports quantity	1
HDMI version	2.0b
VGA (D-Sub) ports quantity	1
Microphone in	No
DC-in jack	No
USB Type-C DisplayPort Alternate Mode	Yes

Network

Ethernet LAN	Yes
Ethernet LAN (RJ-45) ports	1
Ethernet LAN data rates	10,100,1000 Mbit/s
Full duplex	Yes

Performance

Card reader integrated	No
Data transfer rate	10 Gbit/s
HD type	4K Ultra HD
Maximum digital resolution	3840 x 2160 pixels
Maximum analog resolution	1920 x 1200 pixels
Maximum refresh rate	60 Hz
Product colour	Grey
High Dynamic Range 10 (HDR10)	Yes
LED indicators	Activity, Link
UASP support	Yes

Power

Power source type	USB
Power consumption (typical)	12 W
Wireless charging	No

Software

Windows operating systems supported

Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64

Other operating systems supported

ChromeOS

Operational conditions

Operating temperature (T-T)	0 - 60 °C
Storage temperature (T-T)	-20 - 60 °C
Operating relative humidity (H-H)	0 - 90%

Weight & dimensions

Width	83 mm
Depth	144 mm
Height	28 mm
Weight	170 g

Packaging data

Package width	144 mm
Package depth	207 mm
Package height	38 mm
Package weight	160 g

Packaging content

Quick start guide	Yes

Technical details

Compliance certificates	CE, RoHS

Logistics data

Products per master (outer) case	20 pc(s)
Master (outer) case width	425 mm
Master (outer) case length	230 mm
Master (outer) case height	330 mm
Harmonized System (HS) code	84733020

Other features

Cable length	0.25 m
Chipset	Genesys Logic - GL3590, Genesys Logic - GL9510-UFP, Genesys Logic - GL9510-DFP, Realtek - RTD2142, Realtek - RTL8153
