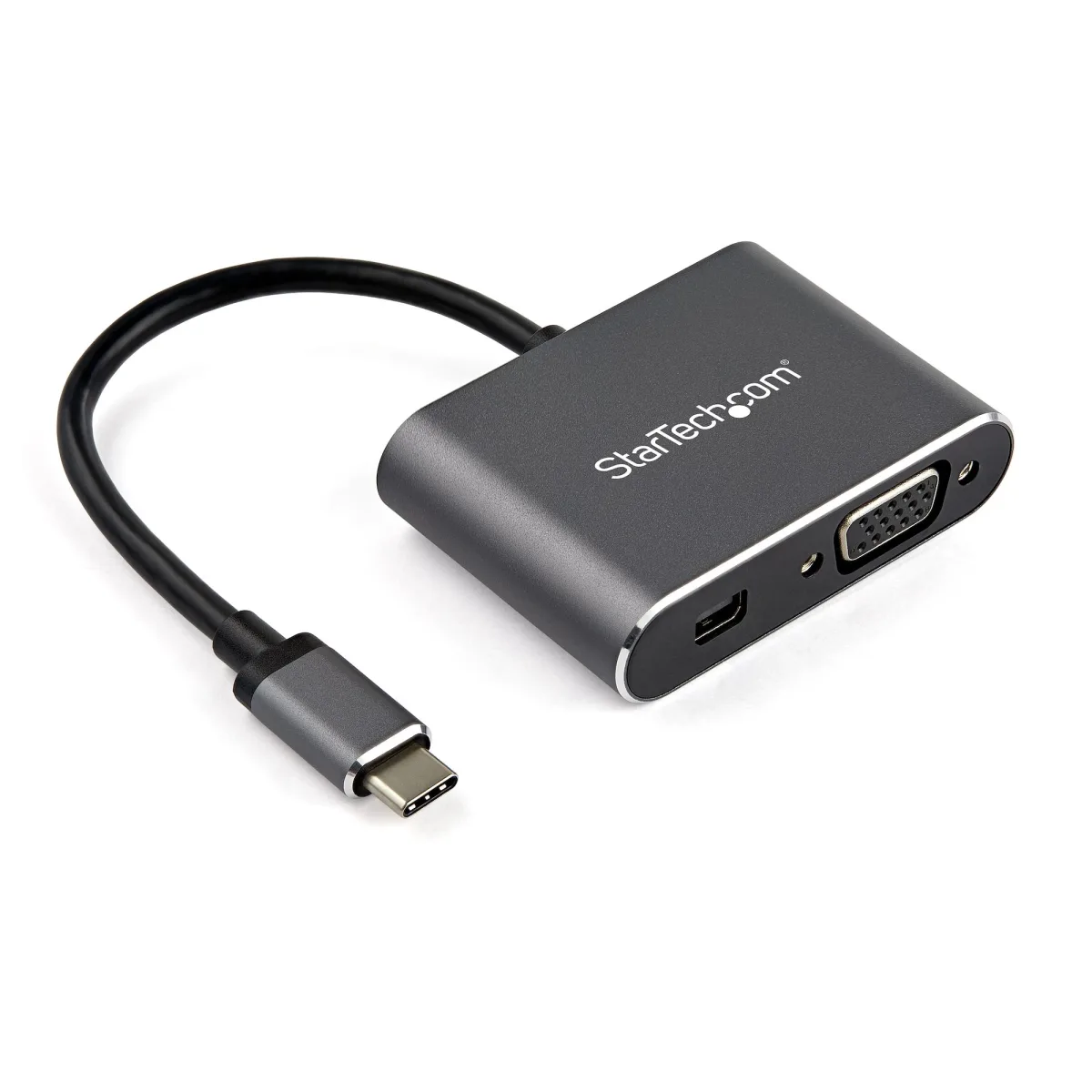

StarTech USB C Multiport Video Adapter, USB-C to 4K 60Hz Mini DisplayPort 1.2 or 1080p VGA Monitor Adapter, USB Type-C 2-in-1 MDP HBR2 HDR/VGA Display Converter, Works w/ Thunderbolt 3 - USB-C 2 in 1 Adapter (CDP2MDPVGA)

Description

StarTech.com USB C Multiport Video Adapter - USB-C to 4K 60Hz Mini DisplayPort 1.2 (HBR2 HDR) or 1080p VGA Monitor Display Adapter - 2-in-1 USB-C multiport video adapter w/ Mini DisplayPort 1.2 or VGA - USB-C to 4K 60Hz mDP 1.2 HBR2 or 1080p VGA - HDCP 2.2/1.4 / 2ch audio - USB-C display adapter for TB3/USB Type-C laptop/tablet Dell HP Lenovo MacBook - Driverless & OS independent

Overview

Startech USB C MULTIPORT VIDEO ADAPTER is listed under manufacturer code CDP2MDPVGA. It sits within the Usb cable category. DCS Components can help source this item as part of a quote-led procurement request.

Key product details

• Manufacturer code: CDP2MDPVGA
• Category: Usb cable
• EAN: 0065030884518

Procurement and setup support

DCS can help with procurement, compatibility checks, configuration planning, deployment support and long-term managed IT lifecycle support.

Specifications

Performance

USB connector type	USB Type-C
USB connector gender	Male
DVI output	No
HDMI output	No
DisplayPort output	No
Number of displays supported	2
Mini DisplayPorts quantity	1
VGA (D-Sub) output	Yes
DisplayPort version	1.2
Maximum resolution	3840 x 2160 pixels
Refresh rate at maximum resolution	60 Hz
Supported graphics resolutions	1920 x 1080 (HD 1080), 3840 x 2160
Chipset	Realtek RTD2142S-CG
Certification	CE, FCC, REACH

Design

Product colour	Grey
Housing material	Aluminium
Integrated USB cable	Yes

Weight & dimensions

Width	44 mm
Depth	62 mm
Height	15 mm
Weight	51 g

Operational conditions

Operating temperature (T-T)	0 - 70 °C
Storage temperature (T-T)	-10 - 55 °C
Operating relative humidity (H-H)	5 - 90%

Packaging data

Package width	80 mm
Package depth	150 mm
Package height	20 mm
Package weight	73 g

Technical details

Compliance certificates	RoHS

Logistics data

Products per master (outer) case	200 pc(s)
Master (outer) case width	331 mm
Master (outer) case length	473 mm
Master (outer) case height	440 mm
Harmonized System (HS) code	84733020
