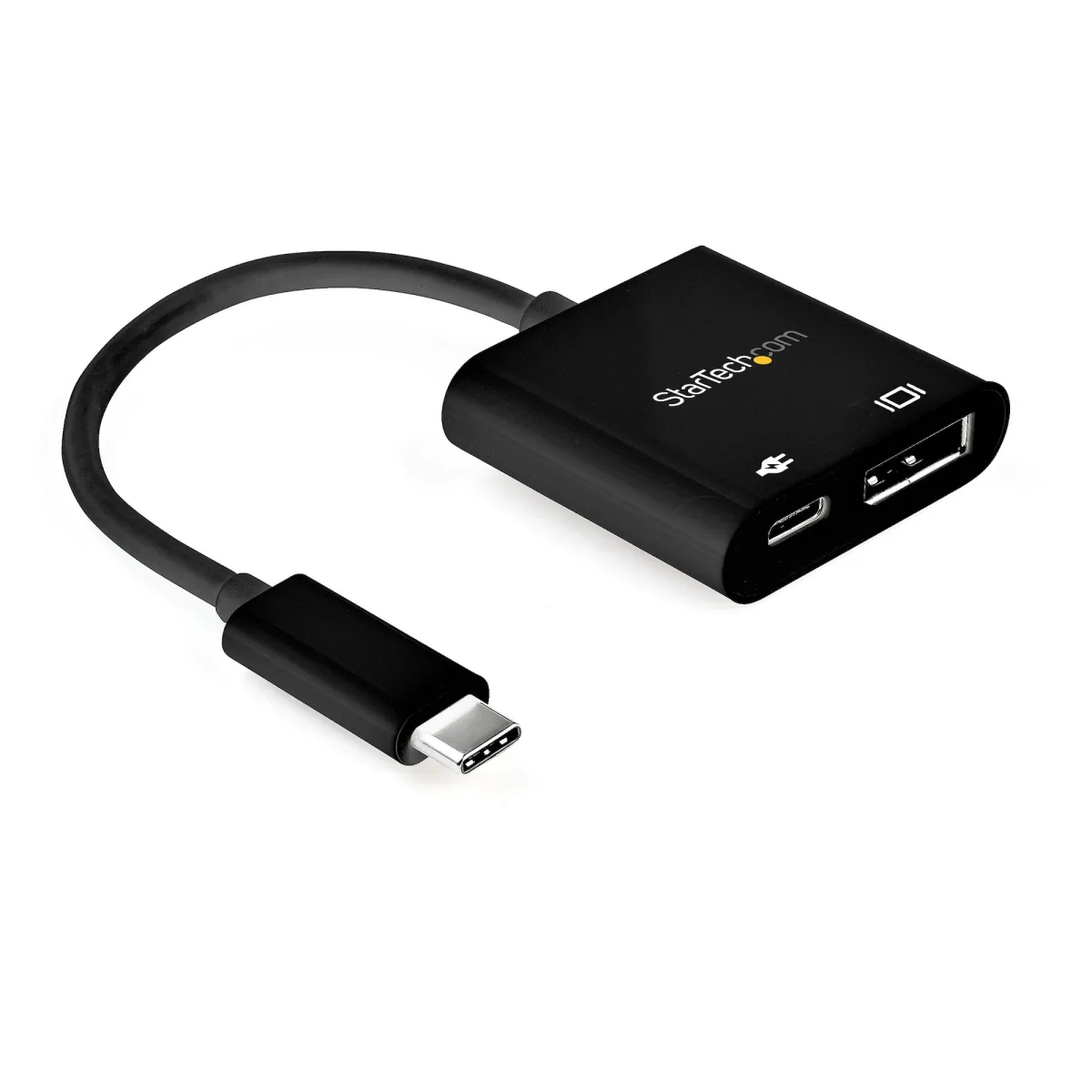

StarTech USB C to DisplayPort Adapter with Power Delivery, 8K 60Hz/4K 120Hz USB Type C to DP 1.4 Monitor Video Converter w/60W PD Pass-Through Charging, HBR3, Thunderbolt 3 Compatible - USB-C Male to DP Female (CDP2DP14UCPB)

Description

StarTech.com USB C to DisplayPort Adapter with 60W Power Delivery Pass-Through - 8K/4K USB Type-C to DP 1.4 Video Converter w/ Charging - USB-C to DisplayPort 1.4 video adapter converter 8K 60Hz/4K 120Hz/1080p; HDR/HBR3/DSC/HDCP 2.2/1.4 - 60W Power Delivery pass-through charging - Tested for 8K performance - USB Type C DP Alt Mode/Thunderbolt 3 devices - Driverless OS independent

Overview

Startech USB C TO DISPLAYPORT ADAPTER 8K is listed under manufacturer code CDP2DP14UCPB. It sits within the Monitor Cables category. DCS Components can help source this item as part of a quote-led procurement request.

Key product details

• Manufacturer code: CDP2DP14UCPB
• Category: Monitor Cables
• EAN: 0065030883641

Procurement and setup support

DCS can help with procurement, compatibility checks, configuration planning, deployment support and long-term managed IT lifecycle support.

Specifications

Performance

USB connector type	USB Type-C
USB connector gender	Male
DVI output	No
HDMI output	No
DisplayPort output	Yes
Number of displays supported	1
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	1
HDCP	Yes
HDCP version	1.4/2.2
DisplayPort version	1.4
Maximum resolution	7680 x 4320 pixels
Refresh rate at maximum resolution	30 Hz
Supported graphics resolutions	1024 x 768 (XGA), 1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA), 2560 x 1440, 2560 x 1600 (WQXGA), 3840 x 2160, 4096 x 2160, 7680 x 4320
Audio output channels	7.1 channels
Chipset	Parade PS8468, VIA VL102

Design

Product colour	Black
Housing material	Plastic
Integrated USB cable	Yes

System requirements

Windows operating systems supported	Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64
Mac compatibility	Yes
Mac operating systems supported	Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 13.0 Ventura

Weight & dimensions

Width	40 mm
Depth	43 mm
Height	11.4 mm
Weight	22 g

Operational conditions

Operating temperature (T-T)	5 - 45 °C
Storage temperature (T-T)	-10 - 70 °C
Operating relative humidity (H-H)	10 - 85%

Packaging data

Package width	124 mm
Package depth	226 mm
Package height	11 mm
Package weight	26 g

Technical details

Sustainability compliance	Yes
Compliance certificates	CE, RoHS

Logistics data

Products per master (outer) case	200 pc(s)
Master (outer) case width	328 mm
Master (outer) case length	482 mm
Master (outer) case height	210 mm
Harmonized System (HS) code	84733020
