Manufacturer Code: CDP2VGAUACP
Overview

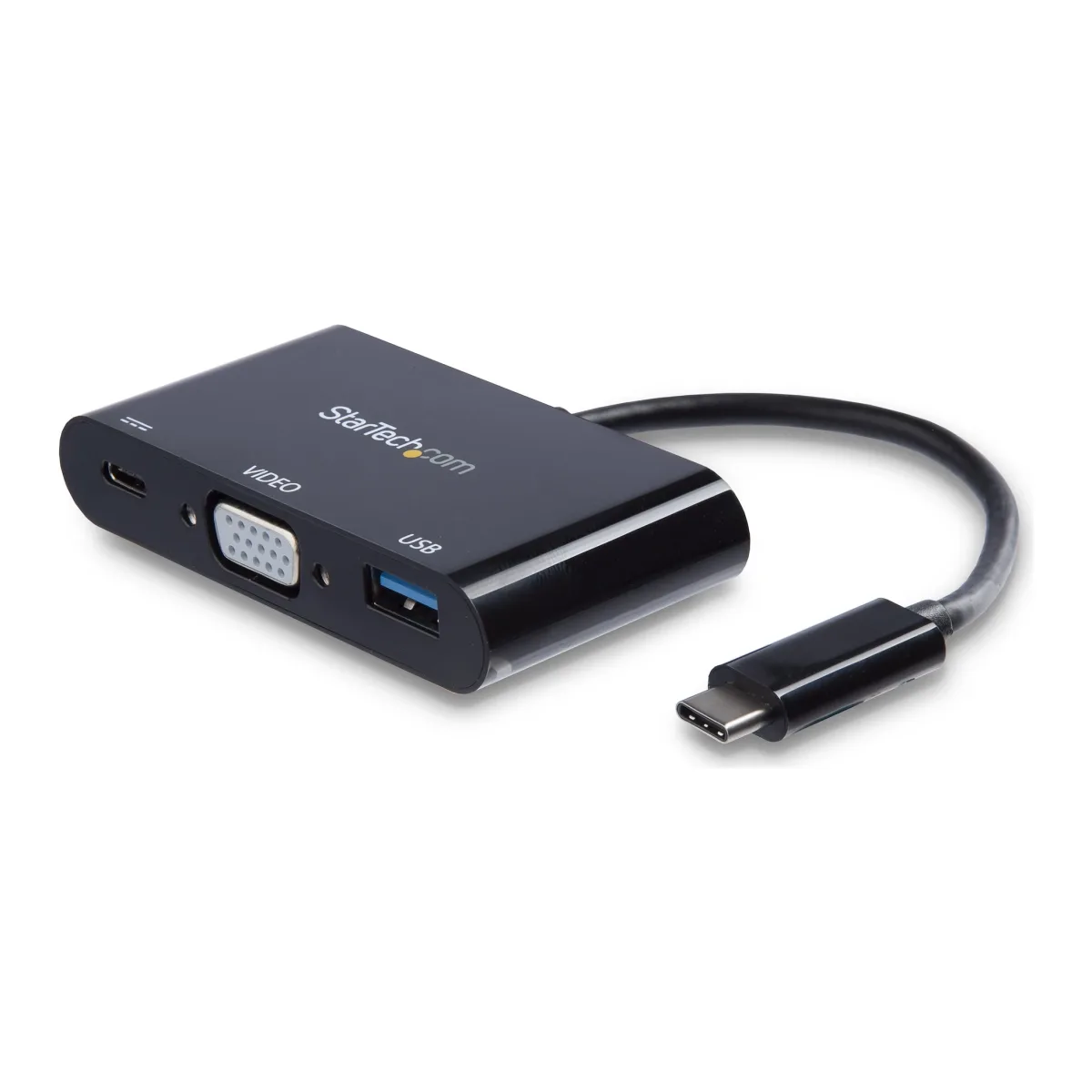

Startech USB-C VGA Multiport Adapter - USB-A Port - with Power Delivery (USB PD) - USB C Adapter Converter - USB C Dongle (CDP2VGAUACP) - Docking station - USB-C / Thunderbolt 3 - VGA is available through DCS Components. It sits within the Docking Stations category.
Key product details
Procurement and setup support
Available for quote while live availability remains in stock. DCS can help with procurement, compatibility checks, configuration planning, installation support and long-term managed IT lifecycle support.
EAN: 0065030866293
| Connectivity technology | Wired |
|---|---|
| Host interface | USB 3.2 Gen 1 (3.1 Gen 1) Type-C |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 1 |
| USB Power Delivery (USB PD) | Yes |
| USB Power Delivery up to | 60 W |
| VGA (D-Sub) ports quantity | 1 |
| Microphone in | No |
| Ethernet LAN | No |
|---|
| Card reader integrated | No |
|---|---|
| Data transfer rate | 5 Gbit/s |
| Maximum analog resolution | 2048 x 1280 pixels |
| Product colour | Black |
| UASP support | Yes |
| Housing material | Plastic |
| Brand compatibility | Any brand |
| Power source type | USB |
|---|
| Operating temperature (T-T) | 0 - 45 °C |
|---|---|
| Storage temperature (T-T) | -10 - 70 °C |
| Operating relative humidity (H-H) | 5 - 90% |
| Sustainability compliance | Yes |
|---|

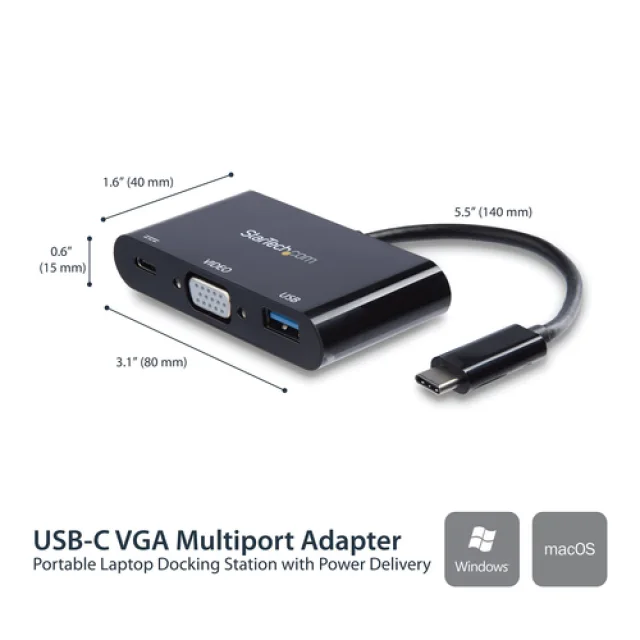

| Width | 40 mm |
|---|---|
| Depth | 80 mm |
| Height | 15 mm |
| Weight | 39 g |
| Package width | 145 mm |
|---|---|
| Package depth | 171 mm |
| Package height | 34 mm |
| Package weight | 109 g |
| Compliance certificates | CE, RoHS |
|---|
| Products per master (outer) case | 60 pc(s) |
|---|---|
| Master (outer) case width | 338 mm |
| Master (outer) case length | 531 mm |
| Master (outer) case height | 315 mm |
| Harmonized System (HS) code | 84733020 |
| Cable length | 0.14 m |
|---|---|
| Chipset | VIA/VLI - VL100, VIA/VLI - VL210, NXP - PTN3355 |
