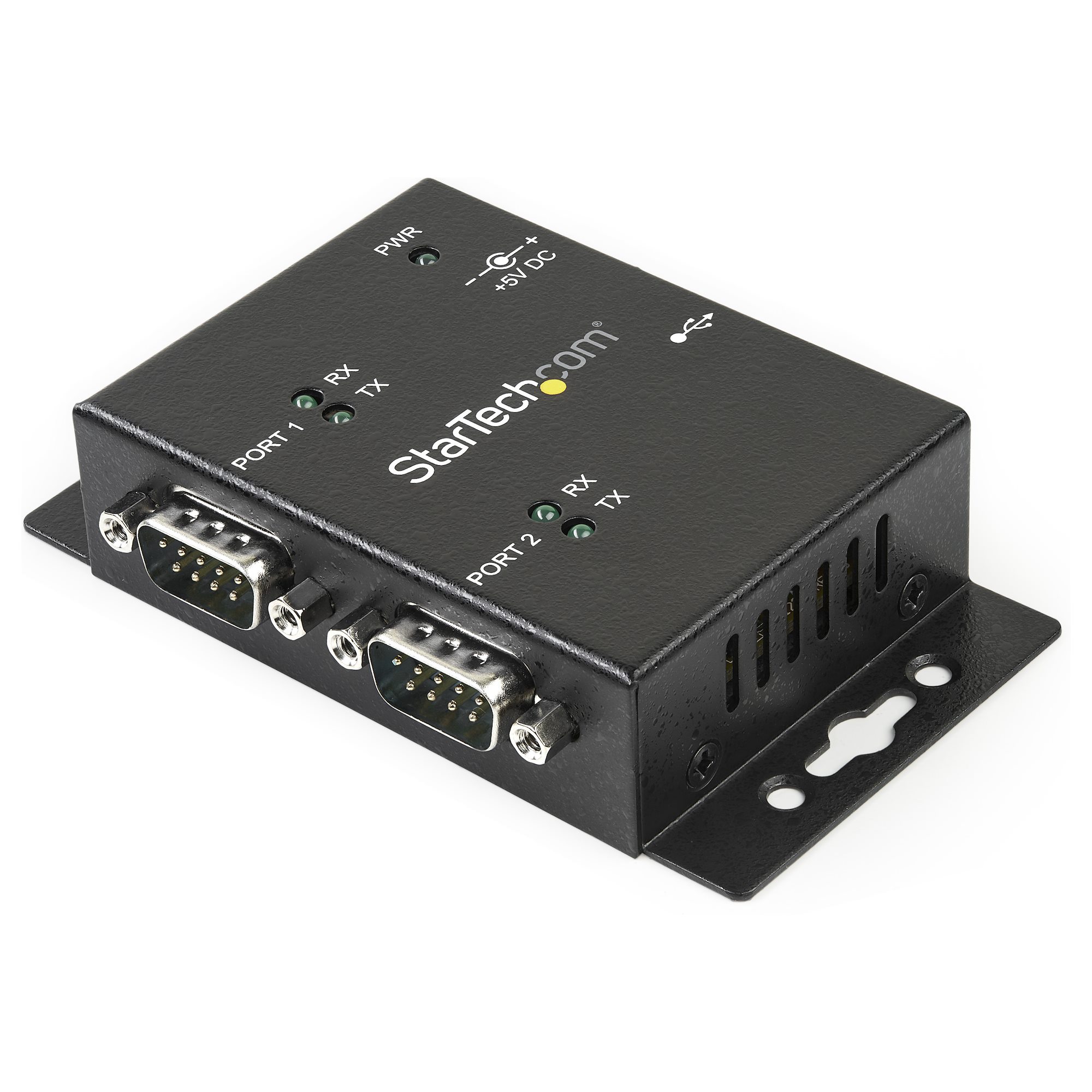

Startech USB to Serial Adapter - 2 Port - Wall Mount - Din Rail Clips - Industrial - COM Port Retention - FTDI - DB9 (ICUSB2322I) - Serial adapter - USB 2.0 - RS-232 x 2 - black

Description

Manufacturer Code: ICUSB2322I

Overview

Startech USB to Serial Adapter - 2 Port - Wall Mount - Din Rail Clips - Industrial - COM Port Retention - FTDI - DB9 (ICUSB2322I) - Serial adapter - USB 2.0 - RS-232 x 2 - black is available through DCS Components. It sits within the Cables & Adapters category.

Key product details

• 2 Port
• Wall Mount
• Din Rail Clips
• Industrial
• COM Port Retention

Procurement and setup support

Available for quote while live availability remains in stock. DCS can help with procurement, compatibility checks, configuration planning, installation support and long-term managed IT lifecycle support.

EAN: 0065030846943

Specifications

Ports & interfaces

Host interface	USB 2.0 Type-B
Hub interfaces	Serial
Ports quantity	2
RS-232 ports	2

Features

Product colour	Black
Housing material	Steel
LED indicators	Activity

System requirements

Windows operating systems supported	Windows 2000, Windows 2000 Professional, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64, Windows 98SE, Windows CE, Windows Vista, Windows Vista Business, Windows Vista Business x64, Windows Vista Enterprise, Windows Vista Enterprise x64, Windows Vista Home Basic, Windows Vista Home Basic x64, Windows Vista Home Premium, Windows Vista Home Premium x64, Windows Vista Ultimate, Windows Vista Ultimate x64, Windows Vista x64, Windows XP, Windows XP Home, Windows XP Home x64, Windows XP Professional, Windows XP Professional x64
Mac operating systems supported	Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 10.6 Snow Leopard, Mac OS X 10.7 Lion, Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks, Mac OS X 13.0 Ventura
Linux operating systems supported	Yes
Other operating systems supported	Windows XP Embedded
Compatible operating systems	Windows 7 (32/64bit), Vista(32/64), XP(32/64), 2000, CE, Windows Server 2008 R2, 2003(32/64), 2000, Mac OS 10.x, Linux 2.4.x/ 2.6.x

Weight & dimensions

Width	66 mm
Depth	104 mm
Height	24 mm
Weight	162 g

Packaging data

Quantity per pack	1 pc(s)
Package width	145 mm
Package depth	214 mm
Package height	41 mm
Package weight	400 g

Packaging content

Cables included	USB
Manual	Yes
DIN rail kit included	Yes
Drivers included	Yes

Operational conditions

Operating temperature (T-T)	0 - 55 °C
Storage temperature (T-T)	-20 - 85 °C
Operating relative humidity (H-H)	5 - 95%

Performance

Data bits	7, 8
Stop bits	1, 2
Parity bit	Even, Mark, No, Odd, Space
FIFO (First In, First Out)	256 B
Baud rate	921.6 Kbit/s

Sustainability

Sustainability compliance	Yes

Logistics data

Master (outer) case width	444 mm
Master (outer) case length	525 mm
Master (outer) case height	364 mm
Products per master (outer) case	45 pc(s)
Harmonized System (HS) code	84719000

Technical details

Compliance certificates	CE, RoHS

Other features

Chipset	FTDI - FT232RL
