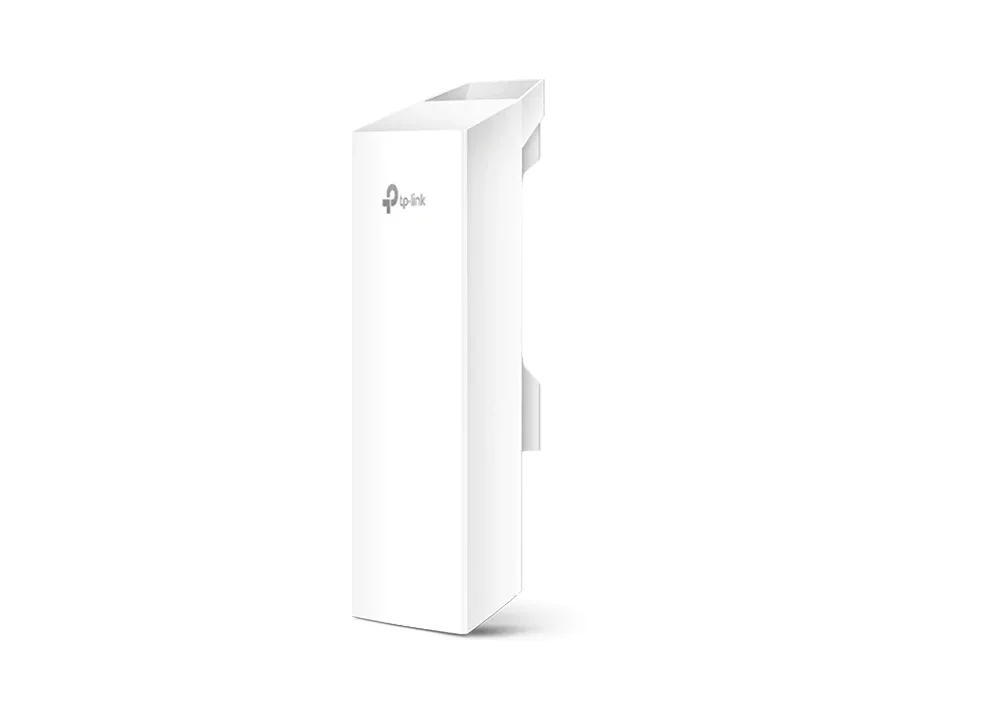

TP-link 2.4GHz 300Mbps 9dBi Outdoor CPE with built-in MIMO antenna - CPE210

Description

Manufacturer Code: CPE210

Overview

TP-link 2.4GHz 300Mbps 9dBi Outdoor CPE with built-in MIMO antenna - CPE210 is available through DCS Components. It sits within the General Catalogue category.

Key product details

• CPE210

Procurement and setup support

Available for quote while live availability remains in stock. DCS can help with procurement, compatibility checks, configuration planning, installation support and long-term managed IT lifecycle support.

EAN: 1210002611435

Specifications

Features

2.4 GHz	Yes
5 GHz	No
Maximum data transfer rate	300 Mbit/s
Maximum data transfer rate (2.4 GHz)	300 Mbit/s
Frequency band	2.4 - 2.483 GHz
Bandwidth	2.4 GHz
Networking standards	IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
MIMO	Yes
MIMO type	Multi User MIMO
Maximum outdoor range	5000 m
Receiver sensitivity	802.11b: 11M: -95dBm, 5.5M: -96dBm, 2M: -96dBm, 1M: -96dBm -802.11g: 54M: -79dBm, 48M: -80dBm, 36M: -84dBm, 6-24M: -88dBm 802.11n: MCS15: -76dBm, MCS14: -78dBm, MCS13: -80dBm, MCS12: -84dBm, MCS11: -87dBm, MCS10: -91dBm, MCS9: -93dBm, MCS8: -96dBm, MCS7: -76dBm, MCS6: -78dBm, MCS5: -80dBm, MCS4: -84dBm, MCS3: -87dBm, MCS2: -91dBm, MCS1: -93dBm, MCS0: -96dBm

Security

Security algorithms	64-bit WEP, 128-bit WEP, 152-bit WEP, SSID, TKIP, WPA, WPA-PSK, WPA2, WPA2-PSK
MAC address filtering	Yes

Protocols

Management protocols	TDMA

Management features

Web-based management	Yes
Management platform	Pharos Control

Ports & interfaces

Ethernet LAN (RJ-45) ports	1

Power

Power over Ethernet (PoE)	Yes
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Input current	0.8 A
Output voltage	24 V
Output current	1 A
Power consumption (max)	10.5 W

Design

Placement	Wall
Product colour	White
International Protection (IP) code	IPX5
Reset button	Yes
LED indicators	Yes

Antenna

Antenna type	Internal
Antenna features	Integrated antenna
Antennas quantity	1
Antenna gain level (max)	9 dBi

Performance

Built-in processor	Yes
Processor model	Qualcomm Atheros
Processor frequency	560 MHz
Flash memory	8 MB
Internal memory	64 MB
Compatible operating systems	Microsoft Windows 98SE, NT, 2000, XP, Vista or Windows 8, Windows 7, MAC OS, NetWare, UNIX or Linux.

Certificates

Certification	- FCC/UL/IC/GS/PSB/C-tick/SAA/S-Mark/KC-mark - RoHS, IPX5

Weight & dimensions

Width	224 mm
Depth	79 mm
Height	60 mm

Packaging content

Cables included	AC
Mounting kit	Yes

Operational conditions

Operating relative humidity (H-H)	10 - 90%
Operating temperature (T-T)	-30 - 70 °C
Storage temperature (T-T)	-40 - 70 °C
Storage relative humidity (H-H)	5 - 95%

Logistics data

Harmonized System (HS) code	85176990
