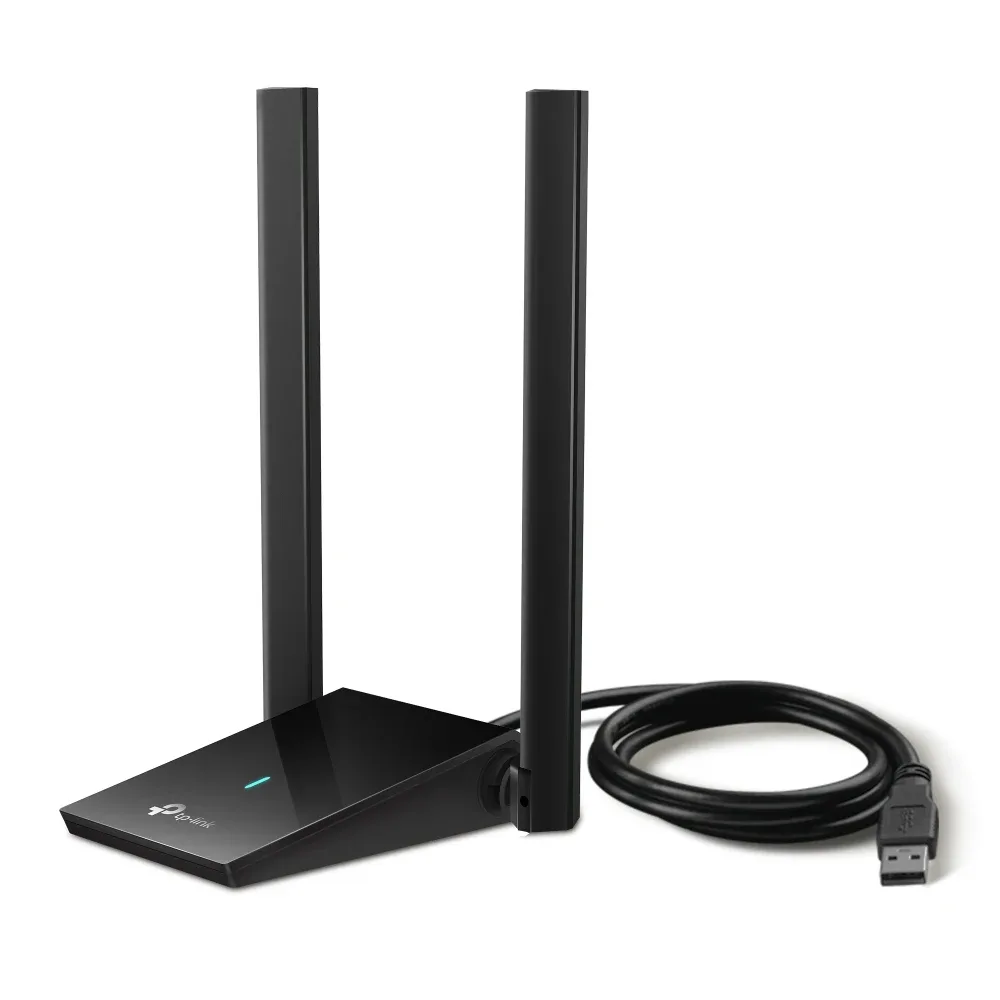

TP-Link Archer TX20U Plus AX1800 High Gain Dual Band Wi-Fi 6 USB Adapter

Description

Lightning-Fast WiFi 6
Stream flawless video with 1800 Mbps wireless speeds (1201 Mbps on 5 GHz + 574 Mbps on 2.4 GHz)

Flexible Dual Band
Ensure your PC has the best connection with 5 GHz and 2.4 GHz bands

Dual High-Gain Antennas
Connect from farther away with high-quality signals and transmissions

MU-MIMO
Maintain high download and upload speeds even when other devices are eating up your bandwidth

OFDMA
Reduce your latency for impeccable conferencing and gameplay on crowded networks

SuperSpeed USB 3.0
Up to 10x faster transfer speeds than USB 2.0

Refined Security
Protect your personal data with the latest WPA3 encryption

Your Upgrade to WiFi 6
Forget about buying a new PC. TX20U Plus delivers powerful dual band WiFi 6 straight to your device for exceptional connectivity and speed up to 1800 Mbps.

Coverage Powered by Beamforming
High-gain antennas combine with Beamforming to concentrate WiFi signals towards your router for better reception and reliable connections from far away.

Escape the Congestion with MU-MIMO
Experience flawless streams, gameplay, and uploads while your network simultaneously processes bandwidth for multiple devices.

Lower Your Ping with OFDMA
Working with a compatible router, your PC receives data at the same time as other devices on the same stream. This means next-to-nothing lag for video and games.

A Perfect Match for Faster Speeds
USB 3.0 ensures there’s no bottleneck between TX20U Plus and your PC.

Adjustable, Multi-Directional Antennas
Rotate and adjust the antennas 180° for the best reception from any location.

Simple Design and Placement
Find the best spot for network reception with TX20U Plus’s desktop-friendly design and 1-meter USB cable.

Specifications

LED
Status

Dimensions (W x D x H)
84 x 156.3 x 19.2 mm (3.3 x 6.2 x 0.76 in)

Antenna
2x High-Gain Dual-Band Antennas

Wireless Standards
IEEE 802.11a/b/g/n/ac/ax

Signal Rate
5 GHz:
11ax: Up to 1201 Mbps(dynamic)
11ac: Up to 867 Mbps(dynamic)
11n: Up to 300 Mbps(dynamic)
11a: Up to 54 Mbps(dynamic)
2.4 GHz:
11ax: Up to 574 Mbps(dynamic)
11n: Up to 400 Mbps(dynamic)
11g: Up to 54 Mbps(dynamic)
11b: Up to 11 Mbps(dynamic)

Reception Sensitivity
5 GHz:
11ax HE80 MCS0: -90 dBm
11ax HE80 MCS11: -59 dBm
11a 54Mbps: -77 dBm
11ac VHT80 MCS0: -92dBm
11ac VHT80 MCS9: -64dBm
2.4 GHz:
11ax HE40 MCS0: -94 dBm
11ax HE40 MCS11: -66 dBm
11g 54Mbps: -79 dBm
11n HT40 MCS9: -74dBm

Wireless Modes
Infrastructure mode

Wireless Security
WEP, WPA/WPA2/WPA3, WPA-PSK/WPA2-PSK

Transmission Power
5 GHz: 19dBm(FCC) /16dBm(CE) (EIRP)
2.4 GHz : 19dBm(FCC) / 14.5dBm(CE) (EIRP)

Certification
FCC, CE, RoHS

System Requirements
Supported operating systems include Windows 10, 11

Package Content
AX1800 Dual Antennas High Gain Wireless USB Adapter
Archer TX20U Plus
Quick Installation Guide
1-meter USB 3.0 Cable

Key Features

• Internal/External: External
• Speed: 1800Mbps
• High-Gain Antenna: Yes

Category: Networking

Manufacturer Code: Archer TX20U Plus

EAN: 4897098689974

Weight (KG): 0.25

VAT Rate: 20%
