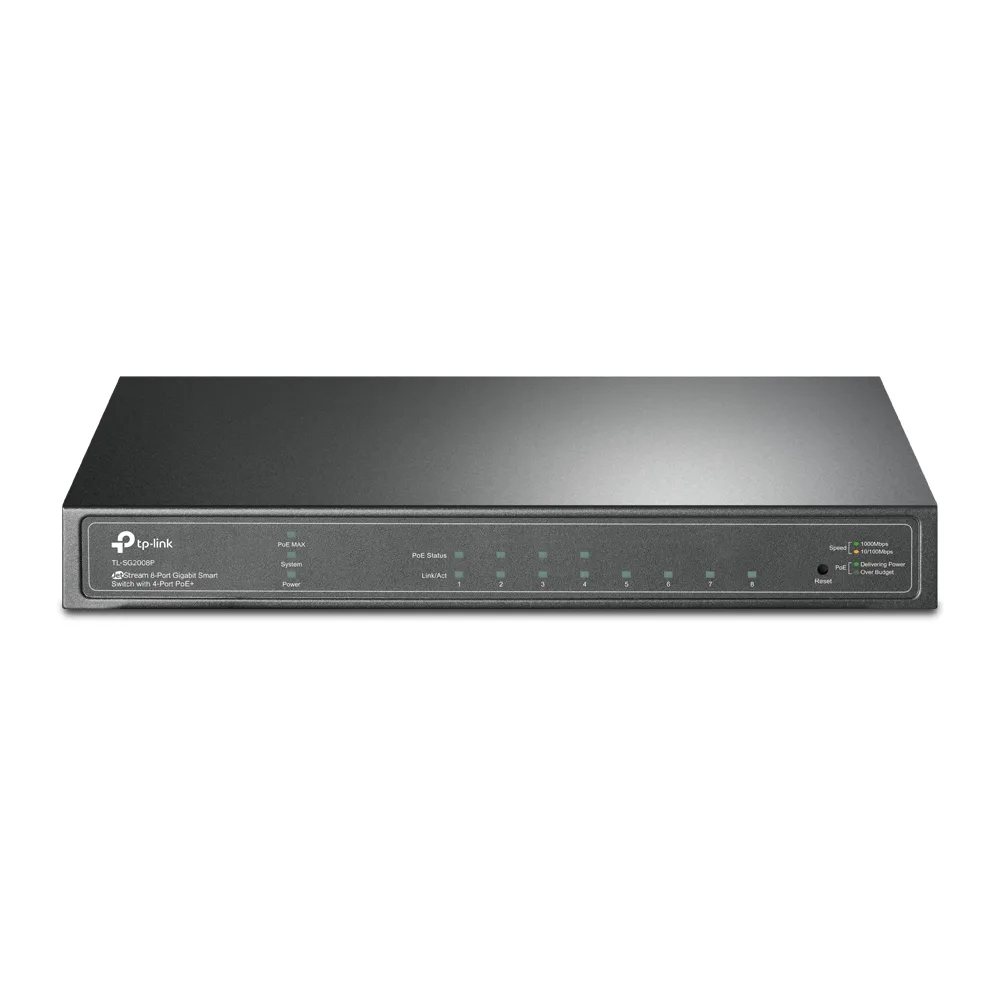

TP-Link JetStream TL-SG2008P V3 - Switch - smart - 4 x 10/100/1000 + 4 x 10/100/1000 (PoE+) - desktop, wall-mountable - PoE+ (62 W)

Description

Manufacturer Code: SG2008P

Overview

TP-Link JetStream TL-SG2008P V3 - Switch - smart - 4 x 10/100/1000 + 4 x 10/100/1000 (PoE+) - desktop, wall-mountable - PoE+ (62 W) is available through DCS Components. It sits within the Managed Switches category.

Key product details

• Switch
• smart
• 4 x 10/100/1000 + 4 x 10/100/1000 (PoE+)
• desktop, wall-mountable
• PoE+ (62 W)

Procurement and setup support

Available for quote while live availability remains in stock. DCS can help with procurement, compatibility checks, configuration planning, installation support and long-term managed IT lifecycle support.

EAN: 6935364010621

Specifications

Management features

Switch type	Managed
Switch layer	L2/L2+
Quality of Service (QoS) support	Yes
Web-based management	Yes
System event log	Yes

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity	8
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Fast Ethernet (copper) ports quantity	8

Network

Networking standards	IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x
10G support	No
Port mirroring	Yes
Flow control support	Yes
Broadcast storm control	Yes
Rate limiting	Yes
Auto MDI/MDI-X	Yes
Auto-negotiation	Yes
VLAN support	Yes
Number of VLANs	4094

Data transmission

Switching capacity	16 Gbit/s
MAC address table	8000 entries
Number of queues	8
Jumbo frames support	Yes
Jumbo frames	9000
Packet buffer memory	0.5 MB

Security

DHCP features	DHCP client, DHCP relay, DHCP snooping, DHCPv6 server, DHCPv6 snooping
IGMP snooping	Yes
Security algorithms	802.1x RADIUS
MAC address filtering	Yes
Authentication	MAC-based authentication, Web-based authentication
Authentication type	RADIUS

Multicast features

Multicast support	Yes

Protocols

Management protocols	SNMPv1/v2c/v3
IPv4 & IPv6 features	IPv6 Telnet, IPv6 ping, IPv6 tracert

Design

Rack mounting	Yes
Product colour	Black
LED indicators	Yes

Performance

Fanless	Yes

Power

Power supply included	Yes
Power consumption (max)	77.3 W

Power over Ethernet (PoE)

Power over Ethernet (PoE)	Yes
Power over Ethernet plus (PoE+) ports quantity	4

Operational conditions

Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-40 - 70 °C
Operating relative humidity (H-H)	10 - 90%
Storage relative humidity (H-H)	5 - 90%
Heat dissipation	263.6 BTU/h

Weight & dimensions

Width	209 mm
Depth	126 mm
Height	26 mm

Packaging content

Manual	Yes

Packaging data

Package type	Box
Package width	240 mm
Package depth	315 mm
Package height	70 mm
Package weight	1.26 kg

Certificates

Certification	CE, FCC, RoHS

Logistics data

Harmonized System (HS) code	85176990
