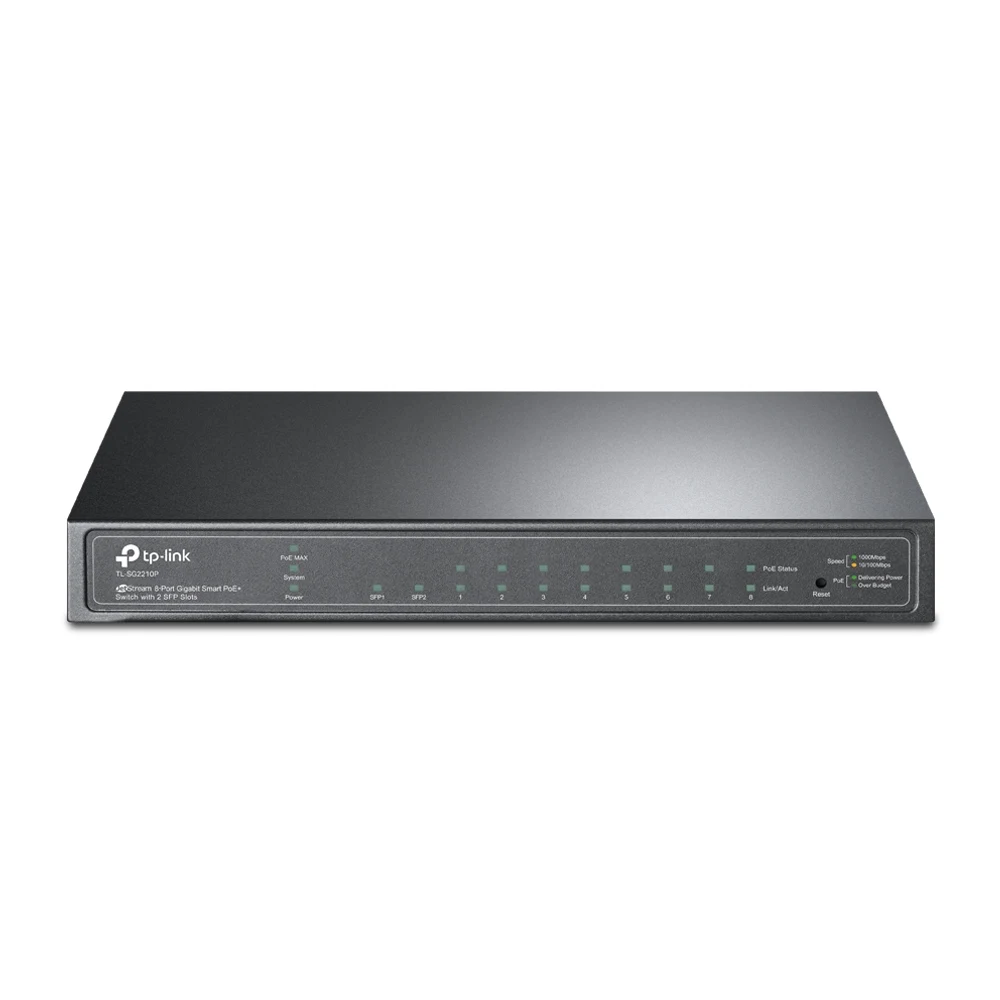

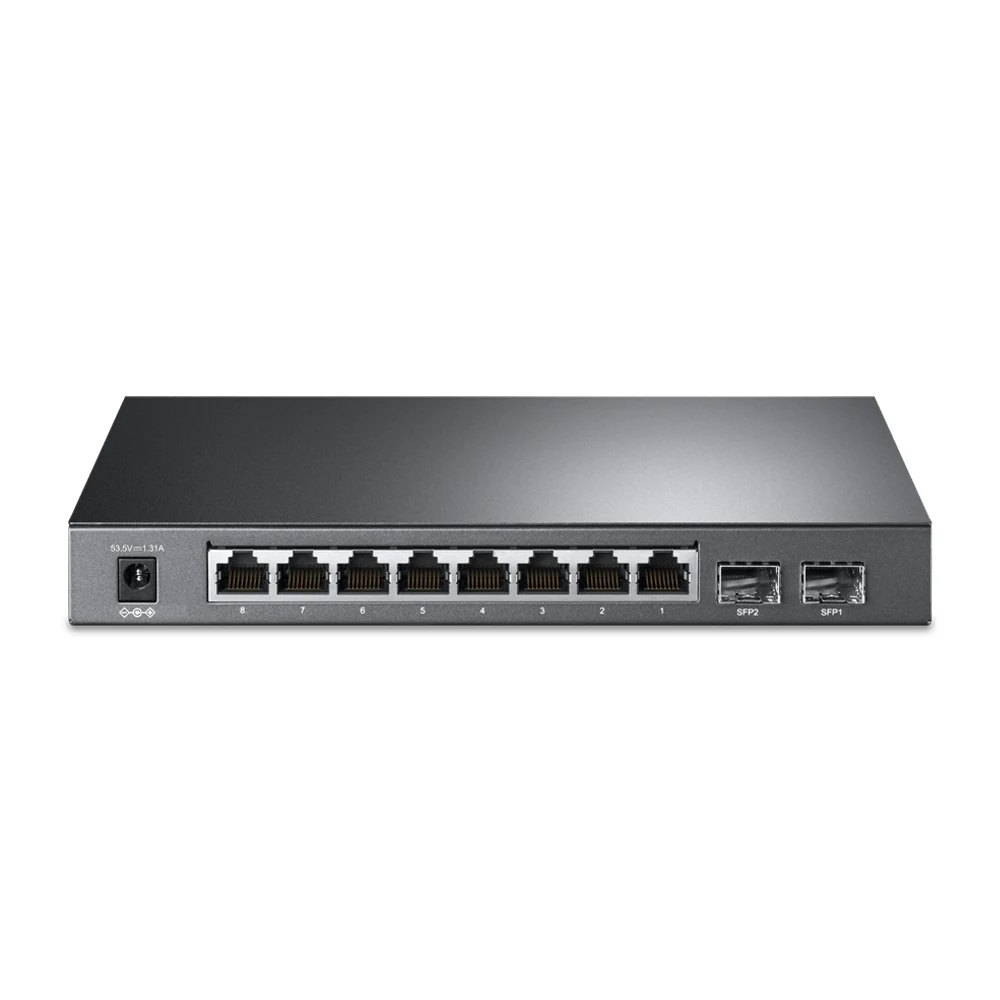

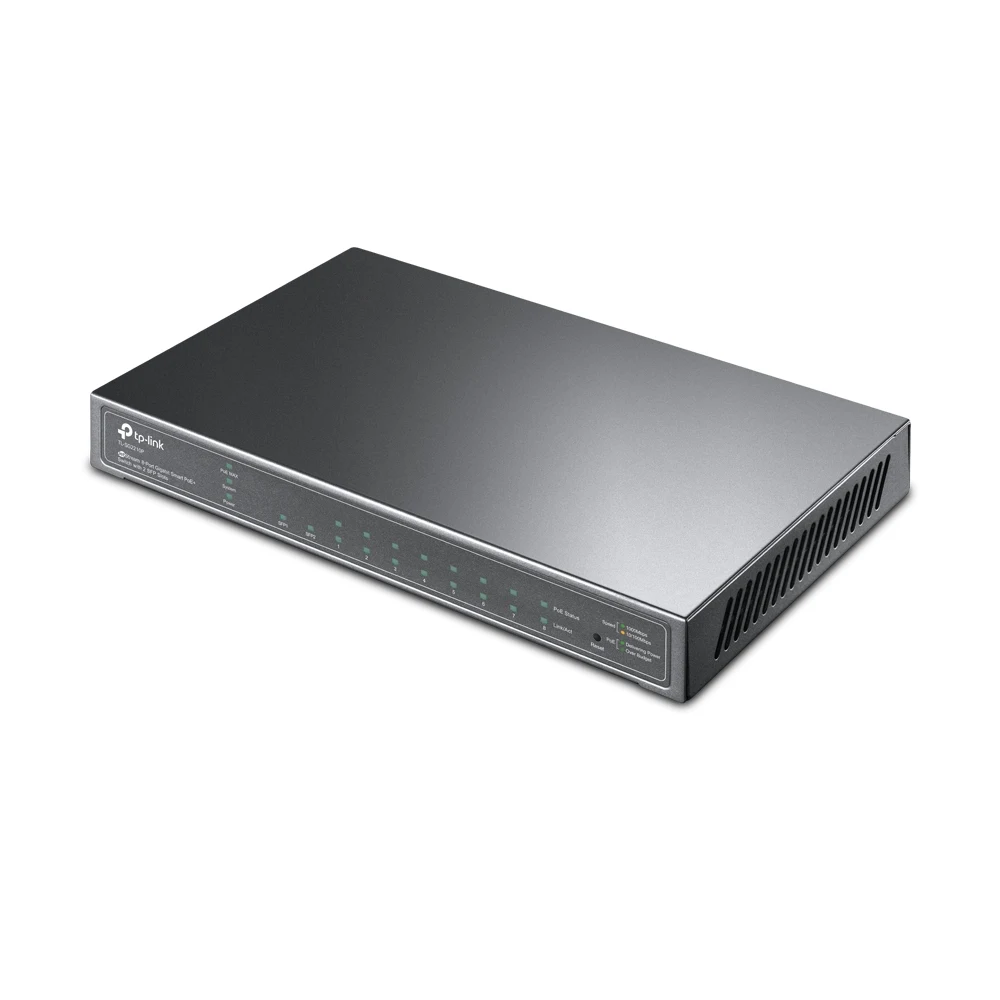

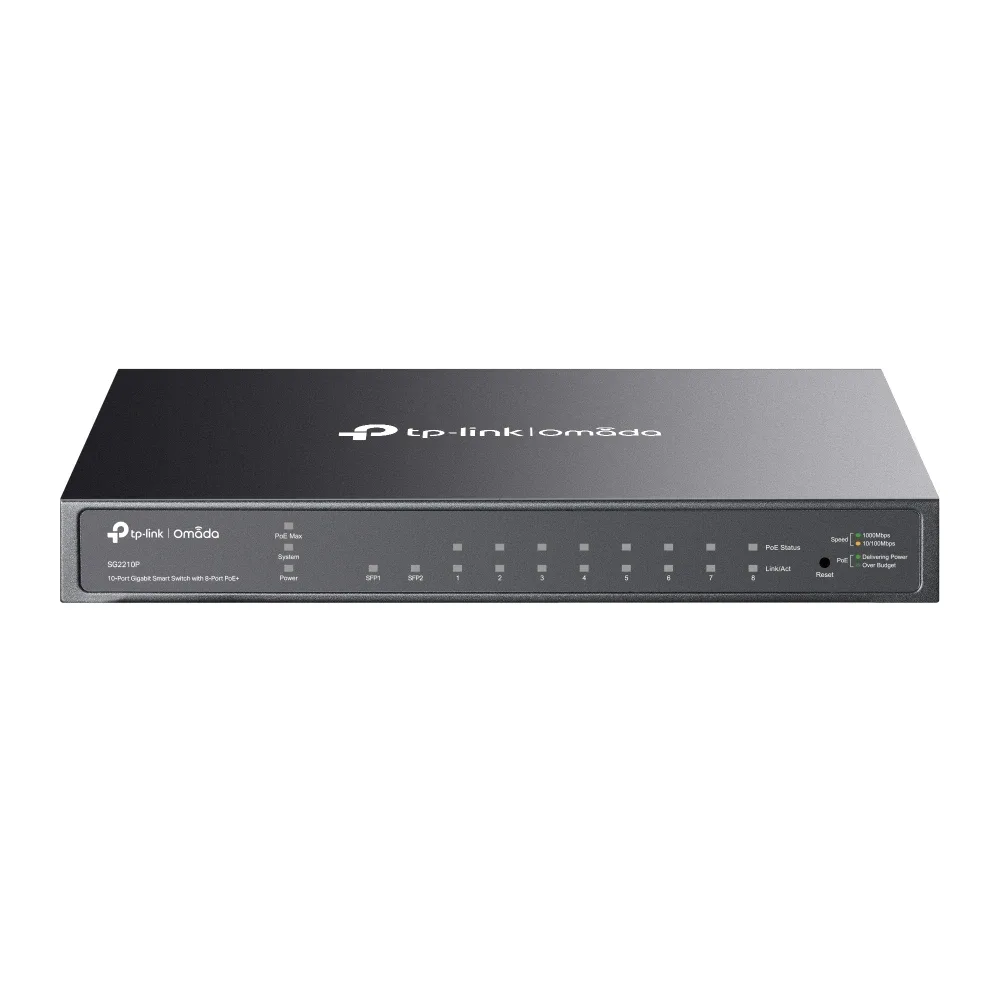

TP-Link JetStream TL-SG2210P V5 - Switch - smart - 8 x 10/100/1000 + 2 x SFP - desktop - PoE (61 W)

Other offers for this product

Save £38.57 against the highest current offer.

Description

Manufacturer Code: SG2210P

Overview

TP-Link JetStream TL-SG2210P V5 - Switch - smart - 8 x 10/100/1000 + 2 x SFP - desktop - PoE (61 W) is available through DCS Components. It sits within the Managed Switches category.

Key product details

• Switch
• smart
• 8 x 10/100/1000 + 2 x SFP
• desktop
• PoE (61 W)

Procurement and setup support

Available for quote while live availability remains in stock. DCS can help with procurement, compatibility checks, configuration planning, installation support and long-term managed IT lifecycle support.

EAN: 6935364030704

Specifications

Management features

Switch type	Managed
Switch layer	L2
Quality of Service (QoS) support	Yes
Web-based management	Yes
MIB support	Y

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity	8
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
SFP module slots quantity	2
Fiber ports quantity	2
Fiber optic connector	SFP
Console port	RJ-45

Network

Networking standards	IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
10G support	No
Copper ethernet cabling technology	1000BASE-T, 1000BASE-TX, 10BASE-T
Port mirroring	Yes
Flow control support	Yes
Link aggregation	Yes
Broadcast storm control	Yes
Rate limiting	Yes
Spanning tree protocol	Yes
VLAN support	Yes
Virtual LAN features	MAC address-based VLAN, Multicast VLAN, Protocol-based VLAN, Voice VLAN
Number of VLANs	4000

Optical fiber

Fiber ethernet cabling technology	1000BASE-X, 100BASE-FX
Fiber type	Multi-mode

Data transmission

Switching capacity	20 Gbit/s
Forwarding rate	14.88 Mpps
MAC address table	8000 entries
Number of queues	4
Jumbo frames support	Yes
Jumbo frames	9000
Packet buffer memory	4.1 MB

Security

DHCP features	DHCP client, DHCP snooping, DHCPv6 client, DHCPv6 snooping
Access Control List (ACL)	Yes
IGMP snooping	Yes
Security algorithms	SNMP, SSH, SSH-2
MAC address filtering	Yes
SSH/SSL support	Yes
BPDU filtering/protection	Yes

Multicast features

Multicast support	Yes

Design

Product colour	Black
LED indicators	Link, PoE, Power

Performance

Compatible operating systems	Microsoft® Windows® 98SE, NT, 2000, XP, Vista™ or Windows 7/8, MAC® OS, NetWare®, UNIX® or Linux.
Fanless	Yes
Minimum system requirements	Microsoft® Windows® 98SE, NT, 2000, XP, Vista™ or Windows 7/8, MAC® OS, NetWare®, UNIX® or Linux.

Power

Power source	AC
Power supply included	Yes
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (max)	75.3 W

Power over Ethernet (PoE)

Power over Ethernet (PoE)	Yes
Power over Ethernet plus (PoE+) ports quantity	8
Total Power over Ethernet (PoE) budget	58 W

Operational conditions

Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-40 - 70 °C
Operating relative humidity (H-H)	10 - 90%
Storage relative humidity (H-H)	5 - 90%

Weight & dimensions

Width	209 mm
Depth	126 mm
Height	26 mm

Packaging content

Cables included	AC
Quick start guide	Yes

Packaging data

Package width	240 mm
Package depth	315 mm
Package height	70 mm
Package weight	1.25 kg

Certificates

Certification	CE, FCC, RoHS

Logistics data

Harmonized System (HS) code	85176990
