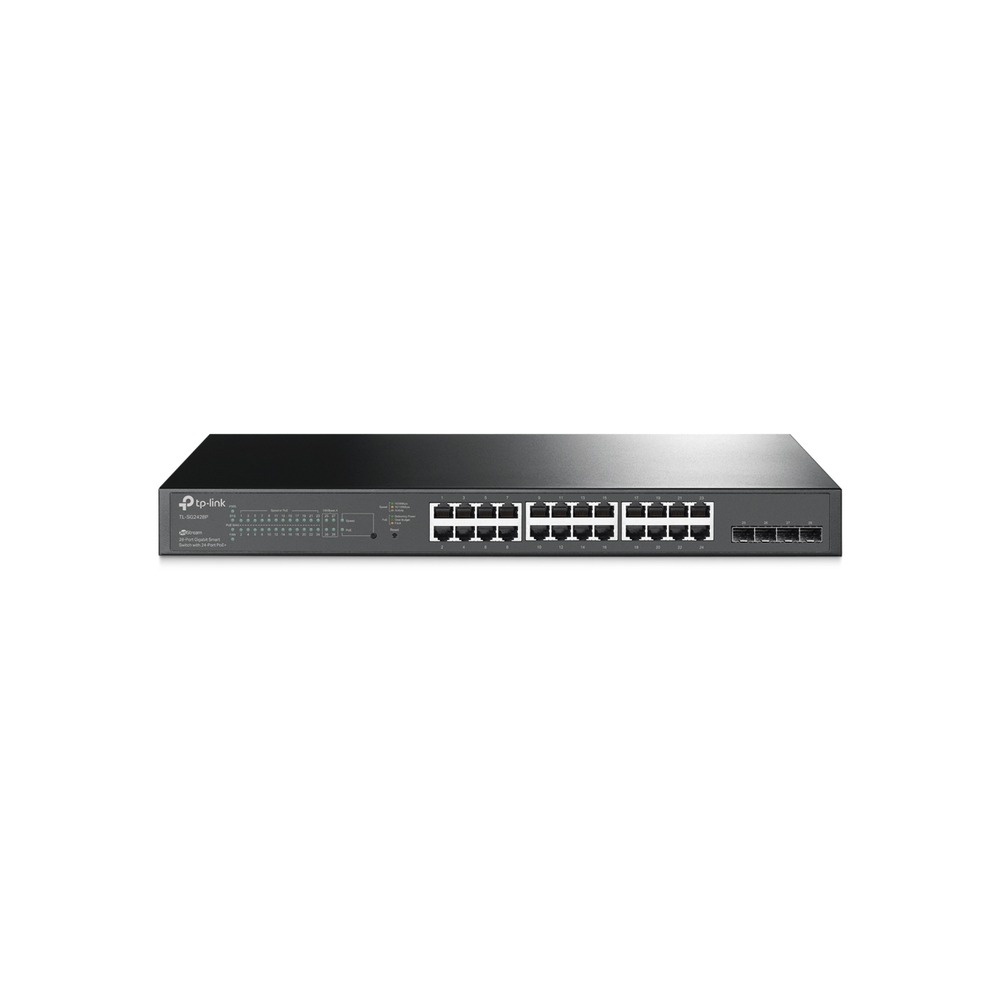

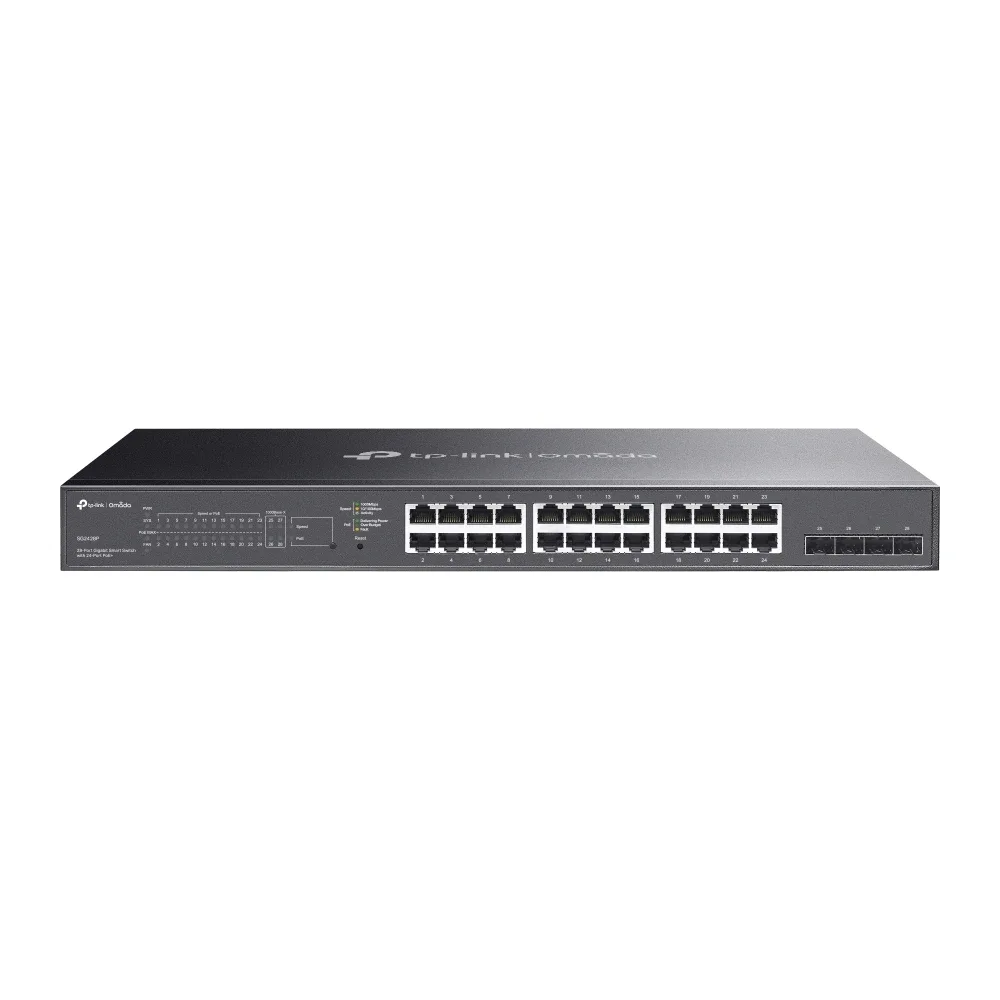

TP-Link JetStream TL-SG2428P V5 - Switch - L2+ - smart - 24 x 10/100/1000 (PoE+) + 4 x Gigabit SFP - rack-mountable - PoE+ (250 W)

Description

Manufacturer Code: SG2428P

Overview

TP-Link JetStream TL-SG2428P V5 - Switch - L2+ - smart - 24 x 10/100/1000 (PoE+) + 4 x Gigabit SFP - rack-mountable - PoE+ (250 W) is available through DCS Components. It sits within the Managed Switches category.

Key product details

• Switch
• L2+
• smart
• 24 x 10/100/1000 (PoE+) + 4 x Gigabit SFP
• rack-mountable

Procurement and setup support

Available for quote while live availability remains in stock. DCS can help with procurement, compatibility checks, configuration planning, installation support and long-term managed IT lifecycle support.

EAN: 6935364030667

Specifications

Management features

Switch type	Managed
Switch layer	L2/L2+
Quality of Service (QoS) support	Yes
Web-based management	Yes
ARP inspection	Yes
System event log	Yes
MIB support	Y

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity	24
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Gigabit Ethernet (copper) ports quantity	24
SFP module slots quantity	4

Network

Networking standards	IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
10G support	No
Copper ethernet cabling technology	10BASE-T, 1000BASE-T
Cable types supported	Cat3, Cat4, Cat5, Cat5e
Port mirroring	Yes
Flow control support	Yes
Link aggregation	Yes
Broadcast storm control	Yes
Rate limiting	Yes
Spanning tree protocol	Yes
VLAN support	Yes
Virtual LAN features	MAC address-based VLAN, Protocol-based VLAN, Voice VLAN
Number of VLANs	4000

Optical fiber

Fiber ethernet cabling technology	1000BASE-X

Data transmission

Switching capacity	56 Gbit/s
Forwarding rate	41.7 Mpps
MAC address table	8000 entries
Number of queues	8
Jumbo frames support	Yes
Jumbo frames	9000
Packet buffer memory	4.1 MB

Security

DHCP features	DHCP client, DHCP relay, DHCP server, DHCP snooping, DHCPv6 client
Access Control List (ACL)	Yes
IGMP snooping	Yes
Security algorithms	HTTPS, SNMP, SNMPv2, SNMPv3, SSH, SSH-2, SSL/TLS
SSH/SSL support	Yes
BPDU filtering/protection	Yes
IP-MAC-Port binding	Yes
Authentication type	RADIUS
Queue scheduling algorithms	SP, WRR+SP, Weighted Round Robin (WRR)

Multicast features

Multicast support	Yes

Protocols

Management protocols	SNMPv1/v2c/v3, SNTP

Design

Rack mounting	Yes
Form factor	1U
Product colour	Black
Number of fans	2 fan(s)

Performance

Firmware upgradeable	Yes

Power

Power source	AC
Power supply included	Yes
AC input voltage	100 - 240 V
AC input frequency	50/60 Hz
Power consumption (max)	306.9 W

Power over Ethernet (PoE)

Power over Ethernet (PoE)	Yes
Power over Ethernet plus (PoE+) ports quantity	24
Power over Ethernet (PoE) power per port	30 W
Total Power over Ethernet (PoE) budget	250 W

Operational conditions

Operating temperature (T-T)	0 - 50 °C
Storage temperature (T-T)	-40 - 70 °C
Operating relative humidity (H-H)	10 - 90%
Storage relative humidity (H-H)	5 - 90%
Heat dissipation	1047.3 BTU/h

Weight & dimensions

Width	440 mm
Depth	220 mm
Height	44 mm

Packaging content

Cables included	AC
User guide	Yes
Rack mount kit	Yes

Packaging data

Package width	336 mm
Package depth	528 mm
Package height	100 mm
Package weight	3.98 kg

Certificates

Certification	CE, FCC, RoHS

Logistics data

Harmonized System (HS) code	85176990
