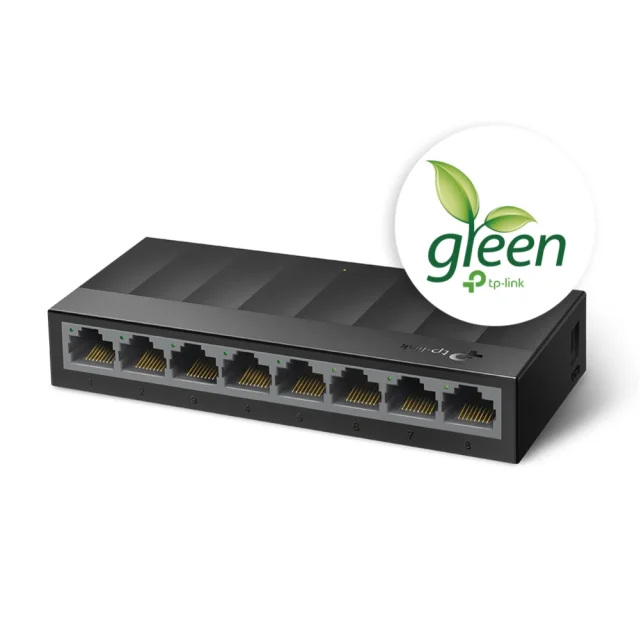

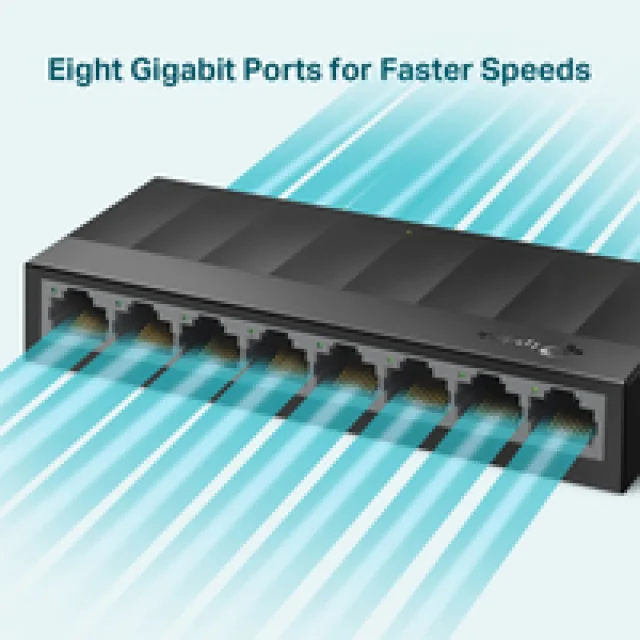

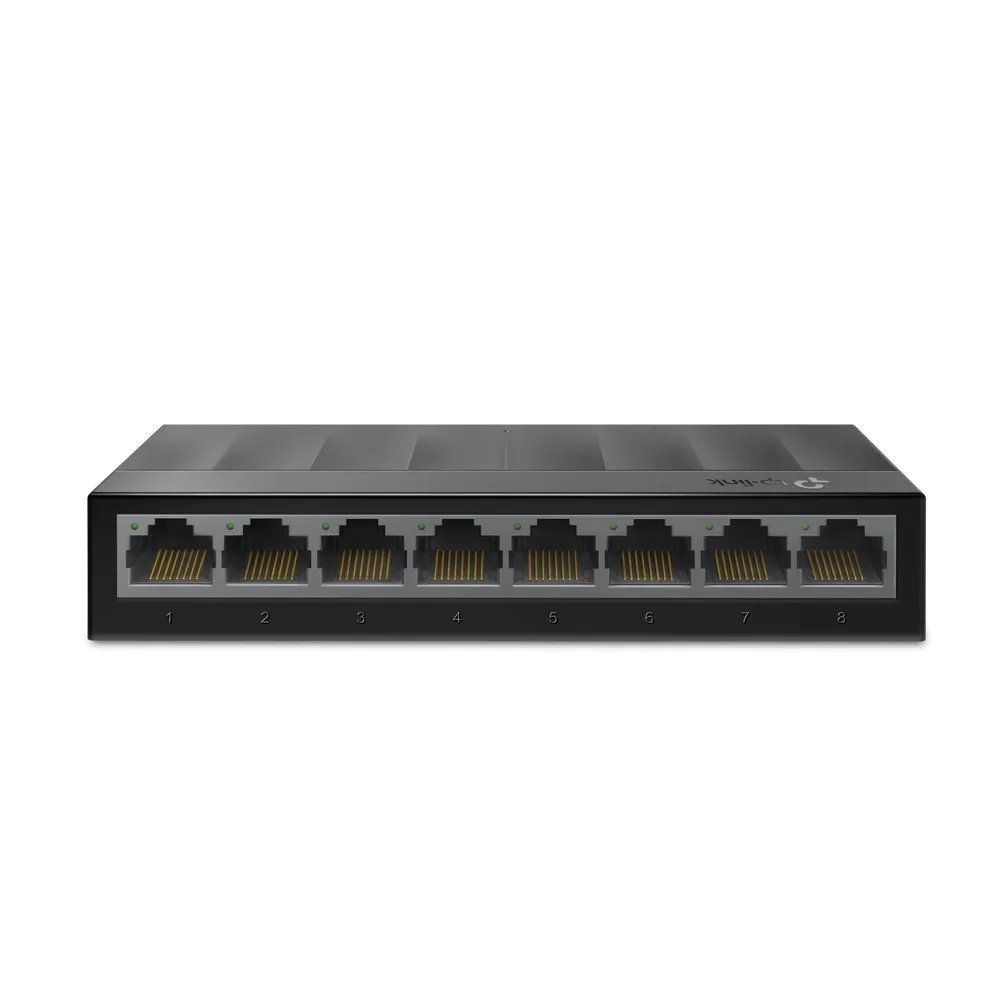

TP-Link LiteWave LS1008G - Switch - unmanaged - 8 x 10/100/1000 - desktop, wall-mountable

Description

Manufacturer Code: LS1008G

Overview

TP-Link LiteWave LS1008G - Switch - unmanaged - 8 x 10/100/1000 - desktop, wall-mountable is available through DCS Components. It sits within the Hubs & Switches category.

Key product details

• Switch
• unmanaged
• 8 x 10/100/1000
• desktop, wall-mountable

Procurement and setup support

Available for quote while live availability remains in stock. DCS can help with procurement, compatibility checks, configuration planning, installation support and long-term managed IT lifecycle support.

EAN: 1210002616201

Specifications

Management features

Switch type	Unmanaged

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity	8
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)

Network

Networking standards	IEEE 802.3i, IEEE 802.3u, IEEE 802.3x
10G support	No
Flow control support	Yes
Auto MDI/MDI-X	Yes
Auto-negotiation	Yes

Data transmission

Switching capacity	16 Gbit/s
Forwarding rate	11.9 Mpps
MAC address table	4000 entries
Store-and-forward	Yes
Jumbo frames support	Yes
Jumbo frames	16000
Packet buffer memory	1.5 MB

Design

Rack mounting	No
Product colour	Black
Housing material	Plastic
Wall mountable	Yes

Power

Power supply included	Yes
DC input voltage	5 V
Input current	0.6 A
Power consumption (max)	3.9 W

Power over Ethernet (PoE)

Power over Ethernet (PoE)	No

Operational conditions

Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-40 - 70 °C
Operating relative humidity (H-H)	10 - 90%
Storage relative humidity (H-H)	5 - 90%
Heat dissipation	13.299 BTU/h

Weight & dimensions

Width	127 mm
Depth	66.5 mm
Height	23 mm

Packaging content

Quick start guide	Yes

Packaging data

Package type	Box

Logistics data

Harmonized System (HS) code	85176990
