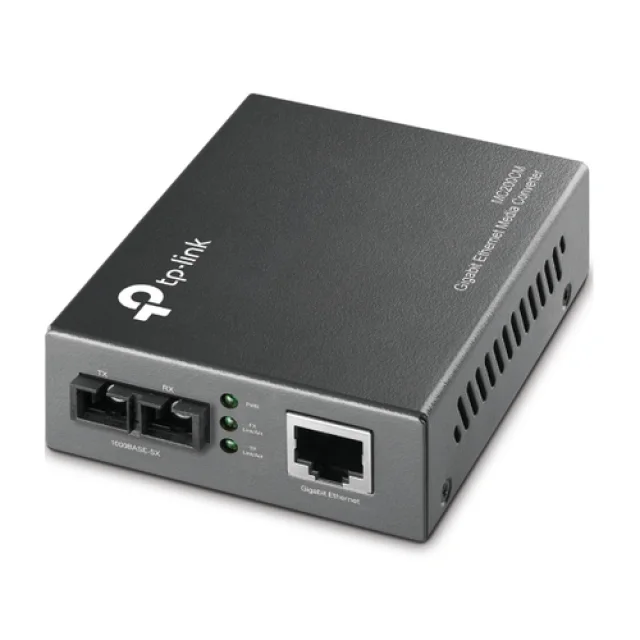

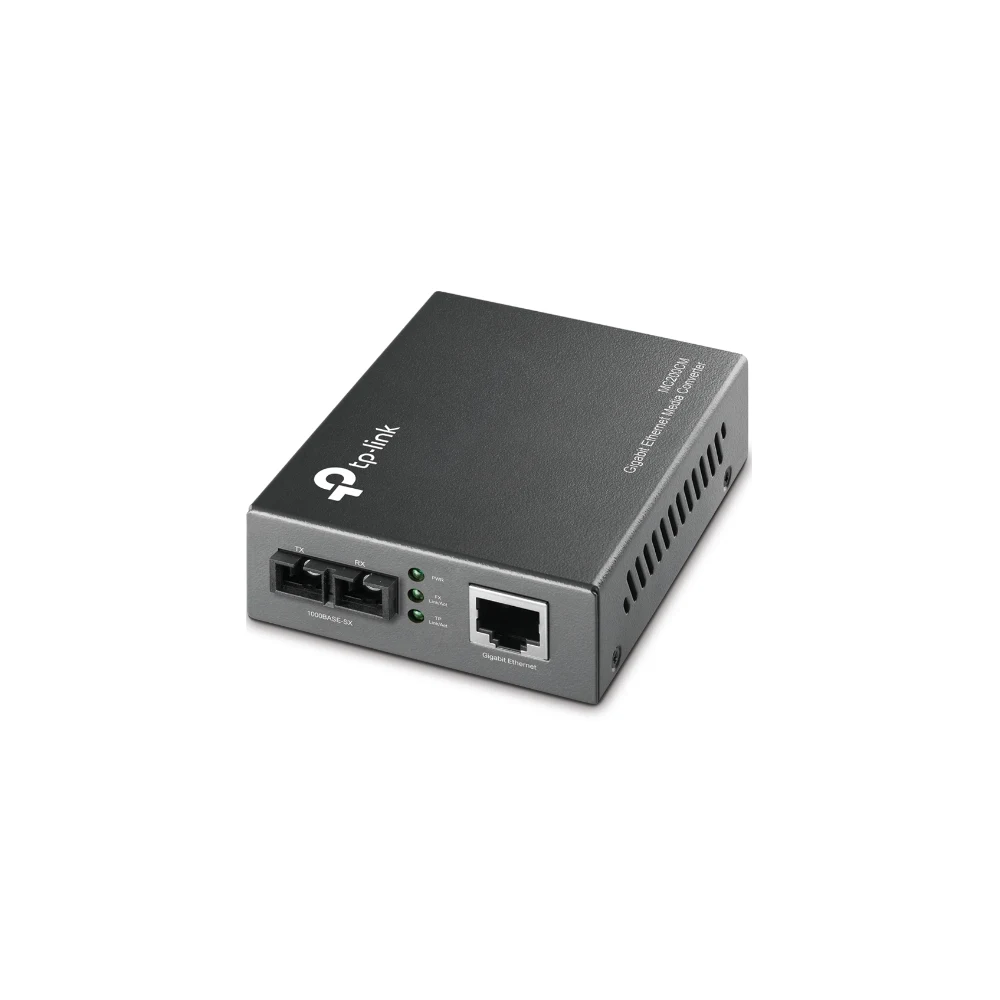

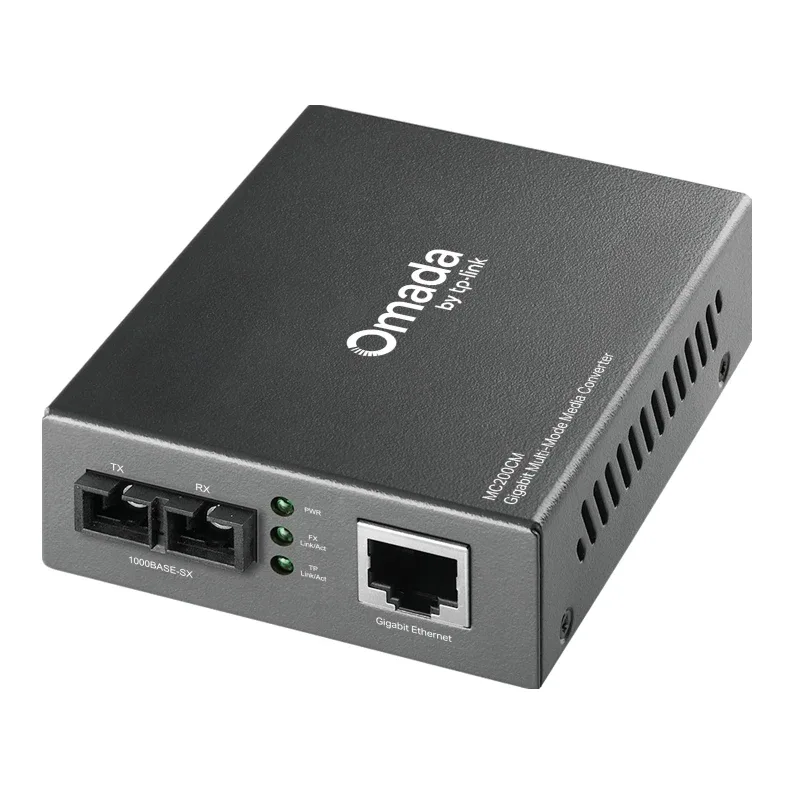

TP-Link MC200CM RJ45 to multi-mode SC fiber Converter

Description

Manufacturer Code: MC200CM

Overview

TP-Link MC200CM RJ45 to multi-mode SC fiber Converter is available through DCS Components. It sits within the Network adapters category.

Procurement and setup support

Available for quote while live availability remains in stock. DCS can help with procurement, compatibility checks, configuration planning, installation support and long-term managed IT lifecycle support.

EAN: 1210002611046

Key product details

• Manufacturer code: MC200CM
• Category: Network adapters
• EAN: 1210002611046

Specifications

Network

Maximum data transfer rate	1000 Mbit/s
Networking standards	IEEE 802.3ab, IEEE 802.3i, IEEE 802.3u, IEEE 802.3z
Ethernet interface type	Gigabit Ethernet
Ethernet LAN data rates	10,100,1000 Mbit/s
Auto MDI/MDI-X	Yes
Duplex system	Full, Half
Cable types supported	Cat5, Cat5e

Performance

Maximum transfer distance	550 m
Wavelength	850 nm
Fiber mode structure	Multi-mode
Fiber cable diameters supported (core/cladding)	50/125,62.5/125 µm

Features

Internal	No
LED indicators	Yes
Product colour	Black

Ports & interfaces

Connectivity technology	Wired
Ethernet LAN (RJ-45) ports	1
Fiber ports quantity	1
Fiber optic connector	SC

Power

Power consumption (max)	1.66 W

Weight & dimensions

Width	95 mm
Depth	73 mm
Height	27 mm

Operational conditions

Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-40 - 70 °C
Operating relative humidity (H-H)	10 - 90%
Storage relative humidity (H-H)	5 - 90%

Packaging content

Manual	Yes

Certificates

Compliance certificates	RoHS

Logistics data

Harmonized System (HS) code	85176990
