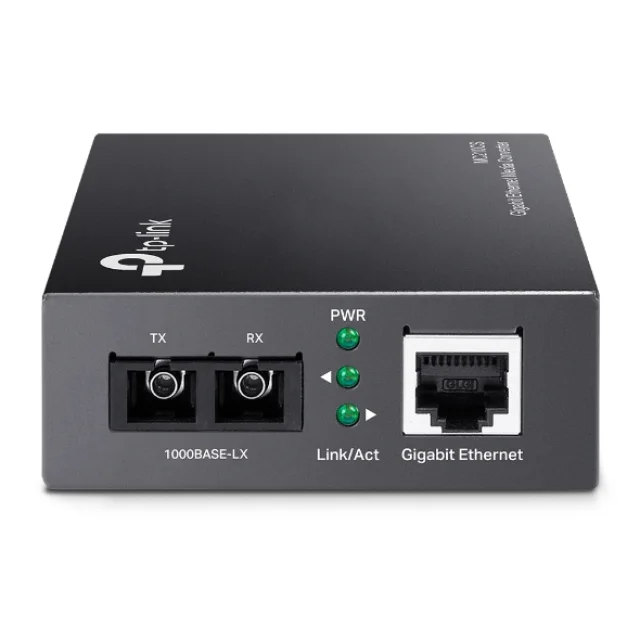

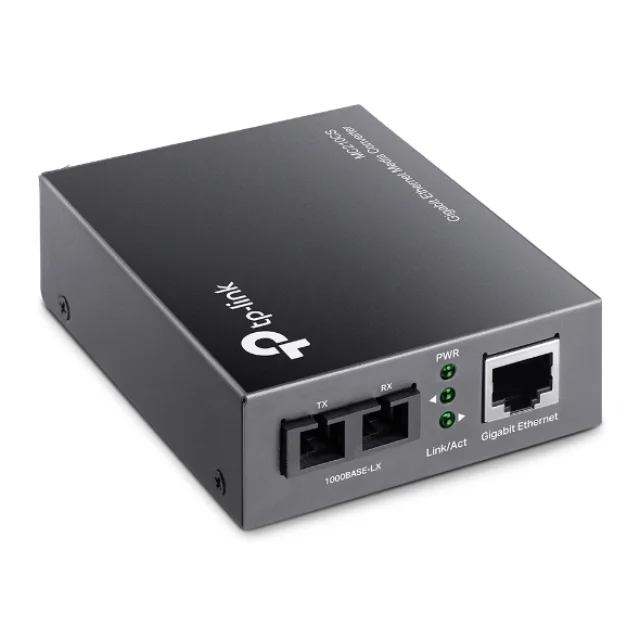

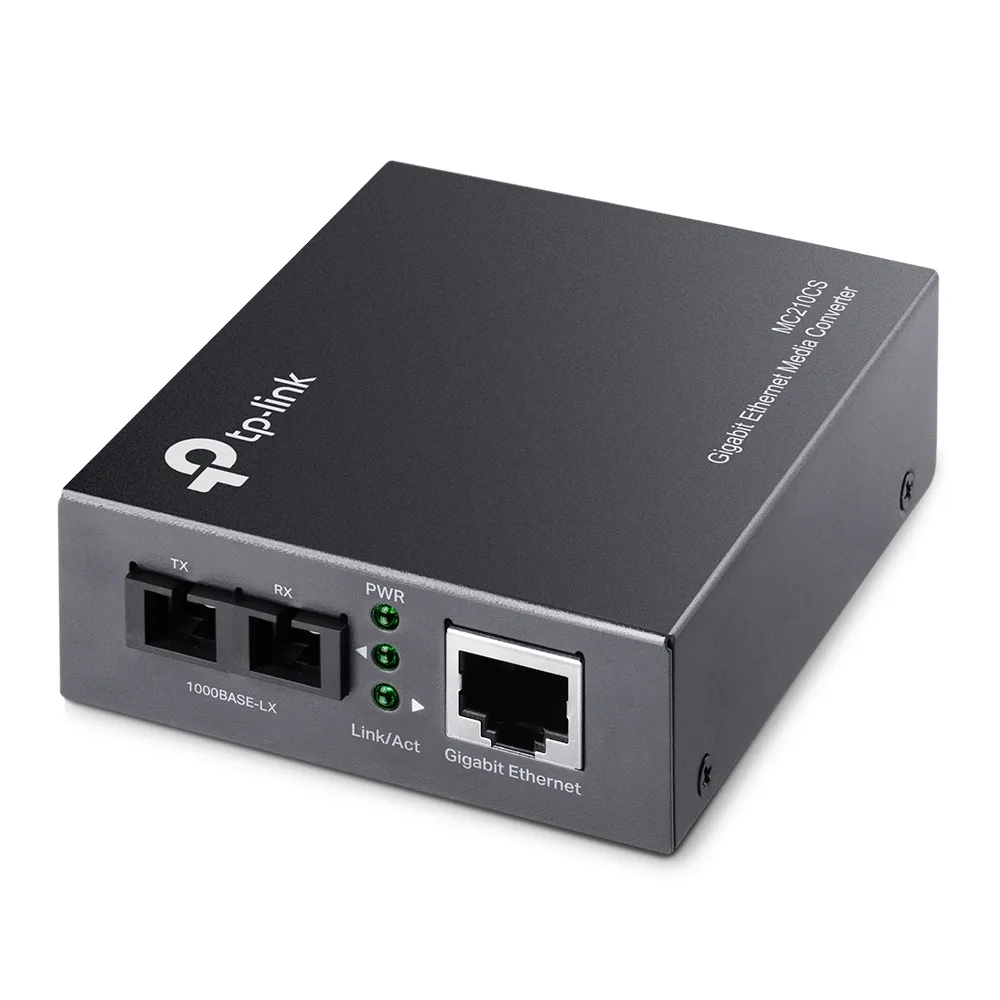

TP-Link MC210CS RJ45 to single-mode SC fiber Converter

Description

Manufacturer Code: MC210CS

Overview

TP-Link MC210CS RJ45 to single-mode SC fiber Converter is available through DCS Components. It sits within the Network adapters category.

Procurement and setup support

Available for quote while live availability remains in stock. DCS can help with procurement, compatibility checks, configuration planning, installation support and long-term managed IT lifecycle support.

EAN: 6935364081348

Key product details

• Manufacturer code: MC210CS
• Category: Network adapters
• EAN: 6935364081348

Specifications

Network

Maximum data transfer rate	1000 Mbit/s
Networking standards	IEEE 802.1ab, IEEE 802.3x, IEEE 802.3z
Ethernet interface type	Gigabit Ethernet
Ethernet LAN data rates	1000 Mbit/s
Auto MDI/MDI-X	Yes
Duplex system	Full
Cable types supported	Cat6

Performance

Maximum transfer distance	15000 m
Wavelength	1310 nm
Fiber mode structure	Single-mode

Features

Internal	No
LED indicators	Activity, Power
Product colour	Black

Ports & interfaces

Connectivity technology	Wired
Ethernet LAN (RJ-45) ports	1
Fiber ports quantity	1
Fiber optic connector	SC

Power

Power consumption (max)	5.5 W

Weight & dimensions

Width	94.5 mm
Depth	73 mm
Height	27 mm

Operational conditions

Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-40 - 70 °C
Operating relative humidity (H-H)	10 - 90%
Storage relative humidity (H-H)	5 - 90%

Packaging data

Package width	165 mm
Package depth	204 mm
Package height	65 mm
Package weight	430 g

Certificates

Compliance certificates	RoHS
Certification	FCC, CE
