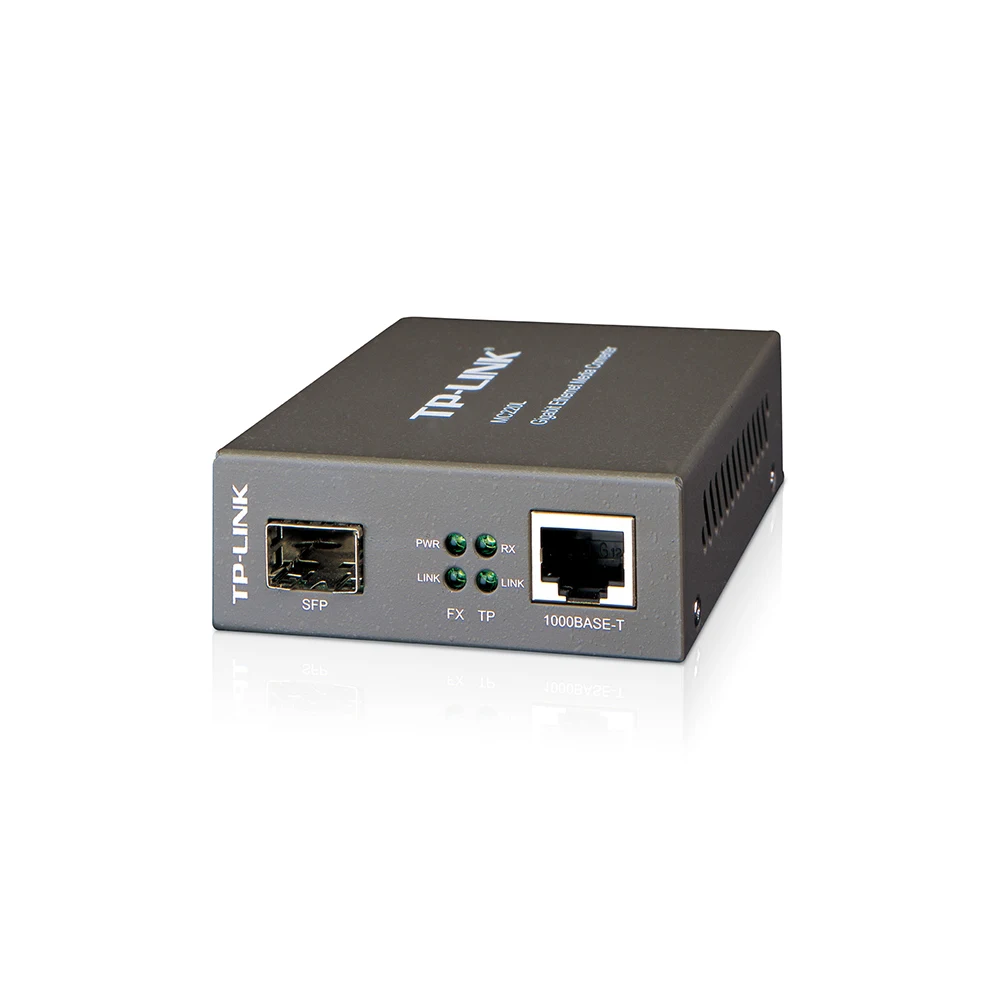

TP-Link MC220L 1000M RJ45 to 1000M SFP slot

Description

Manufacturer Code: MC220L

Overview

TP-Link MC220L 1000M RJ45 to 1000M SFP slot is available through DCS Components. It sits within the General Catalogue category.

Procurement and setup support

Available for quote while live availability remains in stock. DCS can help with procurement, compatibility checks, configuration planning, installation support and long-term managed IT lifecycle support.

EAN: 6935364081294

Key product details

• Manufacturer code: MC220L
• Category: General Catalogue
• EAN: 6935364081294

Specifications

Network

Maximum data transfer rate	1000 Mbit/s
Networking standards	IEEE 802.1ab, IEEE 802.3i, IEEE 802.3u, IEEE 802.3z
Ethernet interface type	Gigabit Ethernet
Ethernet LAN data rates	1000 Mbit/s
Auto MDI/MDI-X	Yes
Cabling technology	UTP 5e, 5

Performance

Maximum transfer distance	10000 m
Fiber mode structure	Multi-mode, Single-mode

Features

Internal	No
LED indicators	Link
Product colour	Black
Compliance industry standards	IEEE 802.3ab, IEEE 802.3z, IEEE 802.3x

Ports & interfaces

Connectivity technology	Wired
Ethernet LAN (RJ-45) ports	1
Fiber ports quantity	1
Fiber optic connector	SFP

Power

Power consumption (max)	1.7 W
External power adapter	Yes

Weight & dimensions

Width	94.5 mm
Depth	73 mm
Height	27 mm

Operational conditions

Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-40 - 70 °C
Operating relative humidity (H-H)	10 - 90%
Storage relative humidity (H-H)	5 - 90%

Packaging data

Package width	204 mm
Package depth	165 mm
Package height	65 mm
Package weight	420 g

Certificates

Certification	FCC, CE

Logistics data

Harmonized System (HS) code	85176990

Other features

Dimensions (WxDxH)	94.5 x 73 x 27 mm
I/O ports	1x 1000M SC 1x 1000M RJ45
Full duplex	Yes
