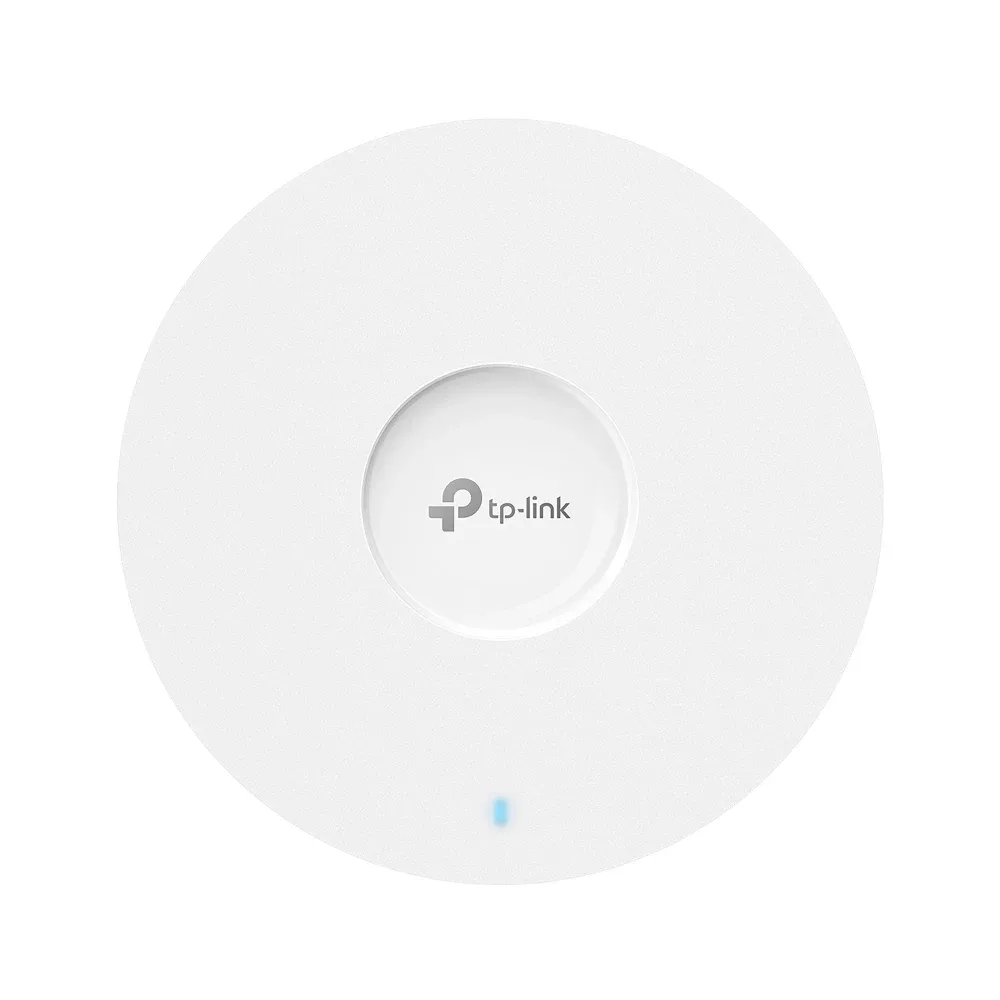

TP-Link Omada AX6000 Ceiling Mount Dual-Band Wi-Fi 6 Ultra Range Access Point

Description

AX6000 Ceiling Mount WiFi 6 Access Point

Features
Up to 5952 Mbps WiFi 6 Speeds: 1148 Mbps on 2.4 GHz + 4804 Mbps on 5 GHz
Ultra-range wireless coverage by 4x4 MIMO dual-band internal antennas with high transmission power.
Supports WiFi 6 technologies, such as HE160, 1024-QAM, etc.
Integrates with the Omada SDN platform for centralized management.
Advanced Features: Omada Mesh, Seamless Roaming, and more.
PoE+ Powered: Supports both 802.3at PoE+ and DC (adapter not included).

Specifications

HARDWARE FEATURES

Interface
1 x 2.5 Gigabit PoE+ Port

Button
Reset

Power Supply
802.3at PoE
12 V / 2 A DC
Note:Power adapter is not included.

Max. Power Consumption
EU: 20.43W
US: 23.69W

Dimensions ( W x D x H )
8.7 x 8.7 x 1.3 in (220 x 220 x 32.5 mm)

Antenna
Internal Omni
2.4 GHz: 4 x 4 dBi
5 GHz: 4 x 5 dBi

Bluetooth
V5.2

Mounting
Ceiling /Wall Mounting (Kits included)

WIRELESS FEATURES

Coverage
185M squared(2000ft²)***

Concurrent Clients
510+**

Wireless Standards
IEEE 802.11ax/ac/n/g/b/a

Frequency
2.4 GHz and 5 GHz

Signal Rate
5 GHz: Up to 4804 Mbps
2.4 GHz: Up to 1148 Mbps

Wireless Functions
1024-QAM
4x Longer OFDM Symbol
OFDMA
Multiple SSIDs (Up to 16 SSIDs, 8 for each band)
Enable/Disable Wireless Radio
Automatic Channel Assignment
Transmit Power Control (Adjust Transmit Power on dBm)
QoS(WMM)
MU-MIMO (4*4 MU-MIMO DL&UL)
MIMO [4*4 (2.4G and 5G) MU-MIMO; 4*4 (2.4G and 5G) SU-MIMO]
HE160 (160 MHz Bandwidth)
Seamless Roaming(802.11k/v/r)
Omada Mesh
Band Steering
Load Balance
Airtime Fairness
Beamforming
Rate Limit
Reboot Schedule
Wireless Schedule
Wireless Statistics based on SSID/AP/Client

Wireless Security
Captive Portal Authentication
Access Control
Wireless Mac Address Filtering
Wireless Isolation Between Clients
SSID to VLAN Mapping
Rogue AP Detection
802.1X Support
WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise

Transmission Power
CE:
