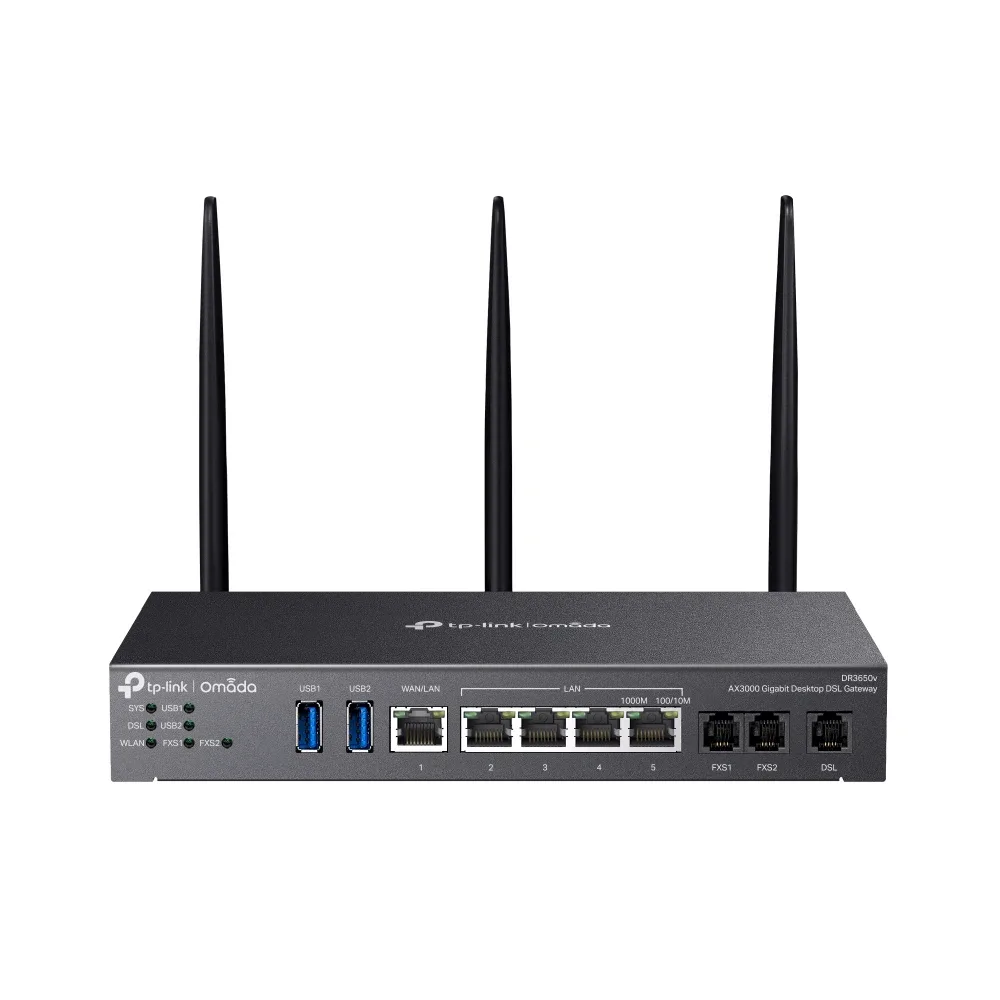

TP-Link Omada DR3650V AX3000 Wi-Fi 6 Gigabit Desktop VDSL Gateway Modem Router

Description

Omada AX3000 Wi-Fi 6 Gigabit Desktop DSL Gateway

Key Features

AX3000 WiFi 6 with 2402 Mbps on 5 GHz and 574 Mbps on 2.4 GHz*1*4
VDSL2 35b: Supports 350Mbps DSL Access*2
VDSL2/ADSL2+/ADSL2/ADSL Compatibility
Centralized Cloud Management
IPSec/PPTP/L2TP/OpenVPN/WireGuard/GRE/SSL VPN
Load Balancing Between DSL and Ethernet WAN
Omada Mesh Technology*3
3 x RJ11 Ports (2 x FXS, 1 x DSL) & 5 x RJ45 Gigabit Ports & 2 x USB 3.0 Ports
Desktop/Wall Mounting
8.9 x 5.2 x 1.4 in (226 x 131.2 x 35 mm)

Specifications

Security

Access Control
Source/Destination IP Based Access Control

Filtering
Web Group Filtering*5
URL Filtering
Web Security*5

ARP Inspection
Sending GARP Packets
ARP Scanning*5
IP-MAC Binding

Attack Defense
TCP/UDP/ICMP Flood Defense
Block TCP Scan (Stealth FIN/Xmas/Null)
Block Ping from WAN


Hardware Features

Interface
3 x RJ11 Ports (2 x FXS, 1 x DSL)
5 x RJ45 Gigabit Ports (1x WAN/LAN Port, 4 xLAN Ports)
2 x USB 3.0 Ports

Button
Reset Button

Power Supply
12VDC / 3.3A Power Adapter

Wi-Fi Frequency & Signal Rate
2.4 GHz: 574 Mbps
5 GHz: 2402 Mbps (HE160)

Flash
256 MB NAND

DRAM
512 MB DDR4

Dimensions ( W x D x H )
8.9 x 5.2 x 1.4 in (226 x 131 x 35 mm) (Antenna dimensions are not included)

Antenna
2.4 GHz: 2 x 3 dBi dual-band detachable antennas
5 GHz: 3 x 4.5 dBi dual-band detachable antennas

Mounting
Desktop/Wall-mounting

Max Power Consumption
EU: 16.8W (with USB 3.0 connected), 11.8W (without USB 3.0 connected)

Performance

GRE
Unencrypted: 624.2Mbps
Encrypted: 301.5Mbps

WireGuard VPN
393.5Mbps

Concurrent Session
150,000

New Sessions /Second
5,100

NAT (Static IP)
937.2 Mbps / 936.1Mbps

NAT(DHCP)
945.8 Mbps / 940.6Mbps

NAT(PPPoE)
942.9 Mbps / 942.9Mbps

NAT (L2TP)
837.4 Mbps / 881.5Mbps

NAT (PPTP)
803.0 Mbps / 910.5 Mbps

IPsec VPN Throughput
ESP-SHA1-AES256: 646.9Mbps
ESP-SHA256-AES256: 642.8Mbps
ESP-SHA384-AES256: 648.9Mbps
ESP-SHA512-AES256: 658.4 Mbps

OpenVPN
129.3Mbps

L2TP VPN Throughput
Unencrypted: 1034.0 Mbps
Encrypted: 570.0 Mbps

PPTP VPN Throughput
Unencrypted: 1165.0 Mbps
Encrypted: 209.0 Mbps

SSL VPN Throughput
126.7Mbps
66 Byte Packet forwarding rate1,453,489 pps / 1,453,488 pps
1,518 Byte Packet forwarding rate81,274 pps / 91,275 pps

Wirless Features

Advanced Functions
Seamless Roaming
Mesh (with EAP that supports Mesh)
OFDMA
Beamforming
MU-MIMO
Wireless Encryption: WPA/WPA2/WPA3 Personal, WPA/WPA2/WPA3 Enterprise

Guest Network
Support

Basic Functions

WAN Connection Type
Static IP
Dynamic IP
PPPoE (supports MRU Configuration)
PPTP
L2TP

MAC Clone
Modify WAN Address

DHCP
DHCP Server
DHCPv6 PD Server (only in Standalone Mode)
DHCP Options Customization
DHCP Address Reservation
Multi-IP Interfaces
Multi-Net DHCP

IPv6
StaticIP / SLAAC / DHCPv6 / PPPoE / 6to4Tunnel / PassThrough / Non-Address mode

VLAN
802.1Q VLAN

IPTV
IGMP v2/v3 Proxy, Custom Mode, Bridge Mode

Advanced Functions

Advanced Routing
Static Routing
Policy Routing
RIP*5
OSPF*5

Bandwidth Control
IP-Based Bandwidth Control

Load Balance
Intelligent Load Balance
Application Optimized Routing
Link Backup(Timing, Failover)
Online Detection

NAT
One-to-One NAT
Multi-Net NAT
Virtual Server
Port Triggering*5
NAT-DMZ
FTP/H.323/SIP/IPSec/PPTP ALG
UPnP

Session Limit
IP-Based Session Limit
VPN

SSL VPN
50 Tunnels

IPsec VPN
100 IPSec VPN Tunnels
LAN-to-LAN, Client-to-LAN
Main, Aggressive Negotiation Mode
DES, 3DES, AES128, AES192, AES256 Encryption Algorithm
IPsec Failover
IKE v1/v2
MD5, SHA1, SHA2-384 and SHA2-512 Authentication Algorithm
NAT Traversal (NAT-T)
Dead Peer Detection (DPD)
Perfect Forward Secrecy (PFS)

PPTP VPN
PPTP VPN Server
PPTP VPN Client (10)*6
50 Tunnels
PPTP with MPPE Encryption

L2TP VPN
L2TP VPN Server
L2TP VPN Client (10)*6
50 Tunnels
L2TP over IPSec

OpenVPN
OpenVPN Server
OpenVPN Client (5)*6
55 OpenVPN Tunnels
"Certificate + Account" Mode
Full Mode

WireGuard VPN
20 Tunnels

Authentication

Web Authentication
No Authentication
Simple Password*6
Hotspot (Local User / Voucher*6 / SMS*6 / Radius*6)
External Radius Sever
External Portal Sever*6
LDAP

Management

Omada App
Yes

Centralized Management
Omada Cloud-Based Controller
Omada Hardware Controller
Omada Software Controller

Cloud Access
Yes. Require the use of Omada Cloud-Based Controller.

Service
Dynamic DNS (Dyndns, No-IP, Peanuthull, Comexe, DDNS Customization)

Maintenance
Web Management Interface
Remote Management
Export & Import Configuration
SNMP v1/v2c/v3
Diagnostics (Ping & Traceroute)*5
NTP Synchronize*5
Port Mirroring
CLI (only in Standalone Mode)
Syslog Support
TR-069 (data models of TR-098 and TR181 are supported)

Zero-Touch Provisioning
Yes. Require the use of Omada Cloud-Based Controller.

Management Features

Automatic Device Discovery
Intelligent Network Monitoring
Abnormal Event Warnings
Unified Configuration
Reboot Schedule
Captive Portal Configuration

Others

Certification
CE, RoHS

Package Contents
DR3650v
Power Adapter
Ethernet Cable
Phone Cable
Quick Installation Guide

System Requirements
Microsoft Windows 98SE, NT, 2000, XP, Vista or Windows 7/8/8.1/10/11
MAC OS, NetWare, UNIX or Linux

Environment
Operating Temperature: 0 °C to 40 °C (32 °F to 104 °F)
Storage Temperature: -40 °C to 70 °C (-40 °F to 158 °F)
Operating Humidity: 10% to 90% non-condensing
Storage Humidity: 5% to 90% non-condensing

Key Features

• Type: Router
• Speed: 3000Mbps
• PoE: No

Category: Networking

Manufacturer Code: DR3650V

EAN: 8885020626766

Weight (KG): 1.7
