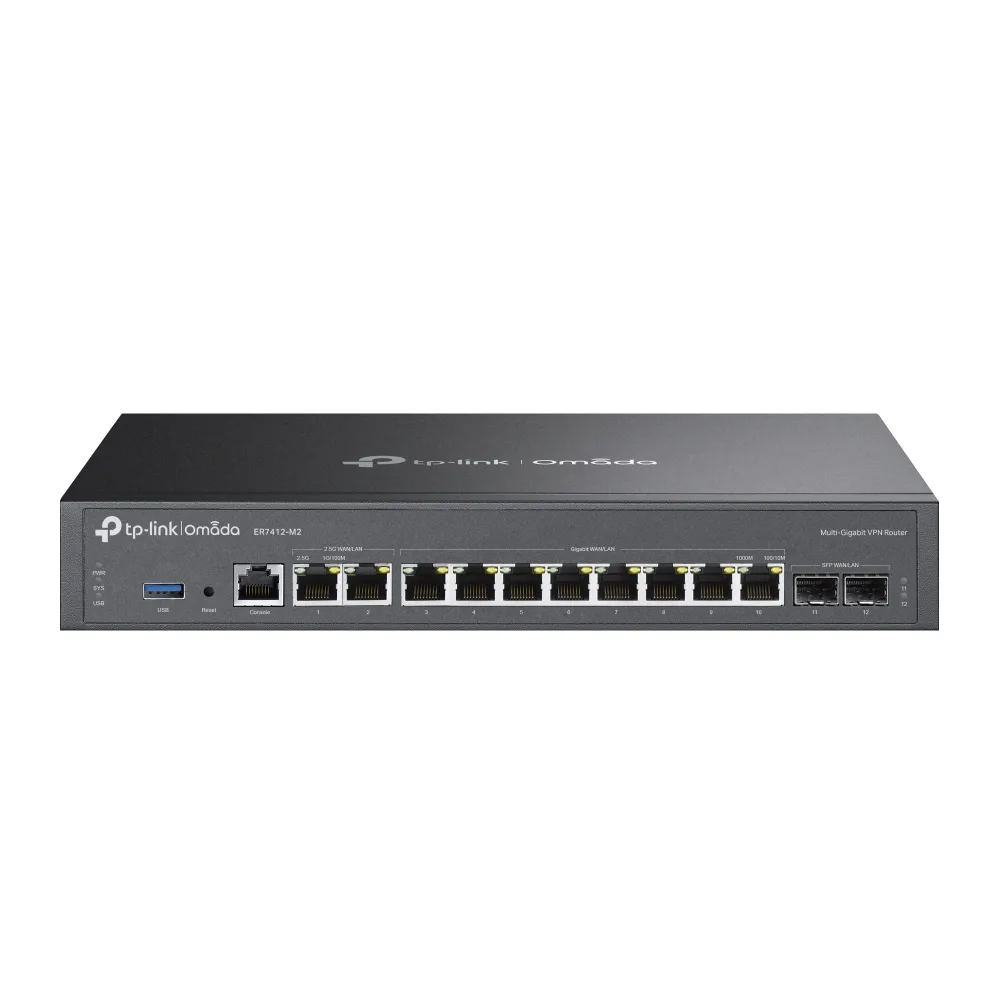

TP-Link Omada ER7412-M2 V1 - Router 12-port switch - 1GbE, 2.5GbE - WAN ports: 12 - rack-mountable

Description

Manufacturer Code: ER7412-M2

Overview

TP-Link Omada ER7412-M2 V1 - Router 12-port switch - 1GbE, 2.5GbE - WAN ports: 12 - rack-mountable is available through DCS Components. It sits within the Routers category.

Key product details

• Router 12-port switch
• 1GbE, 2.5GbE
• WAN ports: 12
• rack-mountable

Procurement and setup support

Available for quote while live availability remains in stock. DCS can help with procurement, compatibility checks, configuration planning, installation support and long-term managed IT lifecycle support.

EAN: 4895252505191

Specifications

WAN connection

Ethernet WAN	Yes
DSL WAN	No
SIM card slot	No
3G/4G USB modem compatibility	Yes
SFP WAN	Yes

Network

Networking standards	IEEE 802.1Q, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Ethernet interface type	2.5 Gigabit Ethernet, Gigabit Ethernet
Ethernet LAN data rates	10,100,1000,2500 Mbit/s
Static route	Yes
VLAN support	Yes

Management features

Web-based management	Yes
Universal Plug and Play (UPnP)	Yes
Reset button	Yes

Ports & interfaces

Ethernet LAN (RJ-45) ports	7
WAN/Ethernet LAN ports quantity	2
SFP module slots quantity	2
Number of console ports	1
USB ports quantity	1

Protocols

DMZ support	Yes
DHCP server	Yes

Security

Security algorithms	128-bit AES, 192-bit AES, 256-bit AES, DES, MD5, SHA-1, SHA-2, SHA-384, SHA-512
URL filtering	Yes
DoS attack prevention	Yes
ARP attack prevention	Yes
ICMP attack prevention	Yes
Access Control List (ACL)	Yes
Network address translation (NAT)	Yes
VPN tunnels quantity	80

Certificates

Compliance certificates	CE, Federal Communications Commission (FCC)

Packaging content

Cables included	AC, LAN (RJ-45)
Quick start guide	Yes

Features

Flash memory	128 MB
Internal memory	1024 MB
Internal memory type	DDR4
Windows operating systems supported	Windows 10, Windows 11, Windows 2000, Windows 7, Windows 8, Windows 8.1, Windows 98SE, Windows NT, Windows Vista, Windows XP
Mac operating systems supported	Yes
Linux operating systems supported	Yes

Design

Product colour	Black
Rack mounting	Yes

Power

Power consumption (max)	18.5 W
AC input voltage	100 - 240 V
AC input frequency	50/60 Hz

Operational conditions

Operating temperature (T-T)	0 - 45 °C
Storage temperature (T-T)	-40 - 70 °C
Operating relative humidity (H-H)	10 - 90%
Storage relative humidity (H-H)	5 - 90%

Weight & dimensions

Width	294 mm
Depth	180 mm
Height	44 mm
