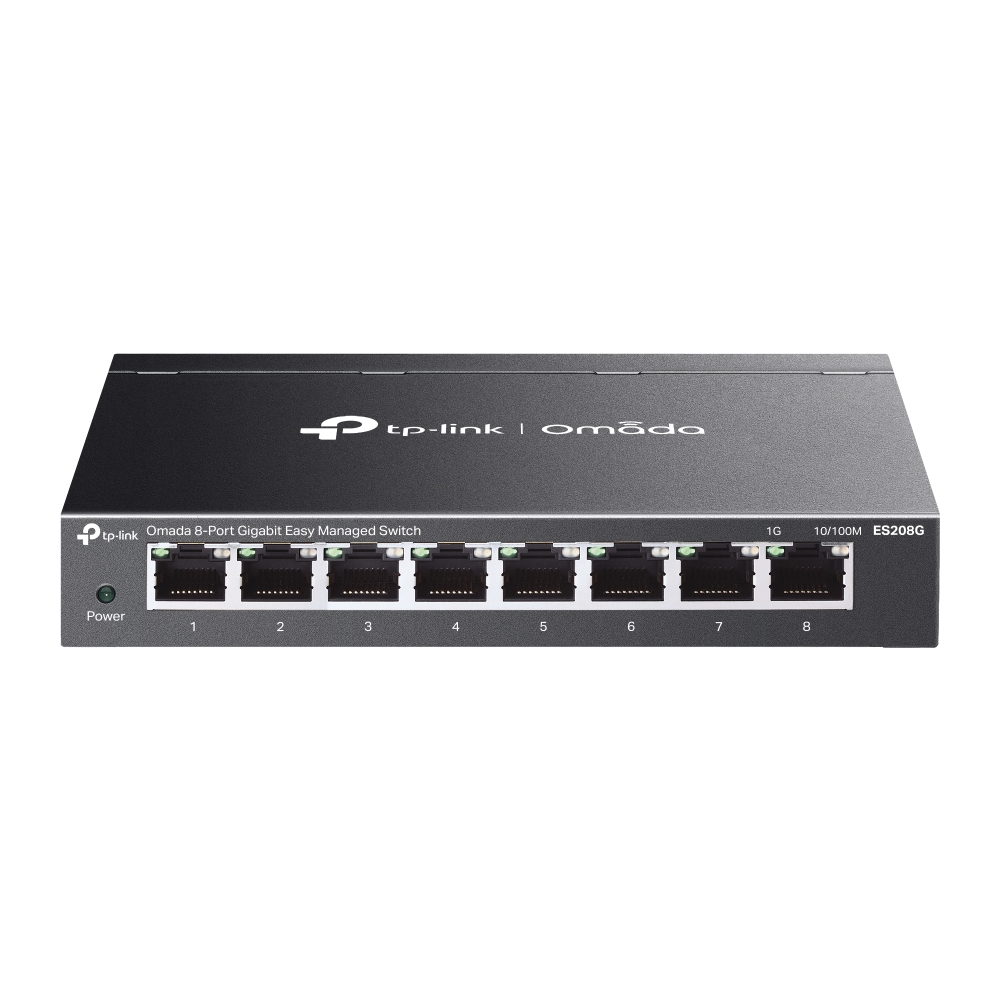

TP-Link Omada ES208G V1 - Switch - Managed - 8 x 10/100/1000Base-T - desktop, wall-mountable

Description

Manufacturer Code: ES208G

Overview

TP-Link Omada ES208G V1 - Switch - Managed - 8 x 10/100/1000Base-T - desktop, wall-mountable is available through DCS Components. It sits within the Managed Switches category.

Key product details

• Switch
• Managed
• 8 x 10/100/1000Base-T
• desktop, wall-mountable

Procurement and setup support

Available for quote while live availability remains in stock. DCS can help with procurement, compatibility checks, configuration planning, installation support and long-term managed IT lifecycle support.

EAN: 1210002600675

Specifications

Management features

Switch type	Managed
Switch layer	L2
Quality of Service (QoS) support	Yes
Web-based management	Yes
Cloud-managed	Yes
Unified static configuration	Yes

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity	8
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Gigabit Ethernet (copper) ports quantity	8

Network

Networking standards	IEEE 802.3ab, IEEE 802.1ab, IEEE 802.3i, IEEE 802.1p, IEEE 802.3x, IEEE 802.3at, IEEE 802.1Q
10G support	No
Zero Touch Provisioning (ZTP)	Yes
Port mirroring	Yes
Flow control support	Yes
Link aggregation	Yes
Auto MDI/MDI-X	Yes
Auto-negotiation	Yes
Fast leave	Yes
VLAN support	Yes
Virtual LAN features	MTU VLAN, Port-based VLAN, Tagged VLAN
Number of VLANs	32

Data transmission

Switching capacity	16 Gbit/s
Forwarding rate	11.9 Mpps
MAC address table	8000 entries
Store-and-forward	Yes
Jumbo frames support	Yes
Jumbo frames	15000
Packet buffer memory	4 MB

Security

DHCP features	DHCP client
IGMP snooping	Yes
Loop protection	Yes
Queue scheduling algorithms	Weighted Round Robin (WRR)

Design

Rack mounting	No
Stackable	No
Product colour	Black
LED indicators	Yes
Wall mountable	Yes

Performance

Flash memory	64 MB
Firmware upgradeable	Yes
Fanless	Yes
Mean time between failures (MTBF)	1141726 h

Power

Power source	DC
Power supply included	Yes
DC input voltage	5 V
Input current	0.6 A
Power consumption (max)	2.7 W
Surge protection	Yes
Surge protection voltage	6 kV

Power over Ethernet (PoE)

Power over Ethernet (PoE)	No

Operational conditions

Operating temperature (T-T)	-5 - 45 °C
Storage temperature (T-T)	-40 - 70 °C
Operating relative humidity (H-H)	10 - 90%
Storage relative humidity (H-H)	5 - 90%
Heat dissipation	9.09 BTU/h

Weight & dimensions

Width	158 mm
Depth	100.7 mm
Height	25.4 mm

Packaging content

User guide	Yes

Packaging data

AC adapter included	Yes
Package type	Box

Certificates

Compliance certificates	CE, Federal Communications Commission (FCC), RoHS
