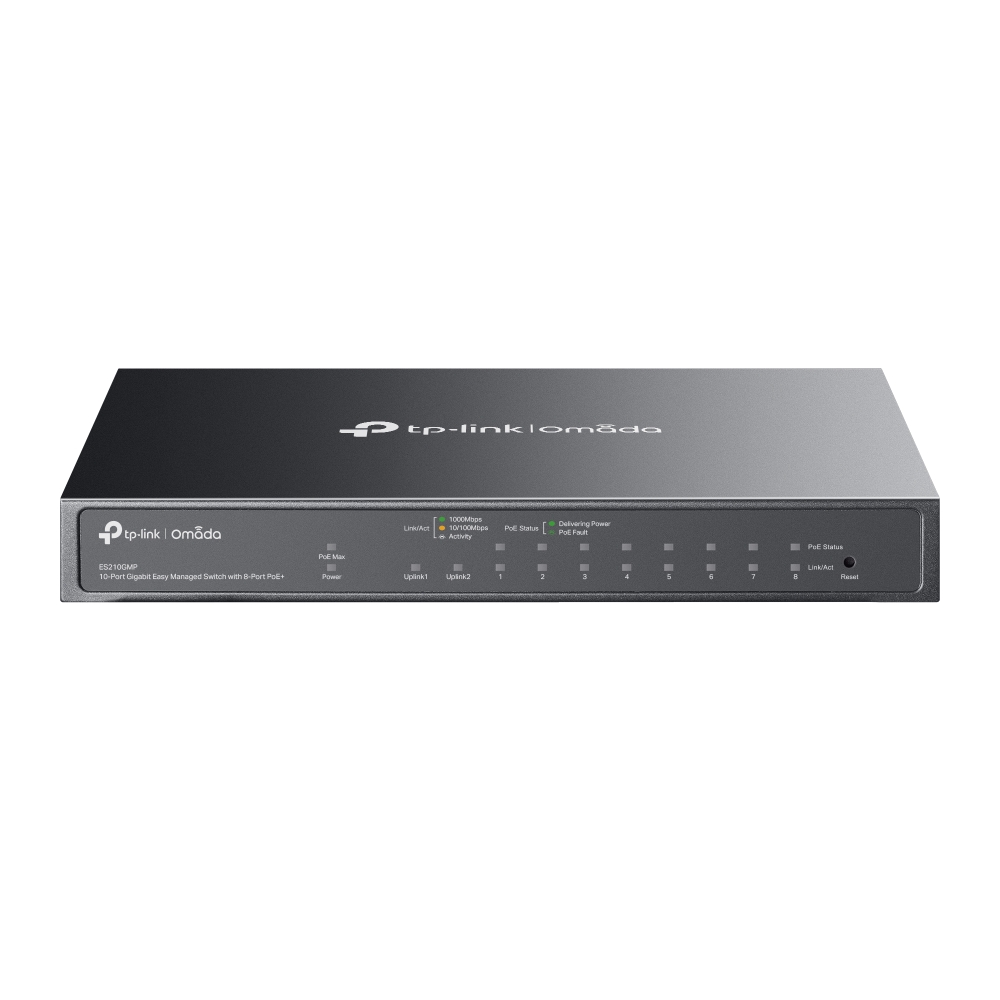

TP-Link Omada ES210GMP V1 - Switch - Managed - 8 x 10/100/1000 (PoE+) + 1 x 10/100/1000 + 1 x combo Gigabit SFP/RJ-45 (uplink) - desktop, wall-mountable - PoE+ (123 W)

Description

Manufacturer Code: ES210GMP

Overview

TP-Link Omada ES210GMP V1 - Switch - Managed - 8 x 10/100/1000 (PoE+) + 1 x 10/100/1000 + 1 x combo Gigabit SFP/RJ-45 (uplink) - desktop, wall-mountable - PoE+ (123 W) is available through DCS Components. It sits within the Managed Switches category.

Key product details

• Switch
• Managed
• 8 x 10/100/1000 (PoE+) + 1 x 10/100/1000 + 1 x combo Gigabit SFP/RJ-45 (uplink)
• desktop, wall-mountable
• PoE+ (123 W)

Procurement and setup support

Available for quote while live availability remains in stock. DCS can help with procurement, compatibility checks, configuration planning, installation support and long-term managed IT lifecycle support.

EAN: 8885020620962

Specifications

Management features

Switch type	Managed
Quality of Service (QoS) support	Yes
Cloud-managed	Yes

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity	10
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Combo SFP ports quantity	1

Network

Networking standards	IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3at, IEEE 802.3x
10G support	No
Port mirroring	Yes
Flow control support	Yes
Link aggregation	Yes
Auto MDI/MDI-X	Yes
Auto-negotiation	Yes
VLAN support	Yes
Virtual LAN features	MTU VLAN, Port-based VLAN, Tagged VLAN

Optical fiber

Transmission distance (max)	0.25 km

Data transmission

Switching capacity	20 Gbit/s
Forwarding rate	14.88 Mpps
MAC address table	8000 entries
Store-and-forward	Yes
Jumbo frames support	Yes
Jumbo frames	15
Packet buffer memory	4 MB

Security

DHCP features	DHCP client
IGMP snooping	Yes

Design

Product colour	Black
Reset button	Yes
Wall mountable	Yes

Performance

Fanless	Yes

Power

Power source	DC
Power supply included	Yes
DC input voltage	53.5 V
Input current	2.43 A

Power over Ethernet (PoE)

Power over Ethernet (PoE)	Yes
Power over Ethernet plus (PoE+) ports quantity	8
Power over Ethernet (PoE) power per port	30 W
Total Power over Ethernet (PoE) budget	123 W

Operational conditions

Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-40 - 70 °C
Operating relative humidity (H-H)	10 - 90%
Storage relative humidity (H-H)	5 - 90%

Weight & dimensions

Width	209 mm
Depth	126 mm
Height	26 mm

Packaging content

Cables included	AC
User guide	Yes

Packaging data

Package type	Box

Certificates

Compliance certificates	CE, Federal Communications Commission (FCC), RoHS
